Lowell Manufacturing RYPS-1A Specifications

  • Power Requirements

    117 VAC 60Hz, 3W

  • Relay Contact Type

    DPDT

  • Contact Rating

    5 Amps
    24VDC / 240VAC

  • Actuation Switch Type

    SPST

  • Actuation Switch Rating

    28 VDC, 35mA (min)

  • Aux. Power Output

    24 VDC
    250 mA (max)

  • Dimensions (LxWxH)

    5 x 3.28 x 1.69" (12.70 x 8.33 x 4.29cm)

  • Weight

    With Power Supply: 1.25 lbs (0.57kg)

About Lowell Manufacturing RYPS-1A

It is a robust and efficient RYPS-1A 1-DPDT Powered Relay Module, designed to provide seamless remote switching for a multitude of devices using low voltage switches. This high-quality relay module is perfect for scenarios that require the switching of multiple independent high current or high voltage circuits from a remote location, where only low voltage or low current wiring is feasible.

The module features a double-pole double-throw (DPDT) relay, activated by a single-pole single-throw (SPST) contact closure, offering reliable and user-friendly operation. Its compact chassis measures 5"L x 3.28"W x 1.688"H, complete with screw-mount holes for easy installation. The chassis sports a sleek black semi-gloss finish, adding a touch of sophistication to its durable design.

The RYPS-1A 1-DPDT Powered Relay Module is equipped with LED indicators for "Power" and "Relay On" statuses, providing clear and immediate visual feedback. It also features a 3-sided barrier strip with secure screw connections and wire clamps for added safety and convenience.

The package includes a UL Listed power supply (No. PS2405) with a 100-240 VAC input and a 24 VDC output. It also comes with four plug adaptors suitable for North America (NEMA 1-15), Central Europe (CEE 7/16), the U.K. (BS1363), and Australia/New Zealand (AS3112), along with a 6-ft. cord for flexible placement.

The equipment connects to the DPDT relay, which boasts a 5A rating for each contact, allowing it to handle a wide range of applications. It can accommodate up to 15 switches connected to the SPST contact closure, which activates the relay. The module also provides a 24VDC output for additional non-powered relays or auxiliary devices, with a maximum capacity of 250mA.

In essence, the RYPS-1A 1-DPDT Powered Relay Module is a versatile, reliable, and high-performing solution for all your remote switching needs.

Lowell Manufacturing RYPS-1A Features

  • High-quality RYPS-1A 1-DPDT Powered Relay Module for remote device control
  • Double-pole double-throw (DPDT) relay activated by single-pole single-throw (SPST) contact closure
  • Compact chassis with sleek black semi-gloss finish and screw-mount holes for easy installation
  • LED indicators for "Power" and "Relay On" for clear status updates
  • Includes UL Listed power supply with 100-240 VAC input and 24 VDC output
  • Versatile connection options with a 5A rating for each contact and a 24VDC output for additional devices

Key Features

  • High-quality RYPS-1A 1-DPDT Powered Relay Module for remote device control
  • Double-pole double-throw (DPDT) relay activated by single-pole single-throw (SPST) contact closure
  • Compact chassis with sleek black semi-gloss finish and screw-mount holes for easy installation
  • LED indicators for "Power" and "Relay On" for clear status updates
  • Includes UL Listed power supply with 100-240 VAC input and 24 VDC output

What's in the box:

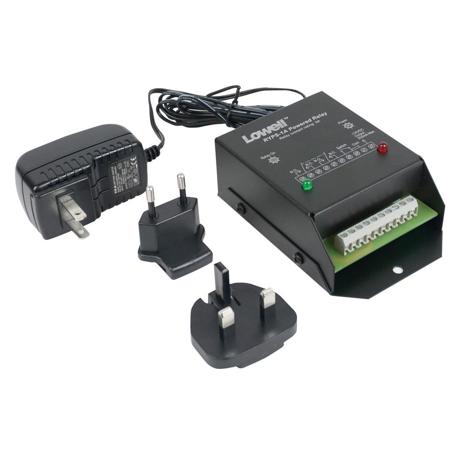

  • Lowell Manufacturing RYPS-1A 1-DPDT Powered Relay Module
  • Power Supply with Four Plug Adaptors
  • Lowell Manufacturing 1 Year Limited Warranty
