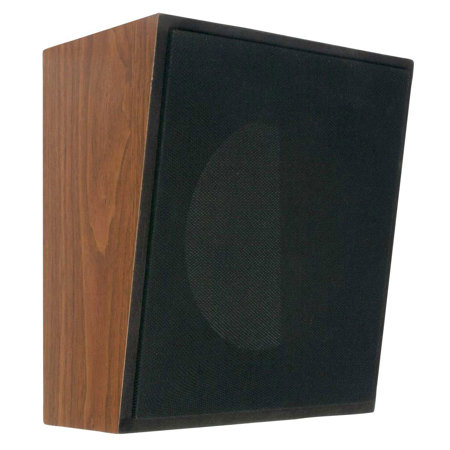

Lowell Manufacturing SL-810-72 8" 15W Surface-Mount Speaker with 5W 25/70V Transformer, Walnut

SKU: LWSL81072
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Lowell Manufacturing LT2-830-TM16-VB 2x2 Speaker System for Tile Ceilings
$360.80
undefined undefined: Picture 1 regular
Lowell Manufacturing IM12P-TS100-3SW Speaker System
$1,154.56
undefined undefined: Picture 1 regular
Lowell Manufacturing IM12Q-TS100-3SW Speaker System
$1,478.40
undefined undefined: Picture 1 regular
Lowell Manufacturing WB4T-4A30-T870 Speaker/Grille Assembly, Torsion Grille
$117.92
undefined undefined: Picture 1 regular
Lowell Manufacturing WB4-4A30-T870 Speaker/Grille Assembly, 4" Driver
$105.60
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lowell Manufacturing SL-810-72 Specifications

  • Driver

    810

  • Driver Size

    8" (203.20mm)

  • Driver Type

    Dual Cone

  • Ceramic Magnet

    10 oz (283.49g)

  • Frequency Response

    54Hz-11.6kHz (+/-6dB) and 50Hz-20kHz (+/-6.6dB)

  • Dispersion 2000Hz

    95 degrees conical (-6dB)

  • Voice Coil Impedance

    8 Ohms

  • Voice Coil Diameter

    1" (25.40mm)

  • Sensitivity (1W/1M)

    97.9dB Avg.

  • Depth

    2.84" (72.14mm)

  • Max. SPL

    109.7dB

  • Transformer

    70/25V

  • Transformer Taps

    0.25, 0.5, 1, 2, 5W

  • Grille

    Black Cloth

  • Mounting Style

    Rear hanger bracket

  • Volume Control

    No

  • Enclosure Material

    Particle board with walnut laminate finish

  • Dimensions

    Sloped Backbox (Top): 10.55 x 9.47 x 5.5" (267.97 x 240.54 x 139.70mm)

About Lowell Manufacturing SL-810-72

Ready-to-install speaker assembly for background music and paging in classrooms, offices and retail locations. Background music and paging.

Assembly Includes

Driver
8 in. 15W dual cone driver with 10 oz. ceramic magnet

Transformer
25V/70V with taps at .25, .5, 1, 2, 5W

Enclosure
10.55 in. x 9.47 in. x 5.5 in. at top (3.63 in. at base). Particle board with walnut laminate finish. Sloped front.

Grille
Black cloth

Mounting & Installation Aids
Rear hanger bracket with keyhole mount on top edge and .354 in. diameter opening with black gasket on bottom.

System Specifications
Frequency Response 54Hz-11.6kHz (+/-6dB) and 50Hz-20kHz (+/-6.6dB), Average Sensitivity 97.9dB (1W/1M), Dispersion 95 degrees conical.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lowell Manufacturing SL-810-72 8 " 15W Surface-Mount Speaker with 5W 25/70V Transformer
  • Grille
  • Lowell Manufacturing 1 Year Warranty
