Lexicon IO22 2x2 USB 2.0 Desktop Recording Studio
See all Lexicon items

Lexicon IO22 2x2 USB 2.0 Desktop Recording Studio, MIDI Input/Output, 24-bit Converters

SKU: LXCIO22

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Lexicon IO22 Specifications

  • Mic Preamps

    2

  • Converters

    24-bit

  • Sample Rates

    44.1, 48, 88.4 and 96kHz

  • Inputs

    2 x Combo XLR female
    1 x 1/4" TS phone Instrument

  • Input Impedance

    Microphone: 3kOhms balanced
    Line: 20kOhms balanced, 13kOhms unbalanced
    Instrument: 1MOhms

  • Maximum Input Level

    Microphone: +21dBu at minimum gain
    Line: +32dBu
    Instrument: +13dBu

  • Gain

    Microphone: +58dB

  • Outputs

    2 x 1/4" TRS phone
    1 x 1/4" TRS phone Headphone

  • Output Impedance

    32Ohms balanced, 16Ohms unbalanced

  • Maximum Output Level

    Line: +18dBu
    Headphone: 350mW/channel @ 50Ohms

  • MIDI

    2 x 5-pin DIN I/O

  • Dynamic Range

    A/D (24-bit): 108dB typical, A-weighted, 20Hz to 20kHz (44.1kHz sample rate)
    D/A (24-bit): 110dB typical, A-weighted, 20Hz to 20kHz A/D/A (24-bit): 102dB typical, A-weighted, 20Hz to 20kHz

  • THD + N

    Microphone: <0.006%, 20Hz to 20kHz (microphone input to main output) 0dBu input level, input knobs at 11 o'clock - <0.003%, 1kHz, +5dBu input level, input knobs at minimum, output knob at maximum
    Line Input: <0.004%, 20Hz to 20kHz (line input to main output) 0dBu input level, input knob at 12 o'clock, output knob at maximum
    Instrument Input: <0.004%, 20Hz to 20kHz, 0dBu input level, input knob at 10 o'clock, output knob at maximum

  • S/N Ratio

    Microphone: 97dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Input: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Instrument Input: 89dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted
    Line Output: 109dB, 1kHz, 22kHz BW, A-weighted
    Headphone: 90dB, 1kHz, maximum gain, 20kHz BW, unweighted

  • Noise

    Microphone EIN: -125dBu @ 58dB gain typical (150Ohms source) -129dBu @ 58dB gain typical A-weighted (150Ohms)

  • Frequency Response

    Microphone: 20Hz to 22kHz, +/-0.25dB, unity gain
    Line Input: 20Hz to 22kHz, +/-0.25dB, unity gain
    Instrument Input: 20Hz to 22kHz, +/-0.25dB, unity gain
    Line Output: 20Hz to 22kHz, +/-0.25dB
    Headphone: 20Hz to 22kHz, +/-0.5dB, maximum gain

  • Phantom Power

    48V

  • Controls

    Phones Level
    Trim
    48V
    Stereo
    Output Level
    Monitor Mix

  • Power

    9 VDC, 1.3A external power supply (included)

  • Compatibility

    ASIO, Core Audio, WDM, MME and multi-client drivers

  • System Requirements

    Mac
    Intel multi-core system (required)
    OS X 10.4.9 or later
    1GB RAM
    USB 2.0 Port
    1024 x 768 pixels display resolution
    DVD-ROM drive
    Internet connection
    PC
    1.8GHz CPU or faster
    Windows XP SP2, Vista 32, Windows 7
    1GB RAM
    USB 2.0 Port
    DVD-ROM drive
    Internet connection

  • Dimensions (W x D x H)

    12 x 3.75 x 4" (305 x 95 x 102mm)

  • Weight

    2.4 lb (1.1kg)

  • UPC Code

    691991500312

About Lexicon IO22

Brilliantly designed, the Lexicon IO22 2x2 USB 2.0 Desktop Recording Studio is compatible with any DAW, including Pro Tools 9 and 10. Now, this innovative hardware design meets the software capability of any creative passion. Featuring newly designed dbx 60V high-voltage, ultra-low noise mic preamps on both channels, the IO22 is more than equipped to provide professional recordings that keep your music sounding at its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D - D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

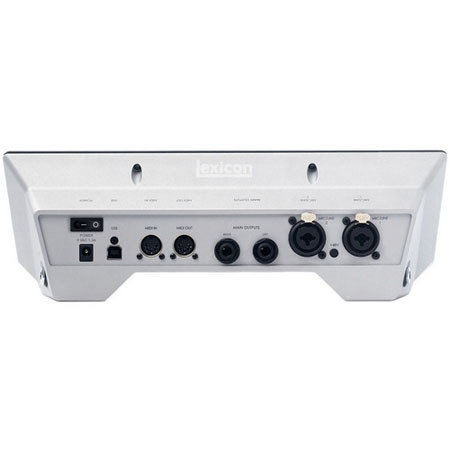

The IO22 can record two tracks at once and includes 2 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, a hi-Z instrument input, a 1/4" high power headphone output and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

Lexicon IO22 Features

  • USB 2.0 Desktop Recording Studio
  • 44.1kHz to 96kHz sample rates, 24-bit resolution
  • Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
  • dbx 60V high-voltage, ultra-low noise microphone preamps
  • Superior sonic performance
  • 2 analog combi-jacks for mic/line inputs
  • 2 analog 1/4" TRS balanced outputs
  • Zero latency monitoring
  • Low latency ASIO drivers
  • Streamlined monitor form factor puts all recording controls at your fingertips
  • Separate level meters and gain control per channel
  • 1 side panel 1/4" instrument input
  • 1 side panel headphone output with dedicated volume adjustment
  • MIDI in and out

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lexicon IO22 2x2 USB 2.0 Desktop Recording Studio
  • External Power Supply
  • USB Cable
  • Software DVD
  • Lexicon Warranty
