Lex 400 Amp 3 Phase Cam-Type Splitter with Duplex Receptacles Specifications

  • Rating

    400 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC

  • Environmental Rating

    NEMA 3R Weather Resistant

  • Input

    One set of 5 x 16 Series Cam-type color-coded panel mount inlets

  • Output

    4 x sets of 5 x 16 Series Cam-type color coded panel mount outlets
    2 x NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles

  • Feed Thru

    No

  • Overcurrent Protection

    2 x 20 Amp, Single Pole branch-rated circuit breakers
    4 x 100 Amp, Single Pole branch-rated circuit breakers

  • Dimensions (LxWxH)

    15x18x22" / 38.1x45.72x55.88cm

  • Weight

    75lbs / 34.01kg

Related Articles & Videos

About Lex 400 Amp 3 Phase Cam-Type Splitter with Duplex Receptacles

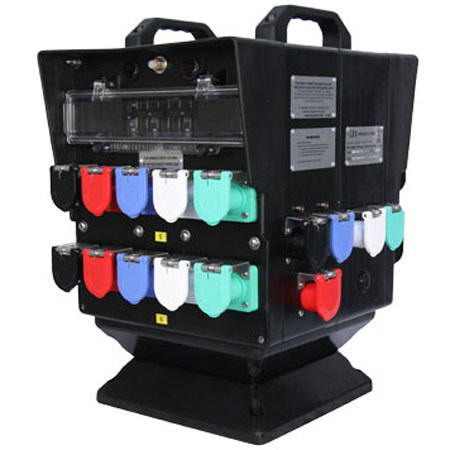

The Lex 400 Amp 3 Phase Cam-Type Splitter with Duplex Receptacles is a Hammerhead portable power distribution box breaks 400 Amp, 3 Phase, 4 Pole, 5 Wire power into four sets of 100 Amp, 3 Phase, 4 Pole, 5 Wire over-current protected circuits to power shelters, live events and other portable distribution units. The two NEMA 5-20, 20 Amp duplex receptacles provide convenient power for lights, fans and light tools.

Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion. The breakers mounted under hinged window for easy access and enhanced safety. It is compact for convenient portability and elevated base keeps receptacles above ground level.
