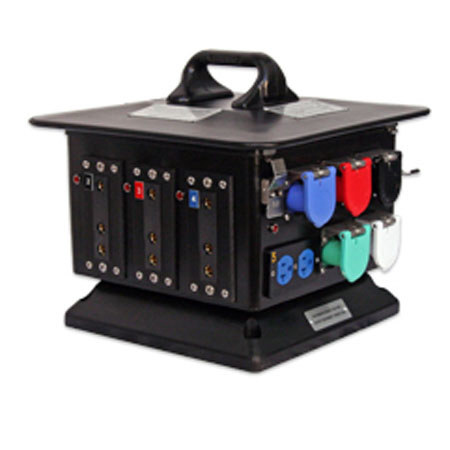

Lex 200 Amp 3 Phase Motion Picture Box
See all Lex items

Lex 200 Amp 3 Phase Motion Picture Box, Feed Thru

SKU: LXTB3P200A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lex 200 Amp 3 Phase Motion Picture Box Specifications

  • Rating

    200 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC

  • Environmental Rating

    NEMA 1 Indoor

  • Input

    One set of 5 x Series Cam-type color-coded panel mount inlets

  • Output

    6 x 100 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
    2 x NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles

  • Feed Thru

    No

  • Overcurrent Protection

    6 x 100 Amp, Single Pole branch-rated circuit breakers
    2 x 20 Amp, Single Pole branch-rated circuit breakers

  • Enclosure Type

    Pagoda

  • Dimensions (LxWxH)

    11.5x11.5x14" / 29.21x29.21x35.56cm

  • Weight

    42lbs / 19.05kg

About Lex 200 Amp 3 Phase Motion Picture Box

The Lex 200 Amp 3 Phase Motion Picture Box (Feed Thru) provides 100 Amp stage pin receptacles for high power lighting effects, or to distribute power further downstream. The feed thru feature allows multiple boxes to be placed along the same feed. Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion.

The breakers are mounted under hinged lid for enhanced safety. This Lex 200 Amp picture box is stackable and compact for easy storage and convenient portability. Its elevated base keeps receptacles above ground level. The reverse neutral and ground options prevent mismating for enhanced safety.
