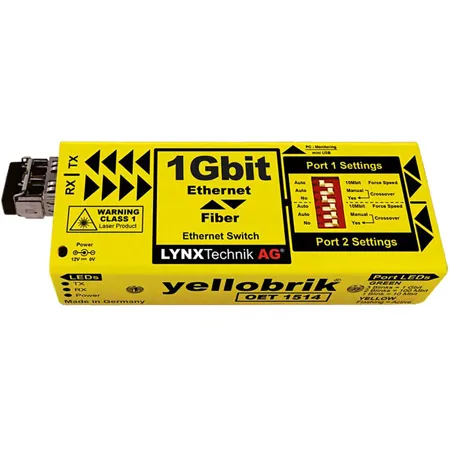

Lynx Technik AG yellobrik OET 1514 1GB Ethernet to SMF Fiber Transceiver Switch
See all Lynx Technik AG items

Lynx Technik AG yellobrik OET 1514 1GB Ethernet to Single Mode Fiber Optic Transceiver Switch

SKU: LTOET1514 MFR: OET 1514
Be the first to review this itemAsk a Question
$542.45
OR
$91/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert 1GB Ethernet to single-mode fiber for extended network reach up to 6.2 miles.
  • Experience reliable, high-speed 10/100/1000 BaseTX auto-detect Ethernet connectivity with ease.
  • Compact and lightweight design (4.4 oz) ensures portability and convenient setup for professionals.
  • Benefit from automatic crossover detection, simplifying your network installations and saving time.
  • Enjoy robust performance with a wide 7-24V DC power input range, ideal for diverse environments.
  • Trust in German engineering from Lynx Technik AG for exceptional quality and durable operation.
See More Product Details
Temporarily On Backorder?Expected Availability: 05/2026
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$69.99
3-Year Adorama Protect$94.99
4-Year Adorama Protect$119.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lynx Technik AG yellobrik OET 1514 Specifications

  • Color

    Yellow

  • Ethernet (electrical)

    2x Ethernet ports, RJ 45 Connectors
    10 BaseTUTP category 3, 4 or 5 cable up to 328' (100m) (2 pairs)
    100 BaseTXUTP category 5 cable up to 328' (100m) (2 pairs)
    1000 BaseTXUTP category 5 cable up to 328' (4 pairs)
    Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
    Automatic crossover detection or force manually for each port (selectable)
    Port speed / activity LED indication (next to Ethernet port)

  • Ethernet Optical I/O

    EEE 802.3z: 1000BASE-X Gbit/s Ethernet over Fiber at 1Gbit/s 125 MB/s
    1x Fiber Optic Output: Duplex (Singlemode) LC/PC connection
    TX Wavelength: 1310nm
    TX Optical power: -3dBm

    1x Fiber Optic Input:
    RX Wavelength: 1270-1610nm
    RX Sensitivity: -23dBm

  • Maximum distance

    6.2miles (10km)

  • Power

    +12V DC @ 1.7W nominal - (supports 7 - 24V DC input range)
    Power Present LED on side of module

  • Operational Temperature Range

    Ambient: 41 Degree F to 104 Degree F (5 Degree C to 40 Degree C)
    90% Humidity (non-condensing)

  • Country of Origin

    Germany

  • Dimensions

    Including connectors: 5.51 x 1.65 x 0.86" (140 x 42 x 22mm)

  • Weight

    4.4 oz (125g)

  • UPC Code

    4250479329447

About Lynx Technik AG yellobrik OET 1514

The OET 1514 is a compact 3 port unmanaged Ethernet switch, designed to extend the reach of electrical Ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s fiber optic transceiver speed.

When paired with another OET 1514 at the receiving end (using two fiber links) you have a cost effective Ethernet extender system for distances up to 10km providing a stable, high speed 1Gbit/s error free optical connection between locations.

The OET 1514 has two standard RJ45 electrical Ethernet ports plus fiber I/O and functions as a 3 port Ethernet switch. For legacy system use: each electrical Ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.

Lynx Technik AG yellobrik OET 1514 Features

  • Supports standard Ethernet inputs up to 1 Gbit/s
  • 3 port Ethernet switch (1 fiber, 2 electrical)
  • Auto (10/100/1000) port speed detection
  • Manually force 10Mbit/s electrical speed (if needed)
  • Fiber transceiver speed always 1 Gbit/s
  • Auto or manual electrical crossover selection
  • Distances up to 6.2 miles (10km) over fiber

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert 1GB Ethernet to single-mode fiber for extended network reach up to 6.2 miles.
  • Experience reliable, high-speed 10/100/1000 BaseTX auto-detect Ethernet connectivity with ease.
  • Compact and lightweight design (4.4 oz) ensures portability and convenient setup for professionals.
  • Benefit from automatic crossover detection, simplifying your network installations and saving time.
  • Enjoy robust performance with a wide 7-24V DC power input range, ideal for diverse environments.
  • Trust in German engineering from Lynx Technik AG for exceptional quality and durable operation.

What's in the box:

  • Lynx Technik AG yellobrik OET 1514 1GB Ethernet to Fiber Optic Transceiver Switch
  • AC Power Supply
  • SFP Module
  • Lynx Technik AG 3 Year Limited Warranty
