Lumedyne XSMX Ultra-Fast High Speed Booster Module

The XSMX is a very special High Speed Module that makes the Lumedyne flash system recycle much faster. It plugs between the Extra Large Battery or a few other high power options and Pack or the rest of the system. It creates a much-much faster recycle time at any power setting. This unit draws so many amps only the Batteries, etc. that have the extra power connections can work with this Speed Module. Any of the eligible Packs may be used and they won't get brighter. They will recycle super fast from those limited power options.

The XSMX Extra-Extra Fast High Speed Module is designed to speed up the recycling for a Lumedyne flash system for crazy fast speeds. It attaches between the Power Pack and Extra Large Batteries or a few other options in order to generate faster recycling times.

There are no switches, if it is between the Pack and Battery it automatically makes the system recycle faster. High Speed Modules do not make the system brighter, Boosters do that. However, sometimes when Boosters are used to make a system brighter and then that makes the recycle times get much longer. Then, adding a High Speed Module next to the Battery in the stack makes a huge difference cutting that time down faster.

If you want that speed to be as fast as possible, you'll need a very big battery to deliver that amount of current like our Extra Large Battery BXLG. Another power option is the BC12 Vehicle Battery Compartment which also has the extra connection sockets needed. Even with the Extra Large Batteries you should expect about 50% fewer flashes per charge when you recycle at these speeds.

For AC power, ONLY the AC Power Base XAC? will have the extra connections and Power to deliver with this monster speed module. It will not even be able to reach 100% of the potential speed of the very big battery options.

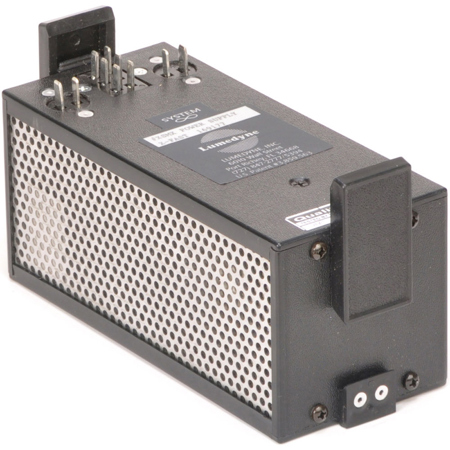

It weighs less than three pounds is and about three inches tall with metal screen sides to allow it to continuously recycle at very high speed without it overheating. Please note the comment about flashtubes below.

Because the XSMX adds 56 amps of recycling power it is more than five times faster than the speed of the #065 Pack with it -s 7 amp draw. The #065X, Packs and the #067X Packs (both Pack # styles with letters X, M, L, Q, or T all have 14 amps) all get more than three times as fast when the XSMX is used. The #065Z or #067Z Packs recycle at 28 amps like our current Extra Fast recycle rate of the Next Generation and Signature Series will be triple speed when the XSMX is used.
