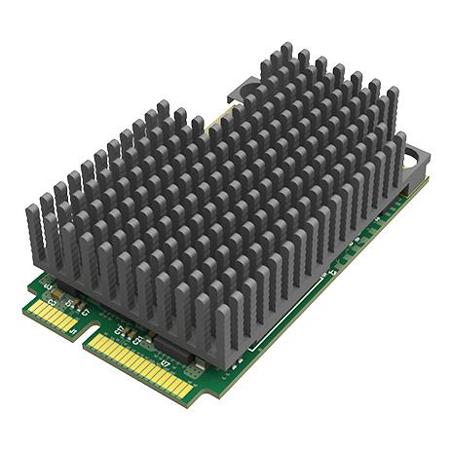

Magewell Pro Capture Mini HDMI Card with 11mm Heat Sink

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
OS X 10.9-10.11
macOS 10.12

Windows:
DirectShow
DirectKS
Wave API/DirectSound/WASAPI

Linux:
V4L2
ALSA

VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

JST SHD 20pin connector
DVI 1.0
HDMI 1.4a

PCIe Gen2 x1

Support for input video resolutions up to 2048x2160 pixels

225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams

Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Support for capture image resolutions up to 2048x2160 pixels
Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions - above 1280x1024 - by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920x1080 = 80fps. )
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12

Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Pro Capture SDK for DirectKS

Two video processing pipelines with 180Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio

Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats

Support for Limited or Full quantization range
Support for Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion
Video OSD composition
Support for PNG OSD image (up to 2048x2160)
Support for dynamic loading of RGBA OSD image via SDK

Support for multiple cards plugged to one system

Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Latency of 64 video lines
Partial notification mode in SDK

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

400MB/s per channel DMA bandwidth in PCIe 2.0 system
200MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above

Mini PCIe Add-on Card
30mm x 51mm

High Performance Firmware
Max current at 3.3V: 0.99 A
Max power consumption: 3.24 W

Low Power Consumption Firmware
Max current at 3.3V: 0.83 A
Max power consumption: 2.7 W

0 to 40 deg. C (32 to 104 deg. F)

-20 to 70 deg. C (-4 to 158 deg. F)

5% to 90% non-condensing

8143950200402
