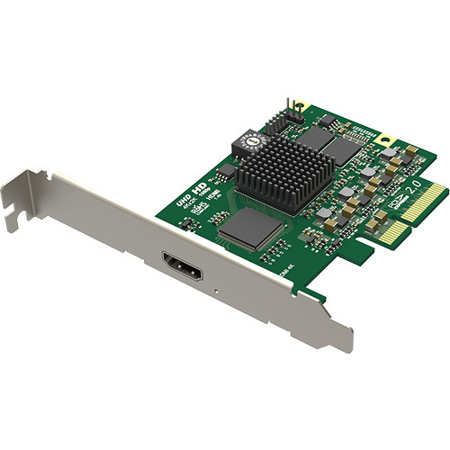

Name: Magewell Pro Capture HDMI 4K One Channel Capture Card
Brand: Magewell
SKU: MA11120
Price: 529.00 USD
Availability: Discontinued

Magewell Pro Capture HDMI 4K One Channel Capture Card

Magewell Pro Capture HDMI 4K

Magewell

Adorama

Video

Wireless & Live Streaming

Video Capture & Converters

Video Capture

Magewell Video Capture

Magewell Pro Capture HDMI 4K

Buy: Magewell Pro Capture HDMI 4K One Channel Capture Card Interface: PCIe, UltraHD 4K, Operating System: Macintosh, PC/Windows

HDMI Specific Features: &#149; 297MHz HDMI receiver &#149; Adaptive HDMI equalizer &#149; Support for customized EDID &#149; Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames &#149; Full colorimetry support &#149; Support for 8-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 297MHz &#149; Support for 12-bit signals that use YUV 4:2:2 color sampling at pixel rate no more than 297MHz &#149; Support for 10/12-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 170MHz &#149; Support for extraction of audio formation information & channel status data &#149; Support for extraction of video timing information &#149; Support for extraction of 3D format information &#149; Support for extraction of Sony/Canon DSLR time code &#149; Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D modeVideo Processing Features: &#149; Two video processing pipelines with -360Mpixels/s processing bandwidth for each one &#149; Full 10-bit video processing &#149; Video cropping &#149; Video scaling &#149; Video de-interlacing: Weave,Blend top & bottom field,Top field only,Bottom field only &#149; Video aspect ratio conversion: Auto or manual selection of input aspect ratio,Auto or manual selection of capture aspect ratio,Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) &#149; Video color format conversion: Auto or manual selection of input color format & quantization range,Auto or manual selection of capture color format, quantization range & saturation range,Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats,Support for Limited or Full quantization range,Support for Limited, Full & 'Extended gamut' saturation range &#149; Video frame rate conversion &#149; Video OSD composition: Support for PNG OSD image (up to 4096 x2160),Support for dynamic loading of RGBA OSD image via SDK

Magewell Pro Capture HDMI 4K One Channel Capture Card
