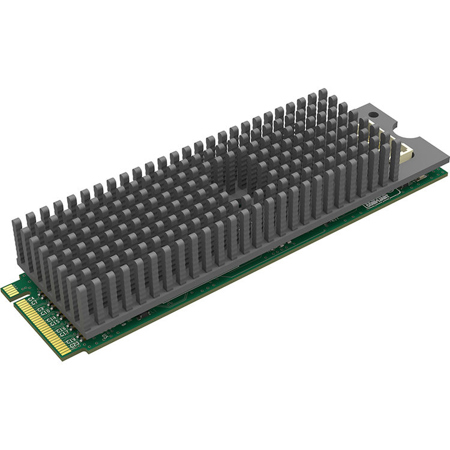

Magewell Eco Capture HDMI 4K M.2 Card

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2,support x86,x64 & ARM architecture)

Windows
DirectShow
DirectKS
Wave API/DirectSound/WASAPI

Linux
V4L2
ALSA

VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

JST SHD 20-Pin socket
DVI-D 1.0
HDMI 1.4

M.2 2280 Type M (PCIe Gen2 x4)

Support for input video resolutions up to 4096x2160 pixels

297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for RGB/YUV 4: 4: 4 8-bit format signals with a pixel frequency of no more than 297MHz
Support for YUV 4:2:2 12-bit format signals with a pixel frequency of no more than 297MHz
Support for RGB/YUV 4:4:4 10/12-bit format signals with a pixel frequency of no more than 170MHz

Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via Magewell Capture SDK for DirectKS

Video processing pipeline with 360Mpixels/s processing bandwidth
8-bit 4:4:4 video processing
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion

Support for multiple cards plugged to one system
On-board dip switch to set card number with 16 positions
System hardware device tree will display "01: Eco Capture HDMI 4K M.2" when dip switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the dip switch)

Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

1200MB/s per channel DMA bandwidth in PCIe 2.x system
800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

Magewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above

Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed

M.2 2280 standard size

Max current at 3.3V: 1.12 A
Max power consumption: 3.75 W

0 to 40 deg. C (32 to 104 deg. F)

-20 to 70 deg. C (-4 to 158 deg. F)

5% to 90% non-condensing

0814395020983
