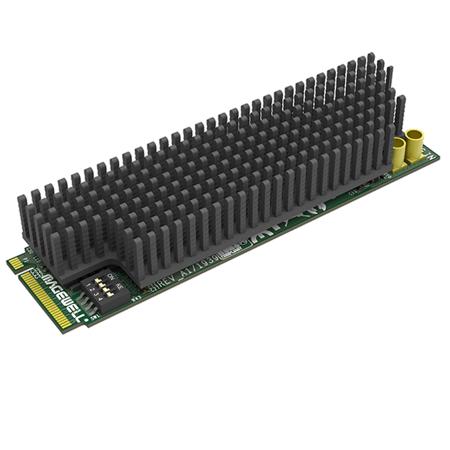

Magewell Eco Capture 1-Channel SDI 4K Plus M.2 Capture Card

Windows:
Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above

Linux (support x86, x64 & ARM architecture)
Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
CentOS 6.5/7 (x86 & x64)
Fedora 25/26/27 (x86 & x64)
Red hat 6.5 and above (x86 & x64)
Other Linux OS with kernel version 2.6.35 and above

Windows:
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)

Linux: Ubuntu 12.04/14.04/16.04 (x86 & x64)
Ubuntu 17.04/17.10/18.04 (x64)
CentOS 6.5/7.2 (x86 & x64)
Fedora 25/26 (x64)
Red hat 6.5 (x86 & x64)

Windows:
DirectShow
DirectKS
Wave API/DirectSound/WASAPI

Linux:
V4L2
ALSA

VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

MMCX: SD/HD/3G/6G/12G SDI

MMCX: SD/HD/3G/6G/12G SDI

M.2 2280 Type M (PCIe Gen2 x4)

Support for input video resolutions up to 4096x2160 pixels

Integrated cable equalizer extending the cable length as follows:
Up to 430m for SD-SDI signals
Up to 200m for HD-SDI signals
Up to 110m for 3G-SDI signals
Up to 50m for 6G-SDI signals
Up to 30m for 12G-SDI signals

Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G standards
Support for 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Support for Closed Caption via SDK

Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth.)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via SDK

Video processing pipelines with -720Mpixels/s processing bandwidth
10-bit 4:4:4 video processing
Video scaling
Video de-interlacing:
Weave
Blend top & bottom field

Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion

Support for multiple cards plugged to one system
On-board dip switch to set card number with 16 positions
System hardware device tree will display "01: Eco Capture SDI 4K Plus M.2" when dip switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the dip switch)

Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

1600MB/s per channel DMA bandwidth in PCIe 2.x system
800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance

All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

Status LEDs indicate the working state of each channel:
Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failed

M.2 2280 standard size

Max current at 3.3V: - 2.17 A
Max power consumption: - 7.16 W

Operating temperature: 32 to 104 deg F (0 to 40 deg C)
Storage temperature: -4 to 158 deg F (-20 to 70 deg C)
Relative Humidity: 5% to 90% non-condensing
