19% Off

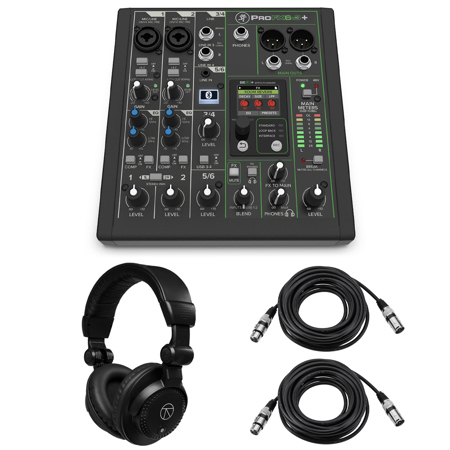

Mackie ProFX6v3+ 6-Channel Bluetooth Analog Mixer with Enhanced FX, Bundle with TAPH100 Headphones and 2x 25' 3-Pin XLR Microphone Cable

SKU: MA2056097A MFR: PROFX6V3+ A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Mackie ProFX6v3+ 6-Ch Analog Mixer with Enhanced FX, USB Recording and Bluetooth
    Mackie ProFX6v3+ 6-Ch Analog Mixer with Enhanced FX, USB Recording and Bluetooth
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Record studio-quality audio with 2x4 192kHz 24-Bit USB recording modes for versatile projects.
  • Enhance your sound with 12 customizable internal FX processors for professional-grade mixes.
  • Seamlessly integrate with your DAW using flexible recording modes including standard and loopback.
  • Enjoy crystal-clear sound quality with two Mackie Onyx mic preamps and 2-band channel EQ.
  • Connect effortlessly via USB-C and Bluetooth, perfect for live streaming and content creation.
  • Its compact and durable design makes this 6-channel analog mixer ideal for portable setups.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-05-29T17:22:19

Rated 5 out of 5

SUPER

EXCELENTE PRODUCTO. PARA GRABAR Y TRANSMISION EN VIVO FACIL DE LLEVARLO

JEREMIAS G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Mackie ProFXv3+ Specifications

Mixer
  • Number of Analog Input Channels

    6

  • Number of Mic Preamps

    2

  • Analog Output Channels

    2x Stereo Master Output
    1x Stereo Headphone Output

  • Mix Routing

    Stereo Main Mix

  • Faders & Level Adjustment

    No

  • Meters

    Main Meter: 2x 8-Segment LED

  • Meter Range

    Main Meter: -24 dB to +14 dB Plus Peak/Clip

Signal Processing

Jump to...
  • Gain/Trim Range

    -20 dB to +40 dB

  • EQ Parameters

    Low: +/-15 dB at 80 Hz
    High: +/-15 dB at 12 kHz

  • Filters

    High-Pass: 100 Hz, 18 dB/Octave

  • Built-In Effects

    12x Preset (Factory)

Digital Audio

Jump to...
  • Sample Rates

    Up to 192 kHz

  • Bit Depth

    24-Bit

  • DSP

    No

Performance

Jump to...
  • Frequency Response

    Mic Input to Output: 20 Hz to 30 kHz +0/-1 dB (Unity Gain)

  • Max Input Level

    +22 dB

  • Output Level

    Main Output: +28 dBu at Max Gain
    All Other Output: +22 dBu at Max Gain

  • I/O Impedance

    Mic Input: 3.8 Kilohms
    Insert Return: 10 Kilohms
    Line Input: >= 20 Kilohms
    Headphone Output: 25 Ohms

    Main Output:
    120 Ohms (Unbalanced)
    240 Ohms (Balanced)

  • Crosstalk

    Adjacent Inputs: -90 dB at 1 kHz
    Input to Output: -80 dB at 1 kHz
    Fader Off: -75 dB at 1 kHz
    Muted: -90 dB at 1 kHz

  • CMRR

    70 dB at Max Gain (1 kHz, Mic In to Main Out)

  • EIN

    -126 dBu at Max Gain (150-Ohm Input)

  • Noise Floor

    All Outputs:
    -95 dBu (Master Level at -Infinite, Channel Levels at -Infinite)
    -80 dBu (Master Level at Unity, One Channel Level at Unity)

  • THD+N

    Mic Input to Main Output: < 0.03% (+4 dBu)

Connectivity

Jump to...
  • Analog Inputs

    2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
    2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
    1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input

  • Analog Outputs

    2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
    2x 1/4" TRS Balanced/Unbalanced Main Output (1 Stereo Pair)
    1x 1/4" TRS Unbalanced Stereo Headphone Output

  • Phantom Power

    +48 V, Selectable On/Off (Applied to All Inputs)

  • USB I/O

    1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)

  • Wireless

    Bluetooth (Built-In)

  • Mobile App Compatible

    No

  • AC Input Power

    Universal: 100 to 240 VAC, 50 / 60 Hz

  • Power Supply Output

    12 VDC at 2 A

Physical

Jump to...
  • Dimensions

    7.5 x 8.4 x 2.9" (190 x 213 x 74mm)

  • Weight

    2.6 lbs (1.2kg)

  • UPC Codes

    192223276239, 192223075498, 810128260732, 192223227576

About Mackie ProFXv3+

FEATURED REVIEWS

SUPER

By JEREMIAS G.

EXCELENTE PRODUCTO. PARA GRABAR Y TRANSMISION EN VIVO FACIL DE LLEVARLO

Mackie ProFX6v3+ is a professional analog mixer and USB-C audio interface with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth and enhance your sound with upgraded GigFX+ effects on a color LCD screen.

Live Sound Meets Live Stream
Enhance your sound using high-resolution GigFX+ effects, with 12 presets you can edit and save on the fly via the full-size LCD screen. Combining the warmth of an analog recording console with precise digital effects, ProFX6v3+ is an ideal mixer for home studios and live events alike.

Onyx Mic Preamps
With up to 60 dB of gain and ultra-low noise, ProFXv3+ series mixers allow you to sound better than ever. Record podcasts, stream gameplay or produce the next hit - all with ultra-clean, transparent audio. Our award-winning Onyx Mic Preamps deliver analog warmth so you sound great, no matter what you do.

GigFX+ Effects Engine
Enhance your sound using high-resolution GigFX+ effects, with 12 presets you can edit and save on the fly via the full-size LCD screen. Combining the warmth of an analog recording console with precise digital effects, ProFXxv3+ is an ideal mixer for home studios and live events alike.

2x4 USB-C Audio Interface
Capture your stream or performance at pristine 24-bit / 192 kHz quality with a built-in 2x4 USB-C audio interface, complete with three recording modes: Standard for the full mix with effects, Loopback to include computer audio with mixer signal for streaming, and Interface to record channel 1-2 without effects processing.

Bring in Phone Calls and Backing Tracks
Use the dedicated Bluetooth channel to send and receive audio from devices like smartphones and tablets. For podcasters, it's an effortless way to bring in phone calls. For musicians and performers, it's the easiest option for streaming outside music and backing tracks.

Waveform OEM DAW
Waveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical 'Lite' versions, it does not impose any restrictions - you get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS, Windows, and Linux operating systems.

Mackie ProFXv3+ Features

  • Three recording modes: Standard, Loopback and Interface
  • Bi-directional Bluetooth for music playback and caller integration
  • 2-band EQ on channels 1 and 2
  • One-button compression on channels 1 and 2
  • Hi-Z switches allow direct connection of instruments
  • 100 Hz low-cut filter and 48V phantom power on all mic channels
  • Stereo 1/8" input on channel 5/6
  • Headphone output with separate level and blend control
  • Easily blend between monitoring your computer output and a latency-free feed from the mixer
  • Waveform OEM recording software Included
  • Legendary Built-Like-A-Tank design
  • Solid steel chassis
  • Tough ABS side protection

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Record studio-quality audio with 2x4 192kHz 24-Bit USB recording modes for versatile projects.
  • Enhance your sound with 12 customizable internal FX processors for professional-grade mixes.
  • Seamlessly integrate with your DAW using flexible recording modes including standard and loopback.
  • Enjoy crystal-clear sound quality with two Mackie Onyx mic preamps and 2-band channel EQ.
  • Connect effortlessly via USB-C and Bluetooth, perfect for live streaming and content creation.
  • Its compact and durable design makes this 6-channel analog mixer ideal for portable setups.

What's in the box:

  • Mackie ProFX6v3+ 6-Channel Bluetooth Analog Mixer with Enhanced FX
  • USB-C Cable
  • Power Supply
  • Waveform OEM Software
  • Mixer Bag
  • Rackmount Hardware
  • Dust Cover
  • Mackie 1 Year Limited Warranty
  • Bundle Includes:
  • TAPH100 Closed-Back Studio Monitor Headphones
  • 2x H&A Value Series 25' 3-Pin XLR Male to Female Microphone Cable
