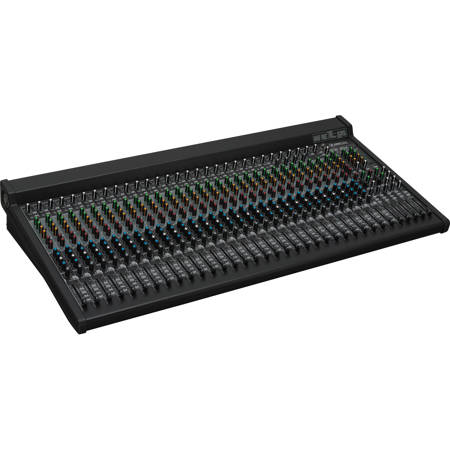

Mackie 42-Channel 4-Bus FX Mixer with USB, 128.5dB Dynamic Range, 2.7kOhms Mic In Impedance

SKU: MA3204VLZ4 MFR: 3204VLZ4
Earn VIP Reward Points

Key Features

  • Get pristine sound quality with this Mackie mixer's ultra-low noise performance.
  • This 32-channel mixer is perfect for live sound, recording, and streaming setups.
  • Shape your sound with precision using the sweepable mid 3-band EQ control.
  • Seamlessly integrate with your computer via the built-in USB audio interface.
  • Route audio easily with 4 aux sends for flexible monitor and effects configurations.
  • Enjoy years of reliable performance thanks to Mackie's legendary durability.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Mackie 32-Channel 4-Bus FX Mixer Specifications

  • Mixer Type

    Analog

  • Channels

    32

  • Inputs - Mic Preamps

    28 x XLR

  • Inputs - Line

    32 x TRS (28 x mono, 2 x stereo pairs)

  • Inputs - Other

    2 x RCA (tape)

  • Outputs - Main

    2 x XLR (stereo), 1 x XLR (mono)

  • Outputs - Direct

    No direct outputs

  • Outputs - Other

    2 x RCA (tape), 2 x TRS (monitor, stereo), 1 x TRS (monitor, mono)

  • Headphones

    1 x 1/4"

  • Send/Return I/O

    6 x TRS (send), 4 x TRS (stereo returns)

  • Phantom Power

    28 channels

  • EQ Bands

    3-band, Sweepable Mid

  • Aux Sends

    4 x Pre/Post, 2 x Post/FX

  • Busses/Groups

    4 bus

  • Faders

    35 x 60mm throw

  • Channel Inserts

    Yes

  • Effects

    Yes

  • Talkback

    Yes

  • Computer Connectivity

    1 x USB (4 x 2, 24-bit)

  • Rackmountable

    Not rackmountable

  • Gain Range

    60dB

  • Dynamic Range

    128.5dB

  • Line Input Handling

    +22 dBu

  • Distortion

    Under 0.0007% (20Hz - 50kHz)

  • Main Mix Noise

    Main Mix Fader Unity, Channel Faders Down: -84.5dBu (-88.5dBu Signal-To-Noise Ratio ref +4dbu)

  • Total Harmonic Distortion (THD)

    Mic In to Insert Send: <0.001%
    Mic In to Main Out: <0.005% (1kHz at 15db gain, 20Hz-20kHz Bandwidth)

  • Attenuation / Crosstalk

    Channel mute switch engaged: -90dB
    Channel fader down: -88dB

  • Frequency Response

    Mic In to Main Output (Gain at Unity): +0, -1dB, 20Hz to 50kHz
    +0, -3dB, <10Hz to >100kHz

  • Equivalent Input Noise (EIN)

    150 Ohms Termination: -128.5dBu
    20Hz to 20kHz

  • Common Mode Rejection Ratio (CMRR)

    1kHz: Better than -70dB

  • Maximum Levels

    Mic In: +21dBu
    All Other Inputs: +21dBu
    Main Mix XLR Out: +27dBu
    All Other Inputs: +27dBu

  • Impedances

    Mic In: 2.7k Ohms
    Channel Insert Return: 2.5k Ohms
    All Other Inputs: 10k Ohms or Greater
    Tape Out: <10 Ohms
    All Other Outputs: 120 Ohms

  • 3-Band EQ (Mono Channels)

    High Shelving: +/- 15dB at 12kHz
    Mid Peaking: +/- 15dB Sweep 100Hz - 8kHz
    Low Shelving: +/- 15dB at 80kHz
    Low Cut Filter: 18dB Octave, -3dB at 100Hz

  • 4-Band EQ (Stereo Channels)

    High Shelving: +/- 15dB at 12kHz
    Hi Mid Peaking: +/- 15dB at 2.5kHz
    Low Mid Peaking: +/- 15dB at 400Hz
    Low Shelving: +/- 15dB at 80Hz

  • USB

    Format: USB1.1
    I/O: Stereo Input, 4-Channel Output
    A/D/A: 24-bit, 44.1kHz / 48kHz

  • Power Consumption

    65W

  • Power Requirement

    100 - 120VAC, 50 - 60Hz

  • Operating Temperature

    0 deg. - 40 deg. C
    32 deg. - 104 deg. F

  • Dimensions (Front H/Rear H x W x D)

    1.8/6 x 38.0 x 19.1" / 4.5/15.24 x 96.52 x 48.5cm

  • Weight

    39.0lbs / 17.69kg

  • UPC Code

    663961039924

About Mackie 32-Channel 4-Bus FX Mixer

The Mackie 32-Channel 4-Bus FX Mixer with USB is perfect for live sound or recording use. Low noise-floor and high headroom is a signature of Mackie's sound and the 3204VLZ4 continues this tradition, building on the universal success of the hugely popular VLZ3 range whilst adding new features. The VLZ4 range has updated mic preamps in the form of 28 Onyx units previously only found on Mackie's high-end mixers. These quality pres deliver 60dBs of gain, with an extended frequency response and incredibly low distortion, which translates any source material from any mic perfectly.

Each mono channel also has a high-headroom line input, a three-band sweepable midrange EQ, level, pan, solo and overload/mute LEDs as well as an 18dB/oct highpass filter on each mic input. For additional tone-shaping channels 25-28 feature dedicated compression and there are dual 32-bit RMFX processors with reverbs, choruses and tap delays that are ideal for the gigging engineer.

Also on-board is a 4x2 24-bit USB interface which allows you to stream either the master output or a subgroup to a computer for recording. You can also use your plug-ins live via auxes 5/6 and use the system as a stereo return to mains for playback or to a channel to access the EQ and auxes. The 28 mono channels, two stereo channels and four subgroups are combined with six aux sends with inserts, pre/post fader and internal/external FX send options for the ultimate in flexibility.

This mixer is topped off with 60mm log-taper faders, sealed rotary controls, high-res 12 segment meters and an incredibly rugged steel chassis. The Mackie 3204VLZ4 is gig and tour ready straight out of the box. Whatever you need from your live or studio mixer, the 3204VLZ4 can handle it.

Mackie 32-Channel 4-Bus FX Mixer Features

  • 32-channel 4-bus mixer featuring Mackie signature high-headroom/low-noise design
  • 28 boutique-quality Onyx mic preamps
  • Ultra-wide 60dB gain range
  • 128.5 dB dynamic range
  • +22 dBu line input handling
  • Extended frequency response
  • Distortion under 0.0007% (20Hz - 50kHz)
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • Dedicated inline channel compression for critical inputs (ch. 25-28)
  • 28 high-headroom line inputs with dedicated inserts
  • Level, pan, solo and overload/mute LEDs on each channel
  • 3-band EQ with sweepable midrange
  • 18 dB/oct 100Hz low-cut filter on mic input channels
  • 4 subgroups featuring dedicated inline compressors for total dynamic control
  • 6 aux sends with inserts, pre/post fader and internal/external FX send options
  • 2 stereo returns and 4 group outs with inserts
  • Dual 32-bit RMFX+ processors featuring 24 "Gig Ready" reverbs, choruses and tap delay for live applications
  • Integrated 4x2 24-bit USB interface
  • Stream subgroups or master L/R to your PC or Mac for recording
  • Use your favorite plug-in live via auxes 5/6
  • Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more
  • PFL/AFL solo modes
  • 60mm long-wearing log-taper faders
  • High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.
