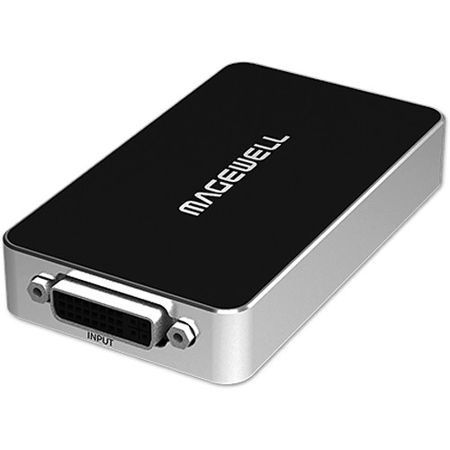

Magewell One Channel USB 3.0 to DVI Video Capture Dongle
See all Magewell items

Magewell One Channel USB 3.0 to DVI Video Capture Dongle

SKU: MA32080
(2)

This item is no longer available.

Recommended Alternatives

Magewell Pro Capture Card: Picture 1 regular
Magewell Pro Capture AIO One Channel HD Capture Card
$495.00
Magewell USB Capture HDMI Plus: Picture 1 regular
Magewell USB Capture HDMI Plus Single-Channel Video/Audio Capture Device
$389.00
Magewell Dongle: Picture 1 regular
Magewell One Channel USB 3.0 to SDI Video Capture Dongle
$389.00
Magewell USB Capture HDMI 4K Plus: Picture 1 regular
Magewell USB Capture HDMI 4K Plus Device
$545.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-02-16T07:04:47

Rated 5 out of 5

Great for streaming to zoom.

Great little device I use for streaming professional cameras with SDI outputs with audio to zoom for remote client viewing on film sets. Pair it with a Decimator and you can stream multicam.

William V.

2020-11-08T05:18:13

Rated 4 out of 5

Works Great@

Works great! I do not take credit for the research and identification. We have a media specialist that assisted in that.

Frank M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Dongle Specifications

  • Supported OS

    Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (Ubuntu 12.04-16.10, CentOS 7)
    OS X 10.9-10.11
    macOS 10.12
    Chrome OS

  • Supported APIs

    Windows:
    DirectShow
    Wave API/DirectSound/WASAPI

    Linux:
    V4L2
    ALSA

    OS X/macOS:
    QuickTime
    AV Foundation

  • Supported Software

    VLC
    VirtualDub
    OBS
    XSplit
    vMix
    VidBlaster
    Wirecast
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software

  • Input Interfaces

    DVI-I:
    DVI 1.0
    HDMI 1.4a (via breakout cable)
    VGA (via DVI-to-VGA convertor)
    Component (via breakout cable)

    3.5mm audio jack:
    unbalanced Line In interface

  • Host Interfaces

    USB 3.0:
    Compatible with USB 2.0
    Compatible with USB 3.1 Gen 1

  • Output Interfaces

    3.5mm audio jack: unbalanced Line Out interface

  • Input Functions

    Auto scan of video input sources when there is no signal input to the currently selected input source
    Manual selection of video input source
    Auto selection of linked (embedded) audio input source when the video input source changes
    Manual selection of audio input source
    Support for input video resolutions up to 2048x2160

  • VGA & Component Specific Functions

    12-bitADC
    Support for RGB & YCbCr (YUV) color formats
    Support for 'Separated sync', 'Composite sync', 'Sync-on-green' (SOG), 'Sync-on-luminance' (SOY)
    Support for DMT, CEA, CVT, GTF video timings
    Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
    Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT recommended)

  • VGA & Component Specific Functions(Cont)

    Auto detection of RGB & YCbCr color formats
    Auto or manual sampling phase adjustment
    Auto horizontal alignment
    Support for customized video timings
    Support for customized video resolutions for CVT/GTF timings

  • HDMI Specific Functions

    225MHz HDMIreceiver
    Adaptive HDMI equalizer support for cables lengths up to 30M
    Support for customized EDID
    Support for extraction ofAVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
    Full colorimetry support
    Support for 8/10/12-bit color depths
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

  • HDMI Specific Functions (Cont)

    Support for up to 2-channel IEC60958 audio streams
    Support for extraction of audio formation information & channel status data
    Support for extraction of video timing information
    Support for extraction of 3D format information
    Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

  • Analog Audio Functions

    Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
    Capture of stereo analog audio from Line In (3.5 mm stereo mini-jack socket)

  • Video Capture format

    Support for capture resolutions up to 2048x2160
    Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USBbandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows): 1920x1080 YUY2 (up to 75fps) and 1920x1080 RGB24 (up to 60fps)
    Support for YUY2 & UYVY4:2:2 8-bit

  • Video Capture format (Cont)

    Support for RGB24 & RGB32 4:4:4 8-bit
    The default capture format is YUY2. More capture format can be set using USB Capture Utility

  • Video Processing Functions

    Video processing pipelines with 160 Mpixels/s processing bandwidth
    Video cropping
    Video scaling
    Video frame rate conversion
    Vertical flip and mirror

    Video aspect ratio conversion:
    Auto or manual selection of input aspect ratio
    Auto or manual selection of capture aspect ratio
    Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

  • Video Processing Functions (Cont)

    Video de-interlacing:
    Weave
    Blend top & bottom field
    Top field only
    Bottom field only

    Video color format conversion:
    Auto or manual selection of input color format & quantization range
    Auto or manual selection of capture color format, quantization range & saturation range
    Support for RGB, YCbCr 601, YCbCr 709 color formats
    Support for Limited or Full quantization range
    Support for Limited, Full & 'Extended gamut' saturation range

  • Multiple devices on one computer

    Support for connecting multiple USB devices to one system
    Support for setting the device serial number as the device name shown in the system using USB Capture Utility

  • SDK

    The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

  • Firmware Upgrade

    Multiple devices in one system can be upgraded simultaneously

  • LED Indicator

    Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

  • Power Consumption

    5V max current: 600mA
    max power consumption: Approx. 3W

  • Operating temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Relative Humidity

    5% to 90% non-condensing

  • Dimensions (LxWxH)

    101.5 x 56.8 x 17mm (4.00 x 2.24 x 0.67")

  • UPC Code

    8143950200884

About Magewell Dongle

FEATURED REVIEWS

Great for streaming to zoom.

By William V.

Great little device I use for streaming professional cameras with SDI outputs with audio to zoom for remote client viewing on film sets. Pair it with a Decimator and you can stream multicam.

• Captures one of the following: DVI + audio, VGA + audio, Component + audio and HDMI + embedded audio
• Audio input via Line in
• Extract HDMI embedded audio output via Line out
• Capture 2K
• Compatible with Windows
• Compatible with Linux
• Compatible with Mac OS X
• Plug and Play
• Support UVC Protocol
• Up/down Scaling
• Deinterlacing
• Image Control
• Various Output Color Spaces
• Firmware Upgrade
• Compatibility with Software
• Continuously Work for 24h x7
• Multiple Devices on One Host
• 3-year Warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell One Channel USB 3.0 to DVI Video Capture Dongle
  • USB 3.0 Cable
  • Magewell 3 Year Warranty
