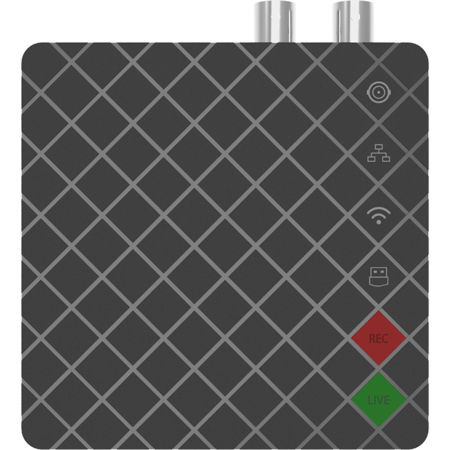

Magewell Ultra Stream 1-Channel 3G SDI Encoder
See all Magewell items

Magewell Ultra Stream 1-Channel 3G SDI Encoder

SKU: MA53020
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What platforms can I stream to with the Ultra Stream 1-Channel 3G SDI Encoder?

The Ultra Stream 1-Channel 3G SDI Encoder allows you to stream to popular platforms such as YouTube, Facebook Live, and Twitch. It also enables streaming to a custom-specified server.

Can I monitor my live stream in real time?

Yes, the Ultra Stream 1-Channel 3G SDI Encoder provides a real-time video preview through its intuitive smartphone app, allowing you to monitor your live stream easily.

Can I record videos with the Ultra Stream 1-Channel 3G SDI Encoder?

Absolutely. Besides live streaming, the Ultra Stream 1-Channel 3G SDI Encoder can record video files to a directly-connected USB drive, embedded storage, or the associated smartphone.

Can I stream to multiple servers at once?

Yes, the Ultra Stream 1-Channel 3G SDI Encoder allows simultaneous output to a third-party service and a custom server, broadening your reach and audience engagement.

Is the Ultra Stream 1-Channel 3G SDI Encoder suitable for users with minimal technical knowledge?

Definitely. The Ultra Stream 1-Channel 3G SDI Encoder is designed to be user-friendly, making it ideal for users with minimal technical knowledge. It enables high-quality video streaming and recording with just a single click.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Ultra Stream Specifications

  • Supported Mobile Clients

    Android:
    Android 5.0 and above
    iOS:
    iOS 9.0 and above
    iPhone:
    iPhone 5s
    iPhone SE
    iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
    iPhone 7 / iPhone 7 Plus
    iPhone 8 / iPhone 8 Plus
    iPhone X
    iPod Touch:
    iPod Touch 5
    iPod Touch 6

  • Supported Web Browser

    Microsoft Internet Explorer 11
    Microsoft Edge
    Mozilla Firefox version 61 and above
    Google Chrome version 49 and above
    Apple Safari 11.1 and above
    Opera 55.0.2994.44 and above

  • Input Interfaces

    BNC:
    SD/HD/3G SDI
    3.5mm audio jack:
    Microphone interface

  • Output Interfaces

    BNC:
    SD/HD/3G SDI
    USB:
    USB 2.0
    3.5mm audio jack:
    Headphone interface

  • Network Interfaces

    Wired Ethernet:
    10/100/1000Mbps Ethernet
    Wi-Fi:
    IEEE 802.11 a/b/g/n/ac
    USB:
    USB 3G/4G Modem (not included)

  • Bluetooth

    Bluetooth 4.0 BLE

  • SDI Specific

    Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
    Support for 2K (2048x1080) input and loopthrough signals
    Support for 8/10/12-bit color depths
    Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats
    Limited support for the first stream of 3Gb-DS

  • SDI Specific (Contd.)

    Limited support for the first link of dual link interfaces:
    YCbCr 4:2:2 10-bit 1080p 50/59.94/60: output as 1080i 50/59.94/60
    YCbCr 4:4:4 10-bit: output as 4:2:2
    RGB 4:4:4: R/B sub-sampled

  • Analog Audio

    Extraction of stereo embedded SDI audio for recording and output via 3.5mm stereo mini-jack Line Out
    Recording and streaming analog audio via 3.5 mm microphone interface

  • Streaming

    Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
    Streaming to Facebook, Twitch and YouTube platforms
    Support for streaming to 2 servers simultaneously

  • Recording (to USB Flash Drive)

    Support for H.264/HEVC (video) and AAC High Quality (audio) encoding
    Supports recording at input signal resolution up to 2048x1080
    Support for 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1200x900, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360, 480x360 resolutions

  • Recording (to USB Flash Drive) (Contd.)

    Support for 60fps, 50fps, 30fps, 25fps, 24fps, 15fps frame rates
    Support for recording as MP4 files
    USB Flash Drive file system format: FAT32, NTFS, exFAT, VFAT

  • Recording (to Mobile Device)

    Support for recording at up to 1280x720, 30fps
    Support for recording as MP4 files
    Take still image snapshots during recording
    Save recording files and screenshots to system album
    Input signal previewing
    Timer recording: 15s, 30s, 1min, 2min, 5min

  • Remote Control Features in App

    Remotely control recording and streaming
    Remotely check device status by multiple users simultaneously
    Support for setting volume, network, recording and live streaming parameters
    Support for checking and safely updating device firmware (can also reset to factory firmware version)
    Simultaneous main stream and sub stream encoding with customizable parameters
    The bitrate for main stream is up to 8 Mbps while for sub stream is 1 Mbps

  • Remote Control Features in App (Contd.)

    Support for modifying output AAC bitrate
    In-app online help
    Support for multiple users log-in simultaneously
    Support for device configuration using Web UI

  • LED Indicator

    Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
    Indicates the working state of the device: startup, recording, streaming, update

  • Working Environment

    Operating temperature: 32 to 104 Degree F (0 to 45 Degree C)
    Storage temperature: -4 to 158 Degree F (-20 to 70 Degree C)
    Relative Humidity: 5% to 90% non-condensing

  • Power Supply and Consumption

    Power port: 5V/2A
    Max power consumption: -6.0 W

  • Dimensions (L x W x H)

    3.70 x 3.70 x 0.87" (94.20 x 94.20 x 22.30mm)

About Magewell Ultra Stream

What sets the Ultra Stream 1-Channel 3G SDI Encoder apart is its user-friendly design and high-quality video encoding capabilities. This innovative product, crafted by the reputable brand Magewell, is ideal for users ranging from church volunteers and educators to corporate communicators and live event organizers. Even those with minimal technical knowledge can easily navigate its features.

This compact and durable encoder simplifies live streaming, allowing users to record or stream high-quality video with a single click using on-device buttons or an intuitive smartphone app. It's designed to handle high-quality 3G SDI video signals, making it an excellent choice for professional use.

The Ultra Stream 1-Channel 3G SDI Encoder offers the flexibility to stream to popular services such as YouTube, Facebook Live, and Twitch, or to a custom-specified server. It even allows simultaneous output to a third-party service and a custom server, broadening your reach and audience engagement.

One of its standout features is the real-time video preview in the app, which facilitates easy monitoring of your live streams. Beyond live streaming, the Ultra Stream 1-Channel 3G SDI Encoder can also record video as files to a directly-connected USB drive, embedded storage, or the associated smartphone, providing multiple options for storing and sharing your content.

In summary, the Ultra Stream 1-Channel 3G SDI Encoder is a compact, high-quality, and user-friendly solution for all your video encoding and live streaming needs.

Magewell Ultra Stream Features

  • Streaming to Facebook, Twitch and YouTube platforms
  • Support for streaming to 2 servers simultaneously
  • Recording to USB flash drive
  • Recording to mobile device
  • Remotely control recording and streaming
  • Device configuration using Web UI

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • User-friendly 3G SDI Encoder for effortless live streaming and recording
  • One-click streaming to platforms like YouTube, Facebook Live, and Twitch
  • Real-time video preview via intuitive smartphone app for quality monitoring
  • Simultaneous streaming to multiple servers for expanded audience reach
  • Direct video recording to USB drive, embedded storage, or smartphone
  • Compact and durable design, suitable for a variety of professional environments

What's in the box:

  • Ultra Stream 1-Channel 3G SDI Encoder
  • AC Adapter
  • Power Cable
  • Magewell 2 Year Limited Warranty
