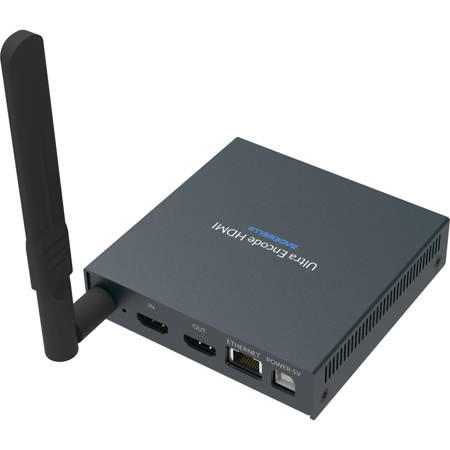

Magewell Ultra Encode HDMI
See all Magewell items

Magewell Ultra Encode HDMI

SKU: MA53040
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Ultra Encode HDMI Specifications

  • Input Features

    Max HDMI input & loop-through signals:
    4096x2160 60fps 4:2:0
    4096x2160 30fps 4:4:4/4:2:2
    Custom EDID
    Supported inputs include:
    4096x2160/3840x2160p 23.98/24/25/29.97/30/59.94/60
    2560x1080p 23.98/24/25/29.97/30/50/59.94/60
    1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    1920x1080i 25/29.97/30/50/59.94/60

  • Input Features (Contd.)

    1280x720p 23.98/24/25/29.97/30/50/59.94/60/144
    720x576p 50/100/144
    720x576i 25/50
    720x480p 59.94/60/144
    720x480i 29.97/30
    8/10/12-bit color
    Input & loopthrough 8-Channel, 24-bit HDMI embedded audio, 192kHz sample rate
    Input audio from 3.5 mm LINE IN
    HDMI Input and loop-through interfaces: HDMI 1.4a, DVI-D

  • Encoding Features

    Dual stream encoding: main stream and sub stream
    Max bitrates:
    Main Stream - 16Mbps
    Sub Stream - 2Mbps
    Support resolutions:
    HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
    SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
    Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps

  • Encoding Features (Contd.)

    H.264/H.265(HEVC) video encoders provide time code SEI message setting
    Encoding 2-channel AAC at 48kHz, 16-bit
    Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
    Extracting audio from HDMI signal and output through LINE OUT
    Encoding videos after de-interlacing
    Encoding interlaced input signal as main and sub streams in the format of interlaced H.265(HEVC)

  • Configuration Management

    Register with Magewell Cloud
    Remote control via WebUI and Magewell Cloud
    Provide comprehensive information regarding the system information of device and working status in real-time
    Video thumbnail preview

  • Configuration Management (Contd.)

    Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
    Update firmware
    Export configuration profiles of the device
    Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
    Provide HTTP APIs

  • Network Interfaces

    Wired Ethernet network: 10/100/1000Mbps
    Wi-Fi 802.11 a/b/g/n/ac
    3G/4G USB mobile broadband Modem (not included)

  • Input/Output Interfaces

    HDMI 1.4a input and loop-through interfaces
    3.5mm LINE IN
    3.5mm LINE OUT

  • LED Indicators

    LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

  • Power Supply and Consumption

    DC 5V/2A
    Max power consumption: -9.5 W

  • Screw Mounting Hole

    2x M3 threaded hole
    A standard 1/4"-20 socket provided by T-bracket

  • Working Environment

    Operating temperature: 32 to 104 deg F (0 to 40 deg C)
    Storage temperature: -4 to 158 deg F (-20 to 70 deg C)
    Relative Humidity: 5% to 90% non condensing

  • Dimensions (L x W x H)

    Form Factor: 4.19 x 4.18 x 0.98" (106.6 x 106.2 x 25mm)

  • UPC Code

    8143950201362

About Magewell Ultra Encode HDMI

Ultra Encode HDMI
A Flexible & Affordable Universal Encoder

• Live H.264/H.265 streaming
• Supports streaming protocols including SRT, NDI|HX, HLS & more
• Suitable for various network environment

Input Features
• Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
• Support for 48KHz, 16-bit 8-channel audio streams
• Input audio from 3.5 mm LINE IN

Encoding Features
• Dual stream encoding profiles: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
• Support for H.264/HEVC video encoding
• Encoding 2-channel AAC at 48kHz, 16-bit

Magewell Ultra Encode HDMI Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)
  • Internet connectivity via wired Ethernet and wireless network
  • Control via intuitive Web GUI or HTTP APIs

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Natively support streaming to Facebook, Twitch and YouTube
  • Allow streaming to multiple destinations simultaneously (select protocols)
  • Internet connectivity via wired Ethernet and wireless network
  • Control via intuitive Web GUI or HTTP APIs

What's in the box:

  • Magewell Ultra Encode HDMI
  • AC Adapter
  • Wi-Fi Antenna
  • USB 2.0 Type B Cable
  • HDMI Cable
  • T-Bracket
  • (3G/4G USB Mobile Broadband Modem Not Included)
  • Magewell 2 Year Limited Warranty (1 Year on Cable and Adapter)
