Magewell Pro Convert HDMI 4K Plus to NDI Converter
See all Magewell items

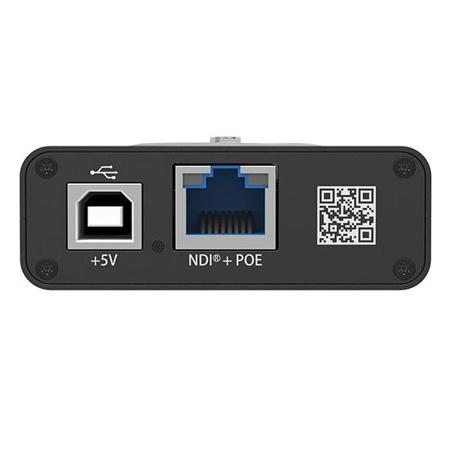

Magewell Pro Convert HDMI 4K Plus to NDI Converter

SKU: MA64010
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Magewell Pro Convert NDI to HDMI 4K Converter
$1,099.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Pro Convert HDMI 4K Plus Specifications

  • Supported Web Browser

    Microsoft Internet Explorer 11
    Microsoft Edge
    Mozilla Firefox version 61 and above
    Google Chrome version 49 and above
    Apple Safari 11.1 and above
    Opera 55.0.2994.44 and above

  • Supported Software

    OBS
    XSplit
    vMix
    VidBlasterX
    Wirecast
    streamstar SW
    mimoLive
    Any other NewTek NDI-enabled encoding or streaming software

  • Input Interfaces

    HDMI:
    DVI-D 1.0
    HDMI 1.4
    HDMI 2.0

  • Loop-through Interface

    HDMI:
    DVI-D 1.0
    HDMI 1.4
    HDMI 2.0

  • Storage Interface

    SD Card (functions to be developed)

  • PTZ + TALLY Control

    Mini-DIN-8 jack

  • Screw Mounting Hole

    1/4-20 mounting hole

  • Network Interfaces

    10/100/1000Mbps Ethernet
    IEEE 802.3af PoE

  • USB Interface

    USB 2.0 Type B
    5V/2.1A power supply
    USB RNDIS/ECM

  • Input Function

    Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps

  • HDMI Specific Functions

    600MHz HDMI receiver
    Adaptive HDMI equalizer
    Support for customized EDID
    Support for extraction of AVI/Audio InfoFrames
    Full colorimetry support
    Support for up to 4096x2160 4:4:4 60fps input signals
    Support for 8 channel IEC60958 audio streams
    Support for extraction of audio formation information & channel status data

  • HDMI Specific Functions (Cont.)

    Support for extraction of video timing information
    Support for extraction of 3D format information
    Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

  • NDI Output Format

    Support for 4:2:2 8-bit output
    Support for up to 4096x2160 60fps or 1920x1080 240fps
    Support for NDI 3.x

  • Video Processing Functions

    Video processing pipelines with 4096x2160 60fps
    Video brightness, contrast, saturation, hue adjustment
    Video de-interlacing: Top field only, Bottom field only
    Video aspect ratio conversion: Auto or manual selection of output aspect ratio
    Video color format conversion: Auto or manual selection of input color format & quantization range; Auto or manual selection of output color format, quantization range & saturation range

  • Video Processing Functions (Cont.)

    Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats; Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats; Support for Limited or Full quantization range; Support for Limited, Full & 'Extended gamut' saturation range
    Video frame rate conversion
    Video mirror flip

  • NDI Source Name

    Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'
    Support for setting the source name shown in the system using Web UI. By default, the source name is 'board-index + serial number'
    Support for setting board-index, from 0 to F, through on-board rotary switch

  • Firmware Upgrade

    Support for manual update using Web UI

  • LED Indicator

    Status LEDs indicate:
    The state of power supply: On/off
    Tally: Preview/program
    The state of input signal: Locked/unlocked
    The state of loop through signal: Loop through connected and signal detected/undetected

  • Power Consumption

    5V max current: Approx. 2A
    Max power consumption: Approx. 10W

  • Working Environment

    Operating temperature: 0 to 45 deg. C (32 to 113 deg. F)
    Storage temperature: -20 to 70 deg. C (-4 to 158 deg. F)
    Relative Humidity: 5% to 90% non-condensing

  • Dimensions (LxWxH)

    117.5 x 66.7 x 23.4mm (4.63 x 2.63 x 0.92")

  • UPC Code

    8143950201133

About Magewell Pro Convert HDMI 4K Plus

Pro Convert HDMI 4K Plus conforms to NewTek's NDI (Network Device Interface) standard, converting video resolutions up to Ultra HD 4K60p into NDI streams with extremely low latency. It is a truly plug-and-play device, with automatic input signal format detection and DHCP-based network configuration, eliminating the need for manual setup. Source video is converted at its native resolution and frame rate by default, while a browser-based interface offers users control of FPGA-based up/down/cross-conversion, deinterlacing, image adjustments and other video processing. Performing these functions within the Pro Convert HDMI 4K Plus hardware can reduce network bandwidth usage and processing requirements for subsequent tools in the production workflow.

Magewell Pro Convert HDMI 4K Plus Features

  • Support for NDI
  • Support for encoding up to 4K60p
  • Support for encoding up to 8 channels of embedded audio
  • Support for PoE (Power over Ethernet)
  • Support for plug-and-play
  • Support for USB RNDIS (Remote Network Driver Interface Specification)
  • Support for connection and management of PTZ camera
  • Support for web-based UI remote control
  • Convert one channel of HDMI signal with embedded audio to NDI stream
  • Loop-through one channel of HDMI signal with embedded audio

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell Pro Convert HDMI 4K Plus to NDI Converter
  • USB 2.0 A to B Cable
  • 5V/2.1A Power Adapter
  • Mini-DIN-8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN-8 (TALLY) Cable
  • L-Bracket
  • Magewell 2 Year Limited Warranty (1 Year on Cable and Adapter)
