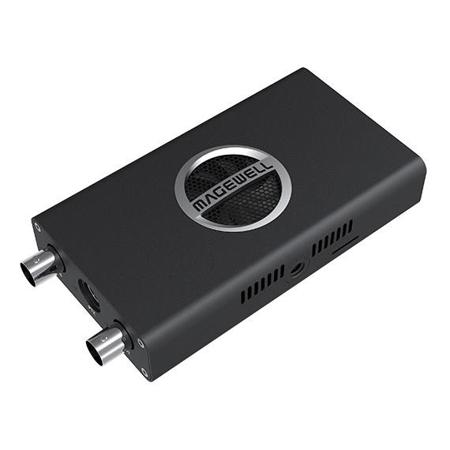

Magewell Pro Convert SDI Plus to NDI Converter
See all Magewell items

Magewell Pro Convert SDI Plus to NDI Converter

SKU: MA64040
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary function of the Pro Convert SDI Plus to NDI Converter?

The primary function of the Pro Convert SDI Plus to NDI Converter is to convert one channel of SD/3G-SDI signal with embedded audio to an NDI stream. It ensures high-quality video output for professional use.

What additional features does the Pro Convert SDI Plus to NDI Converter offer?

The Pro Convert SDI Plus to NDI Converter offers a loop-through feature for SD/3G-SDI signals with embedded audio, a USB 2.0 interface, a 10/100/1000 Mbps Ethernet, a Mini-DIN-8 PTZ interface, an SD Card Slot for additional storage, and a 1/4-20 mounting hole for easy installation.

Who would benefit from using the Pro Convert SDI Plus to NDI Converter?

The Pro Convert SDI Plus to NDI Converter is ideal for professionals in the film and television industry, as well as for large-scale events and presentations. It is also suitable for any application that requires high-quality video output and the use of NDI technology.

What is the maximum NDI encoding supported by the Pro Convert SDI Plus to NDI Converter?

The Pro Convert SDI Plus to NDI Converter supports NDI encoding up to 1920x1080p60, ensuring high-quality video output for various applications.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Pro Convert SDI Plus Specifications

  • Supported Web Browser

    Microsoft Internet Explorer 11
    Microsoft Edge
    Mozilla Firefox version 61 and above
    Google Chrome version 49 and above
    Apple Safari 11.1 and above
    Opera 55.0.2994.44 and above

  • Supported Software

    OBS
    XSplit
    vMix
    VidBlasterX
    Wirecast
    streamstar SW
    mimoLive
    Any other NewTek NDI-enabled encoding or streaming software

  • Input Interfaces

    BNC: SD/HD/3G SDI

  • Loop-through Interface

    BNC: SD/HD/3G SDI

  • Storage Interface

    SD Card (functions to be developed)

  • PTZ + TALLY Control

    Mini-DIN-8 jack

  • Screw Mounting Hole

    1/4-20 mounting hole

  • Network Interfaces

    10/100/1000Mbps Ethernet
    IEEE 802.3af PoE

  • USB Interface

    USB 2.0 Type B
    5V/2.1A power supply
    USB RNDIS/ECM

  • Input Function

    Support for up to 1920x1080 input resolution

  • HDMI Specific Functions

    Integrated cable equalizer supporting cable lengths up to 150M for 3G-SDI signals
    Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS (SMPTE 2081) standards
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for 10/12-bit color depth
    Support for extraction of SMPTE 352 payload identifier
    Support for up to 16 (mono) audio channels

  • HDMI Specific Functions (Cont.)

    Support for extraction of audio formation information & channel status data
    Limited support of 3Gb-DS: only the first stream can be captured
    Limited support for capture of the first link of dual link interfaces:
    YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
    YCbCr 4:4:4 10-bit: captured as 4:2:2
    RGB 4:4:4: R/B sub-sampled

  • NDI Output Format

    Support for 4:2:2 8-bit output
    Support for up to 1920x1080 output resolution
    Support for NDI 3.x

  • Video Processing Functions

    Support for capture resolutions up to 1920x1080
    Video brightness, contrast, saturation, hue adjustment
    Video de-interlacing: Top field only, Bottom field only
    Video aspect ratio conversion: Auto or manual selection of output aspect ratio
    Video color format conversion: Auto or manual selection of input color format & quantization range; Auto or manual selection of output color format, quantization range & saturation range

  • Video Processing Functions (Cont.)

    Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats; Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats; Support for Limited or Full quantization range; Support for Limited, Full & 'Extended gamut' saturation range
    Video frame rate conversion
    Video mirror flip

  • NDI Source Name

    Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'
    Support for setting the source name shown in the system using Web UI. By default, the source name is 'board-index + serial number'
    Support for setting board-index, from 0 to F, through the on-board rotary switch

  • Firmware Upgrade

    Support for manual update using Web UI

  • LED Indicator

    Status LEDs indicate the working state of the device:
    Power supply: On/off
    Tally: Preview/program
    Input signal: Locked/unlocked
    Loop through signal: Loop through connected and signal detected/undetected

  • Power Consumption

    5V max current: Approx. 1.5A
    Max power consumption: Approx. 6W

  • Working Environment

    Operating temperature: 0 to 45 deg. C (32 to 113 deg. F)
    Storage temperature: -20 to 70 deg. C (-4 to 158 deg. F)
    Relative Humidity: 5% to 90% non-condensing

  • Dimensions (LxWxH)

    117.5 x 66.7 x 23.4mm (4.63 x 2.63 x 0.92")

  • UPC Code

    8143950201171

About Magewell Pro Convert SDI Plus

• Convert one channel of SD/3G-SDI signal with embedded audio to NDI stream
• Loop-through one channel of SD/3G-SDI signal with embedded audio
• USB 2.0 for power and data transfer; 10/100/1000 Mbps Ethernet; Mini-DIN-8 PTZ Interface
• SD Card Slot; 1/4-20 Mounting Hole
• NDI Encoding Up to 1920x1080p60

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell Pro Convert SDI Plus to NDI Converter
  • USB 2.0 A to B Cable
  • 5V/2.1A Power Adapter
  • Mini-DIN-8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN-8 (TALLY) Cable
  • Tally Lights
  • L-Bracket
  • Magewell 2 Year Limited Warranty (1 Year on Cable and Adapter)
