Magewell Pro Convert H.26x to SDI Converter
See all Magewell items

Magewell Pro Convert H.26x to SDI Converter

SKU: MA64170
(1)

This item is no longer available.

Recommended Alternatives

Magewell Pro Convert: Picture 1 regular

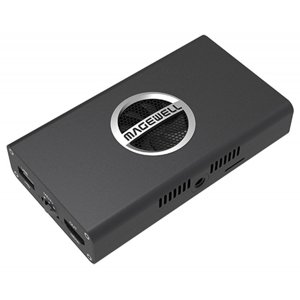

Magewell Pro Convert NDI to HDMI 4K Converter
$1,099.00
Magewell Pro Convert: Picture 1 regular

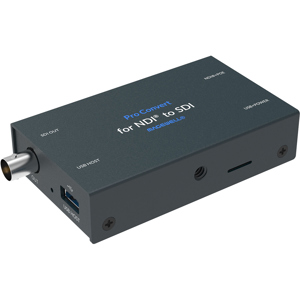

Magewell Pro Convert 1-Channel NDI to SDI Decoder
$489.00
Magewell Pro Convert: Picture 1 regular
Magewell Pro Convert 1-Channel NDI to HDMI/SDI Decoder
$499.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-04-04T12:30:14

Rated 4 out of 5

Easy to setup and use.

This is an excellent product - easy to set up and use. Appears well built and plan on getting more when budget allows. That's the only drawback at this time is the cost, but it appears everyone in this marketplace is priced the same.

ROSE S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Magewell Pro Convert Specifications

  • Output Features

    Max output: 1920x1080p60. Supported output formats are:
    1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    1920x1080i 50/59.94/60
    1280x720p 23.98/24/25/29.97/30/50/59.94/60
    720x576i50
    720x480i59.94

  • Output Features (Contd.)

    Support YUV BT.601, YUV BT.709 signal
    Support 48KHz 8-channel audio output
    SD/HD/3G-SDI BNC output
    Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
    Output 3G-SDI signal and transmitted distance greater than 328' (100m)

  • Decoding Features

    Decoding up to 2Kp60 streams of RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
    H.264/H.265 video decoders
    AAC/MP3 audio decoders

  • Web UI Management

    Provide comprehensive information regarding the device and decoded signals in real-time
    Allow to configure how a signal is processed and decoded, including:
    OSD setting, deinterlacing, resolution, frame rate, AR conversion
    Audio gain, sample rate and audio channel mapping
    Network connection

    Update firmware
    Support USB RNDIS/ECM
    Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
    Provide HTTP APIs

  • On-board Control Buttons

    MENU: Press to display the menu, or cycle through the options
    SELECT: Press to display the menu, enter current option, or confirm the selection
    16 Position Rotary DIP Switch: Set board-index from 0 to F

  • Network Interfaces

    10/100/1000Mbps Ethernet
    IEEE 802.3af PoE

  • USB Interfaces

    USB2.0 Type B
    5V/2.1A power supply
    USB RNDIS/ECM

    USB3.0 Type A
    Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

  • LED Indicators

    Power LED status indicator
    On: Power connected
    Off: Power unconnected
    Decode LED status indicator
    On: Decoding
    Blinks: Decoding error
    Off: Source unselected

  • Screw Mounting Hole

    1/4-20 threaded hole

  • Power Consumption

    5V max current: -1.05A
    Max power consumption: -5.5W

  • Working Environment

    Operating temperature: 32 to 104 deg F (0 to 40 deg C)
    Storage temperature: -4 to 158 deg F (-20 to 70 deg C)
    Relative Humidity: 5% to 90% non condensing

  • Dimensions (L x W x H)

    Form Factor: 3.97 x 2.37 x 0.91" (100.9 x 60.2 x 23.3mm)

  • UPC Code

    8143950201355

About Magewell Pro Convert

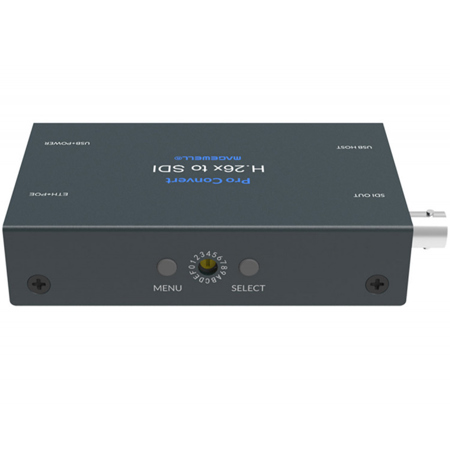

Pro Convert H.26x to SDI
Convert multi-protocol IP-based streams into SDI signal

• Connects baseband presentation or distribution equipment into IP-based media networks
• Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP
• Plug-and-play ease of use with automatic output format optimization and DHCP network configuration

Output Features
• Support for up to 1920x1080 60fps SDI output
• Support for 48KHz, 16-bit 8-channel audio streams

Decoding Features
• Support for up to 2560x1440 60fps signal decoding
• Compatible with H.264/H.265 streams in protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

Magewell Pro Convert Features

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations
  • Safe area controls

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Very low latency
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations
  • Safe area controls

What's in the box:

  • Magewell Pro Convert H.26x to SDI Converter
  • USB 2.0 A to B Cable
  • 5V/2.1A Power Adapter
  • L-Bracket
  • Magewell 2 Year Limited Warranty (1 Year on Cable and Adapter)
