Mackie 8-Channel Ultra-Compact Mixer, 3-Band EQ (80 Hz, 2.5 and 12 kHz)
Mackie 802VLZ4: Picture 1 thumbnail
Mackie 802VLZ4: Picture 2 thumbnail
Mackie 802VLZ4: Picture 3 thumbnail
Mackie 802VLZ4: Picture 4 thumbnail
See all Mackie items

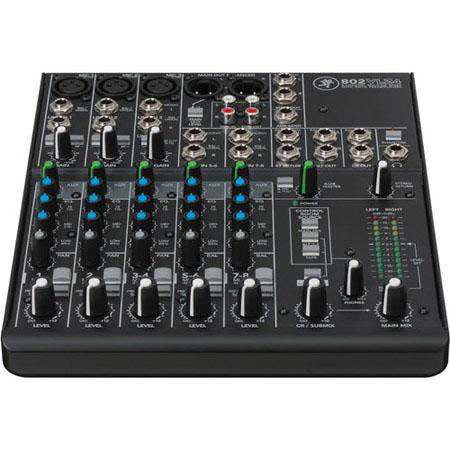

Mackie 802VLZ4 8-Channel Ultra-Compact Mixer, 3-Band EQ (80 Hz, 2.5 and 12 kHz)

SKU: MA802VLZ4 MFR: 802VLZ4
Be the first to review this itemAsk a Question
$219.99
OR
$37/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve pristine sound quality with this Mackie mixer, perfect for studio recording.
  • Ultra-compact 8-channel mixer offers versatile input channels for mics and instruments.
  • Sculpt your sound with precision using the built-in 3-band EQ control for each channel.
  • Enjoy low noise performance, ensuring clean and professional audio recordings every time.
  • Durable VLZ4 construction guarantees years of reliable use, ideal for live sound mixing.
  • Use as a compact USB interface for seamless integration with your favorite DAW software.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$49.99

3 Year

$59.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JESUS V : Seemed like a clean, solid and some what compact mixer.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Mackie 802VLZ4 Specifications

  • Noise

    Main Mix Knob Down, Channel Level Knobs Down:
    XLR: -95 dBu
    TRS: -101 dBu

    Main Mix Knob at Unity, Channel Level Knobs Down:
    XLR: -90 dBu
    TRS: -96 dBu

    Main Mix Knob at Unity, Channel Level Knobs at Unity:
    XLR: -84 dBu
    TRS: -90 dBu

  • Total Harmonic Distortion (THD)

    Microphone Pre at Insert: <0.001%

  • Crosstalk / Attenuation

    Main Mix Knob Down: -75 dBu Channel Alt / Mute Switch Engaged: -100 dBu Channel Level Knob Down: -100 dBu

  • Frequency Response

    Microphone Input to Main Output (Gain at Unity):
    +0, -1 dB, 20 Hz to 50 kHz
    +0, -3 dB, <10 Hz to >100 kHz

  • Equivalent Input Noise

    150 ohm Termination: -128.5 dBu, 20 Hz to 20 kHz
    Microphone input to insert send out, maximum gain

  • Common Mode Rejection Ratio

    Better than -70 dB at 1 kHz

  • Maximum Level

    Microphone In: +21 dBu
    Tape In: +22 dBu
    All Other Inputs: +22 dBu
    Main Mix XLR Out: +28 dBu
    All Other Outputs: +22 dBu

  • Impedance

    Microphone In: 2.55 kohm
    Channel Insert Return: 5 kohm
    All Other Inputs: 17 kohm or greater
    Tape Out: 1 kohm
    Phones Out: 60 ohm
    All Other Outputs: 120 ohm

  • Equalizer

    High Shelving: +/-15 dB at 12 kHz
    Mid Peaking +/-15 dB at 2.5 kHz
    Low Shelving: +/-15 dB at 80 Hz

  • Power Consumption

    13 W, 100 to 120 VAC, 50 to 60 Hz

  • Power Supply

    External (AC Connector): 2-Pin IEC 250 VAC

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Dimensions (H x W x D)

    10.7 x 8.9 x 1.8" (272.0 x 226.0 x 45.7mm)

  • Weight

    With Power Supply: 5.5lbs (2.5kg)
    Without Power Supply: 4.5lbs (2.0kg)

  • UPC Code

    663961039832

About Mackie 802VLZ4

Mackie 802VLZ4 Features

  • 8-Channel mixer featuring high-headroom, low-noise design
  • 3 Boutique-Quality Onyx Microphone Preamps: Wide 60 dB gain range, 128.5 dB dynamic range, +22 dBu line input handling, Extended frequency response, Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • Eight high-headroom line inputs
  • Selectable instrument inputs on first 2 channels; no DI box needed
  • 3-Band EQ (80 Hz, 2.5 and 12 kHz)
  • 18 dB/octave 100 Hz low-cut filter on microphone input channels
  • AUX send, level, pan and PFL solo on each channel
  • Stereo return for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • Built-like-a-tank rugged steel chassis with powder-coat finish
  • High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
  • Universal power supply for worldwide use
  • Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast and many more

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Achieve pristine sound quality with this Mackie mixer, perfect for studio recording.
  • Ultra-compact 8-channel mixer offers versatile input channels for mics and instruments.
  • Sculpt your sound with precision using the built-in 3-band EQ control for each channel.
  • Enjoy low noise performance, ensuring clean and professional audio recordings every time.
  • Durable VLZ4 construction guarantees years of reliable use, ideal for live sound mixing.
  • Use as a compact USB interface for seamless integration with your favorite DAW software.

What's in the box:

  • Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
  • Power Supply
  • Mackie Warranty
