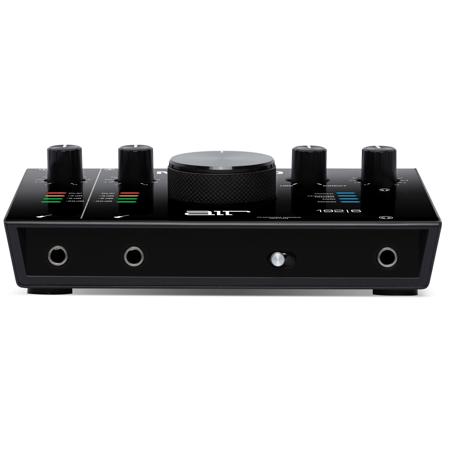

M-Audio AIR 192|6 2-In/2-Out 24/192 USB Audio/MIDI Interface

SKU: MAAIR192X6

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?BERNARDINO V : Simple set up, quality sound comes with dlc

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

M-Audio AIR192|6 Specifications

Mic Inputs 1-2 (Balanced XLR)

Mic Inputs 1-2 (Balanced XLR)

Jump to...
  • Frequency Response

    20 Hz - 20 kHz (+0.1 dB)

  • Dynamic Range

    104 dB (A-weighted)

  • Signal to Noise Ratio

    104 dB (+1.0 dBu, A-weighted)

  • THD+N

    0.002 %

  • Preamp Ein

    -128 dBu (max gain, 150 Ohm source, A-weighted)

  • Max Input Level

    +1.5 dBu

  • Gain Range

    55 dB

Line Input 1-2 (Balanced 1/4" TRS)

Jump to...
  • Frequency Response

    20 Hz - 20 kHz (+0.05 dB)

  • Signal to Noise Ratio

    101 dB (1 kHz, +4 dBu, A-weighted)

  • THD+N

    0.002 %

  • Max Input Level

    16 dBu

  • Gain Range

    55 dB

Inst Input 1-2 (Unbalanced 1/4" TS)

Jump to...
  • Frequency Response

    20 Hz - 20 kHz (+0.05 dB)

  • Dynamic Range

    100 dB (A-weighted)

  • Signal to Noise Ratio

    98 dB (+ 4 dBu, A-weighted)

  • THD+N

    0.005 %

  • Max Input Level

    6 dBu

  • Input Impedance

    1 M Ohm

  • Gain Range

    24 dB

Main Outputs, L/R (Balanced 1/4" TRS)

Jump to...
  • Frequency Response

    20 Hz - 20 kHz (+0.05 dB)

  • Dynamic Range/Signal to Noise Ratio

    106 dB (A-weighted)

  • THD+N

    0.005 %

  • Max Output Level

    +13 dBu (1 kHz, -1 dBFS)

Headphone Output (1/4" TRS)

Jump to...
  • THD+N

    0.005 %

  • Output Impedance

    10 Ohm

General

Jump to...
  • Power Options

    USB-bus-powered

  • Computer Connectivity

    Standard USB 2.0 or USB-C Port

  • OS Requirements

    Mac: OS 10.8 Class Compliant
    PC: Windows 7, Windows Driver

  • Dimensions (W x D x H)

    8 x 6 x 2.76" (20.42 x 15.24 x 7cm)

  • Weight

    2.1 lb (0.95kg)

  • UPC Code

    0694318024454

About M-Audio AIR192|6

Enhance your audio recording and production capabilities with the high-quality and professional AIR 192|6 2-In/2-Out 24/192 USB Audio/MIDI Interface. This innovative and durable device sets a new benchmark in the realm of studio-quality sound, offering an intuitive and user-friendly interface that enables you to create 24-bit/192kHz recordings with ease.

The AIR 192|6 is equipped with two dedicated XLR+ 1/4" balanced combo inputs, allowing you to record up to two channels simultaneously. It also features two all-new 1/4" instrument inputs, specifically designed with a unique gain and impedance stage to deliver the most accurate representation of a guitar or bass plugged directly into the interface.

This versatile audio interface also includes 5-pin MIDI In and Out connections, making it compatible with synths, sequencers, and other external MIDI gear. The AIR 192|6 is not just a hardware device; it also comes with a comprehensive software package tailored to match your production style. This includes two powerful Digital Audio Workstations (DAWs) - Pro Tools | First M-Audio Edition, and Ableton Live Lite.

To cater to all your production needs, we've added an entire Effects Plugin, Virtual Instruments, and Loop package. This includes the Eleven Lite for guitar tones, 20 effect plugins, and AIR's Creative FX Collection for reverb and delay effects. The included AIR Virtual Instrument plugins offer a virtual drum machine, synth, strings, percussion, organ, and piano plugins, enabling you to add world-class-sounding instruments to your songs with ease.

The AIR 192|6 is engineered with Crystal Preamps for a transparent, low-noise preamp that guarantees the best sound from your microphones, capturing your performance exactly as you intended. It incorporates pristine A/D converters to provide 24-bit resolution digital audio, offering an explosive dynamic range that captures every nuance and subtlety of your performance.

With its high-speed USB connection, the AIR 192|6 provides the lowest round trip latency (2.59ms) between your machine and your hardware. It also features monitor mix control for listening directly to the source inputs, providing you with zero-latency technology. This means you can focus on capturing that perfect moment and getting the best performance, without being bogged down by "clicks," "pops," or latency.

In conclusion, the AIR 192|6 2-In/2-Out 24/192 USB Audio/MIDI Interface is a high-quality, professional, and versatile solution for all your audio recording and production needs.

M-Audio AIR192|6 Features

  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency of 2.59ms
  • Transparent Crystal preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level
  • Flexible inputs: (2) XLR+ 1/4" TRS combo or 1/4" instrument inputs
  • Use any combination of TRS combo or 1/4" instrument input on the two channels:(2) TRS, (2) instrument or (1) of each
  • 5-pin MIDI input/output for connecting virtually any external MIDI gear
  • Stereo 1/4" outs; 1/4" headphone out with independent level control
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal

Key Features

  • Professional 24-bit/192kHz recording for studio-quality audio capture
  • Dual XLR+ 1/4" inputs with dedicated gain for accurate instrument representation
  • Zero-latency monitoring with high-speed USB connection and mix control
  • Comprehensive software bundle including Pro Tools | First and Ableton Live Lite
  • Crystal Preamps and pristine A/D converters for clear, noise-free recordings
  • MIDI In/Out connectivity for seamless integration with external MIDI gear

What's in the box:

  • AIR 192|6 Audio Interface
  • USB-C to USB-C Cable
  • USB-C to USB-A Cable
  • Software Download Cards
  • User Guide
  • M-Audio 1 Year Limited Warranty
