Martin Audio Stadium Series AM10 10" 2-way Passive Speaker with 30W Transformer, 1200W Peak Power, Full-Range Weatherised Enclosure, Single

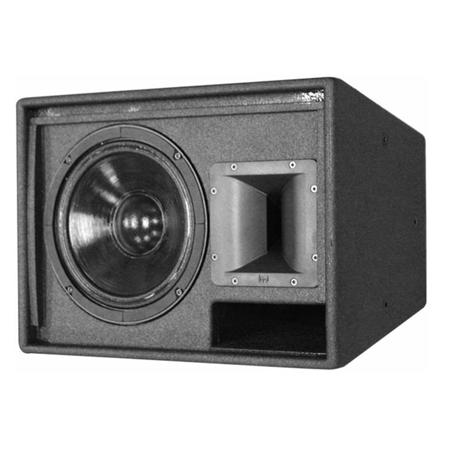

The AM10 is a 2-way passive enclosure that has been specifically designed for applications such as stadiums and arenas where high SPL and weather resistance are of prime importance. The AM10 has a 300W 10" (250mm) direct radiating reflex loaded low frequency transducer with a waterproof cone coupled with a 1" (25mm) exit HF compression driver mounted on a rotatable 90 deg. horizontal x 50 deg. vertical constant directivity horn. The enclosure is of a vertical trapezoid design and horizontally formatted to reduce sightline obstruction. The AM10 is finished, both internally and externally, in a textured, high-density polyurethane coating. It is supplied with a protective grille that is heavy galvanised and powder-coated and fitted with an integral water barrier to ensure product reliability over many years.

Connection to the AM10 is via a flying lead secured through a waterproof gland and all internal metalwork is galvanised. The AM10 has twelve 10mm threaded inserts fitted with copper coated and blacked steel bolts, to facilitate easy installation. The AM10 is fitted with a passive crossover network and it is available with an 30W 100/70V line transformer. Tapping adjustments are made via spade terminals, which are accessed through a removable rear panel.
