Mackie AXIS Digital Mixing Touring Kit with DC-16 Control Surface, DL32R Live Sound Mixer, DL Dante Expansion Card, Hard Case and etherCON Reel
SKU: MAAXISTOURNP
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About Mackie Touring Kit
The Mackie AXIS Digital Mixing System delivers unmatched speed, visibility and customization for professional production and install. With full Dante integration, the modular AXIS system combines the power of the 32-channel DL32R digital mixer and innovative DC16 control surface to deliver a live sound solution with stunning workflow efficiency. Large, high-resolution screens provide class-leading readability and the unique SmartBridge intelligently handles up to three iPad devices.
AXIS delivers unparalleled visual feedback and customization that results in dramatically faster workflow. Complete with flexible 32x32 recording and a wide selection of powerful DSP, the AXIS system delivers a forward-thinking, modular digital mixing solution with more features per price than any other digital mixer available.

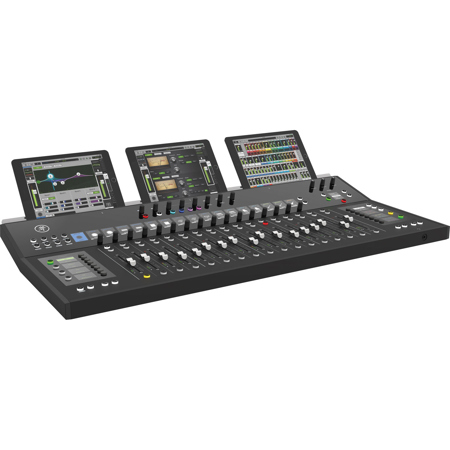

DC-16 Digital Control Surface
Dedicated Dante-Connected Control Surface for the AXIS System
• 17 full channel strips with Alps 100mm motorized touch-sensitive faders and per channel encoders
• Dedicated system channel section with controls for fast access to important parameters
• Mix selector and view groups deliver innovative navigation without preset banks
• Ergonomic layout with generous working space for easy access to all controls
Unmatched visual feedback
• Large, full-color backlit channel ID screens with class-leading readability
• Flexible channel labelling including name, color and icon
• 6-segment LED channel meters and 3-segment GR meters per channel
• Dedicated show display with snapshot control
Surface to wireless mixing via SmartBridge
• Automatically senses presences of up to three iPad devices and changes master fader operation to deliver tight integration and customized functionality
• Central iPad follows dedicated hardware controls for selected channels
• Unique history and fixed display iPad modes provides flexible workflow options
• Control up to 4 channels simultaneously from control surface and iPad devices
• Grab any iPad and go for instant wireless mixing from anywhere in the venue
• Wired recording and playback to central iPad
• Built-in charging for all 3 iPad devices
• Dedicated Wi-Fi router connection point
Tough professional hardware
• All steel chassis with aluminum front and back extrusions
• Low profile, compact design fits seamlessly into any workspace
Additional I/O for your AXIS System
• 4x4 Dante via dual locking etherCON
• XLR talkback input
• 1/8" stereo input
• Control room/phones outputs
DL32R 32-Channel Rackmount Digital Mixer
• 32 mic/line inputs featuring low-noise, recallable Onyx+ mic preamps
• Compact 3U rackmount design perfect for install or portable applications
• Personal monitor mixing using up to 20 iPad, iPhone or iPod touch device
18 fully-assignable outputs with flexible I/O routing
• 14 balanced XLR line outputs
• Stereo AES digital output
• Stereo TRS monitor outputs
Wide Selection of Powerful DSP
• 36 input channels with 4-band PEQ + HPF, gate, compression and RTA/spectrograph
• 32 stereo-linkable input channels
• 4 stereo-linkable return channels
• 28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/spectrograph: 14 stereo-linkable aux sends, 6 stereo-linkable matrix busses, 6 stereo-linkable subgroups, Main L/R busses
• 6 VCAs and 6 mute groups
• 3 stereo FX processors with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• 32x32 routing of any signal on/off a Dante network
• Assignable oscillator including pink/white noise and sine waves
• Modern and Vintage options per processor
Flexible Multi-Track Recording and Playback
• 32x32 recording/playback direct to USB 2.0 HDD
• 32x32 USB 2.0 audio interface for Mac and PC
• Simultaneous recording using included Dante Virtual Sound Card
