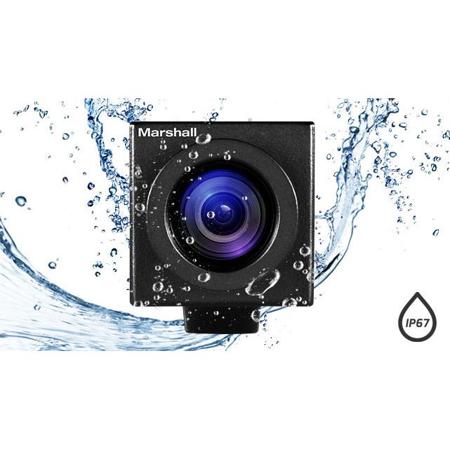

Marshall Electronics CV502-WPM 2.5MP Weatherproof Mini Camera with 3.7mm Lens
See all Marshall Electronics items

Marshall Electronics CV502-WPM 2.5MP Full HD Weatherproof Mini Broadcast Camera with 3.7mm Lens, 1080p, 1080i, & 720p at 60 fps

SKU: MACV502WPM
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Marshall Electronics CV502-WPM Specifications

  • Image Sensor

    1/3" Progressive CMOS (Approx. 2.1 mega)

  • Scanning System

    16:9 Progressive

  • Sync. System

    Internal

  • Effective Pixel

    1920(H) x 1080(V)

  • Min. Illumination

    0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux(DSS on)

  • Horizontal Resolution

    1000TVL

  • Lens

    CV502 comes with 3.7mm (M12 mount) - interchangeable

  • Back Light Compensation

    WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)

  • Exposure

    Auto / Manual

  • White Balance

    Auto (3,000 deg. K - 8,000 deg. K) / ATW (1,900 deg. K - 11,000 deg. K) / Manual

  • Day & Night System

    AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)

  • Electronic Shutter

    NTSC: 1/30 - 1/30000
    PAL: 1/25 - 1/30000, DSS(Approx. X64)

  • Functions

    Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W

  • Video Outputs: HD-SDI (+ Optional Audio)

    SMPTE 292M(1.485Gbps):
    1920x1080p at 29.97 (-MB/-CSB) or 25/30 (-M/-CS)
    1920x1080i at 59.94 (-MB/-CSB) or 50/60fps (-M/-CS)
    1280x720p at 59.94/29.97fps (-MB/CSB) or 50/60 (-M/-CS)

  • CVBS (BNC)

    Composite-CVBS (BNC): 700TVL NTSC/PAL

  • MIC Input

    Mic Level (1Vrms). 2.5V Mic bias 16, 20, 24, 32 bits audio format. 48KHz sample rates
    Gain: -12dB 59.5dB

  • Applications

    Broadcast Television, Professional Sports, College Sports, OB Vans/Trucks, Concert & Studio Music Video, Reality TV, Performing Arts, Culinary Shows, Car TV Shows, Hidden Camera Shows, International Racing Circuits, Off-road Racing, Horse Racing, House of Worship, POV Video Shots

  • RS-485

    PELCO-P/D, SONY-VISCA protocol
    8 bits data, 1 stop bit, no parity, 2400115200bps General Operation Temperature

  • Operation Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Power Input

    12VDC (7V to 15VDC)

  • Power consumption

    Max 6W

  • Dimensions (W x H x D)

    37 x 37 x 35mm (1.46 x 1.46 x 1.38")

  • Weight

    Approx. 140g (4.94oz)

  • UPC Code

    801813180886

About Marshall Electronics CV502-WPM

Marshall Electronics incorporated everything the CV502-MB/M camera delivers and built a weatherproof IP67 rated housing around it - CV502-WPM. Perfect for applications where weather becomes a factor; outdoor sporting events, nature observation, weather coverage, news coverage, reality TV, mobile broadcast or any outdoor application where mother nature has an influence.

Utilizing new state of the art 1/3-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux.

Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New weatherproof CV502-WPM Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Marshall Electronics CV502-WPM Features

  • Video Outputs: HD-SDI (+ Optional Audio)SMPTE 292M(1.485Gbps):
    1920x1080p at 29.97 (-MB/-CSB) or 25/30 (-M/-CS)
    1920x1080i at 59.94 (-MB/-CSB) or 50/60fps (-M/-CS)
    1280x720p at 59.94/29.97fps (-MB/CSB) or 50/60 (-M/-CS)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics CV502-WPM 2.5MP Full HD Weatherproof Mini Broadcast Camera
  • 3.7mm M12 Mount Lens
  • 10' Breakout Cable
  • Marshall Electronics 1 Year Limited Warranty
