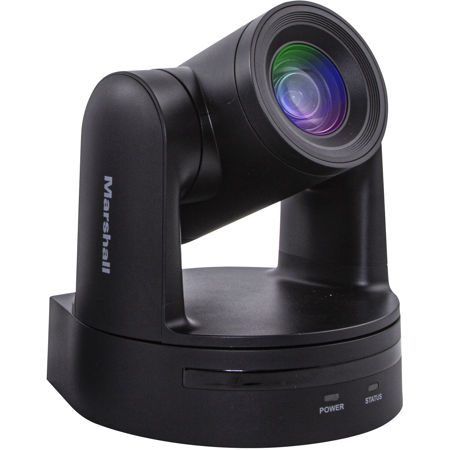

Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, Black

SKU: MACV605BK MFR: CV605BK
Earn VIP Reward Points

Key Features

  • Capture stunning HD video with the Marshall CV605 PTZ camera, perfect for live streaming events.
  • Experience smooth pan, tilt, and zoom (PTZ) control with a 5x optical zoom for detailed shots.
  • Easily integrate this PTZ camera via 3G-SDI/IP outputs, offering versatile connectivity options.
  • Enjoy remote operation with RS-232 control, making it ideal for broadcast and education settings.
  • Benefit from PoE support, simplifying setup by delivering power and video through a single cable.
  • Get superior image quality with a 2MP CMOS sensor, ensuring clear video even in low light (0.5 Lux).
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$69.99

3 Year

$94.99

4 Year

$119.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics CV605 Specifications

Image Sensor

Image Sensor

Jump to...
  • Image Sensor

    1-Chip 1/2.8" CMOS Sensor

  • Sensor Resolution

    Effective: 2 Megapixel

  • Signal-to-Noise Ratio

    55 dB

  • Minimum Illumination

    0.5 Lux

  • Max Digital Zoom

    10x

  • Built-In ND Filter

    None

  • Flip / Mirror Support

    Image Flip

  • Optical Zoom Ratio

    5x

  • Focal Length

    3 to 15.5mm

  • Field of View

    Horizontal: 85 Degree

  • Maximum Aperture

    f/1.8 to 11

  • Focus Control

    Autofocus
    Manual Focus

Video Output

Jump to...
  • Output Formats

    SDI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
    1920 x 1080i at 50, 59.94, 60 fps
    1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps

  • Embedded Audio

    SDI

  • IP Streaming

    H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p

Control

Jump to...
  • Presets

    255 via RS-232
    10 via IR

  • Move Speed

    Pan: 1 to 60 Degree /sec
    Tilt: 1 to 30 Degree /sec

  • Movement Range

    Pan: 270 Degree (-135 to 135 Degree )
    Tilt: 60 Degree (-30 to 30 Degree )

  • Tally Light

    No

  • Supported Control Protocols

    RS-232
    VISCA

Interfaces

Jump to...
  • Video Output Connectors

    1x BNC (3G-SDI / HD-SDI) Female
    1x RJ45 Female

  • Audio I/O

    1x 1/8" / 3.5 mm Stereo Mic/Line Level Input

  • Control Interface

    1x RJ45 (RS-232) Input

  • PoE Support

    PoE 802.3af

  • Power Connectors

    1x Barrel / Coaxial (12 VDC at 1 A)

  • Power Consumption

    Device: 110 to 220 VAC at 1.5 A (12 W)

Environmental

Jump to...
  • Operating Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Storage Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    20 to 95%

General

Jump to...
  • Color

    Black

  • Tripod Mounting Thread

    1x 1/4"-20 Female

  • Dimensions

    6.1 x 5.8 x 5.7" (154 x 147 x 145.5mm)

  • Weight

    2.8 lbs (1.27kg)

  • UPC Code

    801813225259

About Marshall Electronics CV605

What sets the CV605 2MP HD 3G-SDI/IP 5x PTZ Camera apart is its advanced 2 Megapixel sensor that delivers stunningly crisp HD video, ensuring that every detail is captured with clarity. With a wide-angle lens that starts at an 85-degree field of view and extends to a 1920x1080p resolution at a smooth 60 frames per second, this camera is engineered for professional-grade video production.

The sophisticated design of the CV605 incorporates a 5x optical zoom, allowing for precise framing and composition from wide shots to close-ups, complemented by an additional 10x digital zoom for extended reach. The innovative low-light sensitivity feature guarantees excellent performance in diverse lighting conditions, from dimly lit conference rooms to brightly lit outdoor events, maintaining image quality without compromise.

Networkable and equipped with POE technology, the CV605 seamlessly integrates into existing infrastructures, offering flexibility in setup and use. The state-of-the-art camera supports a streamlined one-cable setup through Ethernet (CAT) cable, which simplifies the installation process by carrying power, video, audio, and control signals over a single connection.

The CV605's high-tech capabilities extend to its output options, which include both 3GSDI and IP streaming (H.265/H.264), providing workflow versatility for a variety of broadcast and professional A/V applications. The camera's IP interface is designed for low latency, ensuring real-time transmission for live streaming and video conferencing.

Ideal for a multitude of settings, the CV605 is the perfect choice for live broadcast productions, courtroom capture, corporate video, government assembly, sports broadcasting, news coverage, reality television, concerts, and houses of worship. Its sleek black and silver design not only complements any professional environment but also houses a powerhouse of video technology that meets the demands of modern production and streaming applications.

Marshall Electronics CV605 Features

  • 2 Megapixel (HD) sensor
  • 5X Optical Zoom (3-15mm) - starting at 85 Degree AOV
  • 1920x1080p, 1920x1080i & 1280x720p HD Resolution
  • Resolution/Framerate choices; 1920x1080p at 60/59.94/50/30/29.97/25fps, 1920x1080i at 60/59.94/50fps, 1280x720p at 60/59.94/50/30/29.97/25fps
  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
  • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
  • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
  • IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) Control Options or Custom
  • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture stunning HD video with the Marshall CV605 PTZ camera, perfect for live streaming events.
  • Experience smooth pan, tilt, and zoom (PTZ) control with a 5x optical zoom for detailed shots.
  • Easily integrate this PTZ camera via 3G-SDI/IP outputs, offering versatile connectivity options.
  • Enjoy remote operation with RS-232 control, making it ideal for broadcast and education settings.
  • Benefit from PoE support, simplifying setup by delivering power and video through a single cable.
  • Get superior image quality with a 2MP CMOS sensor, ensuring clear video even in low light (0.5 Lux).

What's in the box:

  • Marshall Electronics CV605-BK 2MP HD 3G-SDI/IP 5x PTZ Camera (Black)
  • Power Adapter
  • Remote Control
  • Marshall Electronics 2 Year Limited Warranty
