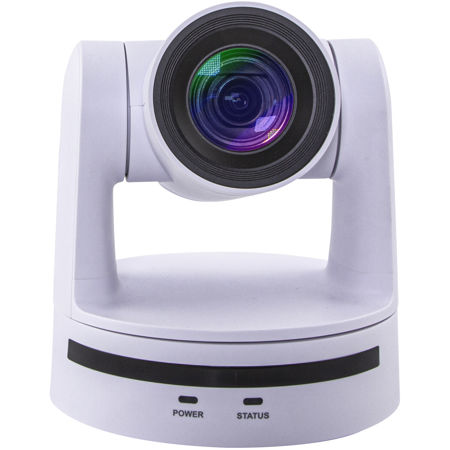

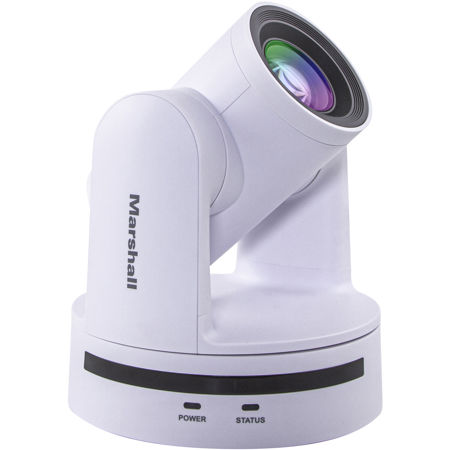

Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, White

SKU: MACV605WH

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV605 Specifications

Image Sensor

Image Sensor

Jump to...
  • Image Sensor

    1-Chip 1/2.8" CMOS Sensor

  • Sensor Resolution

    Effective: 2 Megapixel

  • Signal-to-Noise Ratio

    55 dB

  • Minimum Illumination

    0.5 Lux

  • Max Digital Zoom

    10x

  • Built-In ND Filter

    None

  • Flip / Mirror Support

    Image Flip

  • Optical Zoom Ratio

    5x

  • Focal Length

    3 to 15.5mm

  • Field of View

    Horizontal: 85 Degree

  • Maximum Aperture

    f/1.8 to 11

  • Focus Control

    Autofocus
    Manual Focus

Video Output

Jump to...
  • Output Formats

    SDI, RJ45: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
    1920 x 1080i at 50, 59.94, 60 fps
    1280 x 720p at 25, 29.97, 30, 50, 59.94, 60 fps

  • Embedded Audio

    SDI

  • IP Streaming

    H.264, H.265, ONVIF, RTMP, RTSP: 1080p, 720p

Control

Jump to...
  • Presets

    255 via RS-232
    10 via IR

  • Move Speed

    Pan: 1 to 60 Degree /sec
    Tilt: 1 to 30 Degree /sec

  • Movement Range

    Pan: 270 Degree (-135 to 135 Degree )
    Tilt: 60 Degree (-30 to 30 Degree )

  • Tally Light

    No

  • Supported Control Protocols

    RS-232
    VISCA

Interfaces

Jump to...
  • Video Output Connectors

    1x BNC (3G-SDI / HD-SDI) Female
    1x RJ45 Female

  • Audio I/O

    1x 1/8" / 3.5 mm Stereo Mic/Line Level Input

  • Control Interface

    1x RJ45 (RS-232) Input

  • PoE Support

    PoE 802.3af

  • Power Connectors

    1x Barrel / Coaxial (12 VDC at 1 A)

  • Power Consumption

    Device: 110 to 220 VAC at 1.5 A (12 W)

Environmental

Jump to...
  • Operating Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Storage Temperature

    14 to 140 Degree F (-10 to 60 Degree C)

  • Operating Humidity

    20 to 80%

  • Storage Humidity

    20 to 95%

General

Jump to...
  • Color

    White

  • Tripod Mounting Thread

    1x 1/4"-20 Female

  • Dimensions

    6.1 x 5.8 x 5.7" (154 x 147 x 145.5mm)

  • Weight

    2.8 lbs (1.27kg)

  • UPC Code

    801813225266

About Marshall Electronics CV605

The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85 Degree and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

Ultra-Wide 85 Degree with 5x Optical Zoom Range
The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

Low-light SensitivityThe CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

One Cable to Camera
One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

Camera Applications
The CV605 is suitable for use in networked HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, concerts, house of worship and many more.

Marshall Electronics CV605 Features

  • 2 Megapixel (HD) sensor
  • 5X Optical Zoom (3-15mm) - starting at 85 Degree AOV
  • 1920x1080p, 1920x1080i & 1280x720p HD Resolution
  • Resolution/Framerate choices; 1920x1080p at 60/59.94/50/30/29.97/25fps, 1920x1080i at 60/59.94/50fps, 1280x720p at 60/59.94/50/30/29.97/25fps
  • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
  • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
  • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
  • IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) Control Options or Custom
  • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Capture crystal-clear HD video with the CV605 PTZ camera's high-quality 2MP CMOS sensor.
  • Achieve smooth, professional broadcasts with the 5x optical zoom PTZ camera, even in low light.
  • Remotely control pan, tilt, and zoom functions via RS-232 for seamless video production setups.
  • Stream live events directly with IP streaming (H.264/H.265) on this versatile PTZ camera.
  • Integrate easily into existing systems using 3G-SDI and IP outputs for flexible connectivity.
  • Power over Ethernet (PoE) support simplifies installation for this PTZ camera, reducing cable clutter.

What's in the box:

  • Marshall Electronics CV605-WH 2MP HD 3G-SDI/IP 5x PTZ Camera (White)
  • Power Adapter
  • Remote Controller
  • Marshall Electronics 2 Year Limited Warranty
