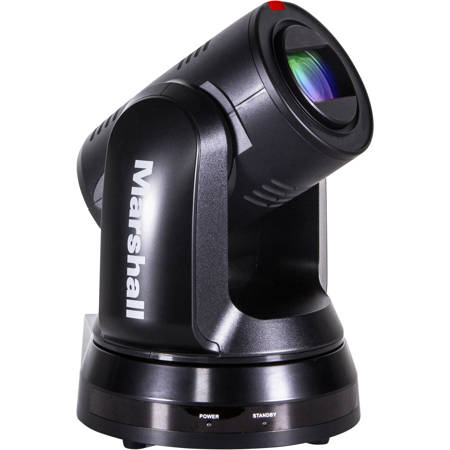

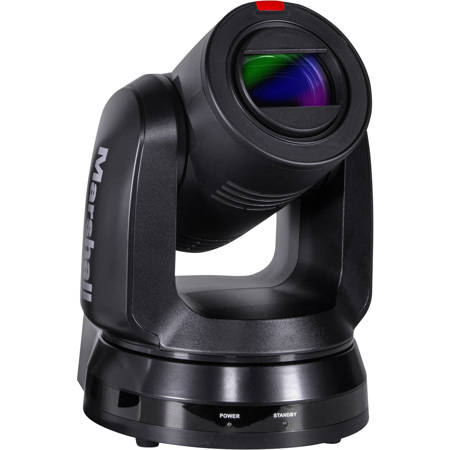

Marshall Electronics CV730 8.5MP 4K UltraHD 12G-SDI/HDMI2.0/IP 30x PTZ Camera, Black

SKU: MACV730BK

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the Marshall CV730 Camera?

The Marshall CV730 Camera offers a superior 4K UHD resolution (3840x2160) at 60fps, providing exceptional image clarity and detail.

Does the Marshall CV730 Camera have zoom capabilities?

Yes, the Marshall CV730 Camera is equipped with a 30x optical zoom. This allows for flexible shot framing and the ability to capture distant subjects.

What types of outputs does the Marshall CV730 Camera support?

The Marshall CV730 Camera supports simultaneous 12G-SDI, HDMI2.0, and IP outputs, providing a range of connectivity options.

Can I control the settings of the Marshall CV730 Camera remotely?

Yes, you can remotely control the settings of the Marshall CV730 Camera, including Iris, Zoom, Pan/Tilt, White Balance, Exposure, and Pedestal, via RS232, RS422, or IP.

What are some of the applications for the Marshall CV730 Camera?

The Marshall CV730 Camera is suitable for a variety of professional applications, including Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, and Observation.

Shopper : Why Did You Choose This?SARAH S : New camera system for streaming worship services.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics CV730 Specifications

  • Color

    Black

  • Sensor Size

    1/1.8"

  • Maximum Video Resolution (recorded)

    3840x2160

  • Lens Zoom

    30x Optical Zoom

  • Resolution

    UHD progressive 3840 x 2160p (59,97 / 50 / 25 / 29,97 fps)
    HD progressive 1920 x 1080p (59,94 / 50 / 25 / 29,97 fps)
    SD progressive 1280 x 720p (59,97 / 50 / 29,97 / 25 fps)

  • Output

    IP (HEVC/H265)
    12G / 6G / 3G-SDI
    HDMI 2.0
    Audio 3.5mm TRS Stereo

  • Dimensions (L x W x H)

    7.3 x 9.1 x 7.4" (186 x 232.6 x 187.7mm)

  • Weight

    6.6 lbs (3kg)

About Marshall Electronics CV730

Let the Marshall CV730 8.5MP 4K UltraHD 12G-SDI/HDMI2.0/IP 30x PTZ Camera elevate your video surveillance and monitoring capabilities. This high-quality, advanced camera is designed for professional use, offering a superior resolution of 4K UHD (3840x2160) at 60fps for crystal clear, detailed images.

The CV730 is equipped with a 30x optical zoom block, providing exceptional flexibility in framing shots and capturing distant subjects. This innovative feature starts at a broad 65-degree horizontal angle-of-view at 6.5mm, extending all the way out to 202mm for precise head and shoulder shots even at long distances.

This durable camera offers simultaneous 12GSDI, HDMI2.0, and IP outputs, powered by a professional-grade 8.5MP 1/1.8" UHD sensor. The result is smooth, synchronous movements and superior image quality. Remote adjust and match settings, including Iris, Zoom, Pan/Tilt, White Balance, Exposure, and Pedestal, can be controlled over long distances or during setup, with capable Auto settings that adapt to environmental changes.

Ease of use is a key feature of the CV730. Install a single cable to the camera for all functions - power, control, audio, video - or use Ethernet for PoE+/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows. This makes it ideal for streaming, production, or archiving.

The CV730 is a testament to Marshall Electronics' commitment to developing cutting-edge camera products that uphold the heritage of broadcast quality. It's designed for reliability, durability, flexibility, and affordability, with feature sets that matter to our industry partners.

Suitable for a wide range of applications, the CV730 is perfect for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, and Observation. Experience the difference of superior video quality and advanced features with the Marshall CV730 8.5MP 4K UltraHD 12G-SDI/HDMI2.0/IP 30x PTZ Camera.

Marshall Electronics CV730 Features

  • 8.5 Megapixel UHD Sensor (1/1.8")
  • 30x Optical zoom (6.5mm-202mm) starting at 65 Degree H.AOV
  • 340 Degree panning and 120 Degree tilt range
  • 12G/6G/3G-SDI, HDMI2.0 and IP (HEVC/H265) simultaneous outputs
  • 3840 x 2160p (UHD) up to 60fps, 1080/720p (HD) up to 60fps
  • 59.94, 50, 29.97, 25 frames per second options
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (30W max)

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning UHD video with the CV730 PTZ camera's detailed 4K resolution.
  • Experience smooth, precise control with the 30x optical zoom PTZ camera lens.
  • Easily connect via 12G-SDI, HDMI 2.0, and IP outputs for versatile integration.
  • The 1/1.8" sensor ensures excellent low-light performance for clear video capture.
  • Perfect for live streaming, broadcast, and more with reliable PTZ camera control.
  • Compact & durable design ensures this PTZ camera fits seamlessly into any setup.

What's in the box:

  • CV730 8.5MP Ultra HD 12G-SDI/HDMI2.0/IP PTZ Camera (Black)
  • Remote Control
  • Power Cord
  • Power Adapter
  • RS-422 Connector
  • Metal Plates (A and B)
  • M3 Screws
  • Marshall Electronics 1 Year Limited Warranty
