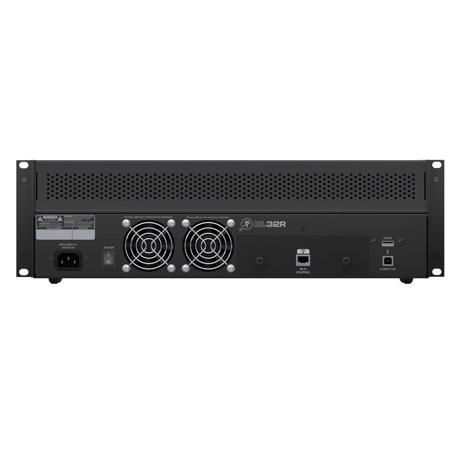

Mackie DL32R 32-Channel Wireless Digital Live Sound Mixer with iPad Control + Software Bundle

SKU: MADL32R

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Mackie DL32R Specifications

  • Sample Rate

    48 kHz

  • A/D/A Bit Depth

    24-bit

  • System Latency

    1.5 ms (Analog Input > Main Bus > Analog Output)

  • 0 dBFS Reference

    +22 dBu

  • Frequency Response

    +/-0, -1 dB, 20 Hz to 20 kHz

  • Distortion (THD)

    <0.005%

  • Equivalent Input Noise (EIN)

    150Ohms termination: -128 dBu

  • Crosstalk

    Analog XLR input-input:
    105 dB at 1 kHz (min. gain)
    <-80 dB at 1kHz (max. gain)

    Analog XLR / TRS output-output:
    -100 dB at 1kHz

  • Signal-to-Noise Ratio

    92 dB

  • Output Noise (A-weighted) Muted Output

    -90 dBu

  • Dynamic Range

    Analog Input to Analog Output (One channel and main fader at unity, A-weighted): 109 dB
    Analog Input (Unity gain, to analog clipping, -60 dBFS signal, A-weighted): 111 dB
    Analog Output (To analog clipping, -60 dBFS signal, A-weighted): 111 dB

  • CMRR

    >70 dB at 1 kHz (60 dB gain)

  • Analog Inputs 1-32: Connectors

    1-24: XLR Balanced
    25-32: Combo XLR / TRS Balanced

  • Analog Inputs 1-32L: XLR Mic Pre

    Onyx+

  • Analog Inputs 1-32L: Input Impedance

    1-24: 3kOhms
    25-32: 3kOhms mic [XLR], 30kOhms line [1/4"]

  • Analog Inputs 1-32L: Max Input Level

    XLR: +21 dBu
    1/4": +30 dBu

  • Analog Inputs 1-32L: Gain

    XLR: 0 to 60 dB [3 dB steps]
    1/4": -20 to 40 dB [3 dB steps

  • Analog Inputs 1-32L: 48V Phantom Power

    48 VDC, 10 mA max per mic, with up to 16 simultaneously
    5mA max per mic, with up to 32 simultaneously
    Individual digital controller per channel

  • Analog Outputs 1-12: Connectors

    XLR Balanced

  • Analog Outputs 1-12: Output Impedance

    600Ohms

  • Analog Outputs 1-12: Max Output Level

    +21 dBu

  • Analog Monitor Outputs L/R: Connectors

    1/4" TRS Impedance Balanced [Supports balanced / unbalanced operation]

  • Analog Monitor Outputs L/R:O/P Impedance

    240Ohms Balanced
    120Ohms Unbalanced

  • Analog Monitor Outputs L/R:Max O/P Level

    +21 dBu

  • Analog Headphone Out: Connector

    1/4" TRS Stereo

  • Analog Headphone Out: Max Output Level

    18 dBu into 600Ohms
    +19.5 dBu max into 100kOhms

  • AES Output: Format

    AES3 Professional, 48 kHz, 24-bit stereo

  • AES Output: Connector

    XLR Balanced

  • AES Output: Output Impedance

    110Ohms

  • USB Streaming: Connection

    USB 2.0 High Speed (as a device)

  • USB Streaming: Connector

    USB-B

  • USB Streaming: Supported MS Windows

    Windows 7, 8

  • USB Streaming: Supported Mac OS

    OS X 10.8.4, 10.9 [Audio Class 2.0 Compliant]

  • USB Streaming: Audio

    32 in / 32 out, 48 kHz, 16/24-bit

  • USB - HDD Recording/Playback: Connection

    USB 2.0 High Speed (as a host)

  • USB - HDD Recording/Playback: Connector

    USB-A

  • USB - HDD Recording/Playback: Audio

    1-24 channel, 48 kHz, 16/24-bit (multichannel .wav)

  • USB-HDD Record/Playback:Supported Device

    USB 2.0 / 3.0 Class Compliant HDD

  • USB - HDD Recording/Playback: HDD Format

    FAT32

  • USB - HDD Recording/Playback: Bus Power

    5V, 1A max

  • Networking: Connection

    100MB Ethernet

  • Networking: Control

    Complete

  • Networking: Simultaneous Control

    10 iOS Devices

  • iOS Version Requirement

    For optimal performance, we suggest using the latest iOS version [iOS 7.1 minimum]

  • iPad Version Requirement Wireless

    iPad 2, iPad (3rd generation), iPad (4th generation), iPad mini, iPad mini 2, iPad mini 3, iPad mini retina, iPad Air, iPad Air 2, Future iPad devices

  • iPhone/iPod touch Version Requirement

    "Phone 4, iPhone 4S, iPhone 5, iPhone 5c, iPhone 6, iPhone 6 Plus, iPod touch (4th and 5th generation), Future iPhone and iPod touch devices

  • Power Requirements

    100 VAC - 240 VAC, 50 - 60 Hz, Universal Supply

  • Power Consumption

    100 watts max

  • Line Cord

    User-replaceable IEC

  • Operating Temperature

    0 to 40deg. C / 32 to 104deg. F

  • Rack

    3U Rack Spaces

  • Dimensions (H x W x D)

    5.4 x 19.0 x 17.5" / 13.72 x 48.26 x 44.45cm

  • Weight

    18lbs / 8.16kg

  • UPC Code

    663961044607

About Mackie DL32R

The DL32R delivers 32-channels of powerful digital mixing that's completely controlled wirelessly from your iPad, freeing you to get in the mix like never before. It's got convenient direct-to-drive multi-track recording/playback and an ultra-compact 3U rackmount design that lets you ditch the snake once and for all.

Fully loaded with DSP on each of the 32 Onyx+ mic pres and 28 busses, the DL32R provides the power needed for professional applications. The industry-proven Master Fader control app delivers extremely intuitive control over everything, including the ability to digitally recall each and every setting for incredibly fast setup. Control everything from anywhere with the Mackie DL32R.

32-Channel Wireless Digital Mixer
• 32 Onyx+ recallable mic pres with wireless control
• 14 fully-assignable XLR outputs
• Stereo AES digital output
• Total recall of all settings
• 3U rackmount design ready for road or install
• Card slot for Dante expansion card

Wireless Mixing
• Complete control from your iPad
• No set FOH position - mix from anywhere
• Personal monitor mixing via iPad, iPhone or iPod touch
• Supports up to 10 separate iOS devices at once
• Multiple engineers can work from a single mixer
• Ditch the snake - place the mixer anywhere

Multi-Track Recording & Playback
• 32x32 USB 2.0 audio interface for Mac or PC
• 24x24 recording/playback direct to USB 2.0 hard drive
• Wireless control over all direct-to-disk recording/ playback functions
• Record the show for later mixdown
• Play back intermission music and backing tracks
• Perform a virtual soundcheck
• Amazing recording interface for the studio
• Utilize Mac or PC audio plug-ins in a live environment

Fully-Loaded DSP
• 36 input channels with 4-band PEQ + HPF, gate and compression: 32 stereo-linkable input channels, 4 stereo-linkable return channels
• 28 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter and alignment delay: 14 stereo-linkable aux sends, 6 stereo-linkable matrix busses, 6 stereo-linkable subgroups, Main L/R busses
• 6 VCAs and 6 mute groups
• 3 stereo FX processors with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• Modern and Vintage options per processor

Master Fader Control App
• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access limiting prevents unwanted adjustments
• Complete offline operation
• Easy and frequent updates via App Store


Software Bundle

- Pro Tools | First -
An industry standard for decades, Pro Tools | First is easy enough for beginners yet sophisticated enough for experienced musicians. Get many of the same tools used by your favorite artists and recording studios. And now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Available for MacOS and Windows operating systems.

Make Music Everywhere
Meet the new Pro Tools | First
Want to make great sounding music? Start off right with this free recording software. Get many of the same tools used by your favorite artists and recording studios. And now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Making music has never been so easy-or fun.


- Musician Collection (23 Plug-ins) -
In addition to the powerful plug-ins within Pro Tools | First, you get the exclusive Mackie Musician Collection featuring 23 fantastic plug-ins.

The Musician Collection is full of great-sounding plug-ins that are perfect for guitar, bass, vocals, drums, and more. The extensive list of plug-ins includes the renowned 304E EQ and 304C Compressor, Eleven Lite, and Studio Reverb plus fun pedal plug-ins like Black Op Distortion, Gray Compressor, and Green JRC Overdrive.

• 304E EQ / 304C Compressor bundle
• BBD Delay, Black Op Distortion, Black Shiny Wah, Black Spring Reverb, C1 Chorus, DC Distortion, Eleven Lite, Flanger, Graphic EQ, Gray Compressor, Green JRC Overdrive, In-Tune, Orange Phaser, Roto Speaker, Sci-Fi, Studio Reverb, Tape Echo, Tri Knob Fuzz, Vari-Fi, Vibe, Phaser, and White Boost

Note: Requires a new Pro Tools | First subscription at no cost


- Waveform OEM -
OEM software just got a whole lot more capable. Waveform OEM is a multi award winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical 'Lite' versions, we do not impose any restrictions - you get unlimited track count, powerful features, compatibility with all popular plugins and efficient performance on Mac, Windows and Linux operating systems. Only available as part of our OEM partner sales programs.


- DAW Essentials Collection (16 Plug-ins) -
Introducing a collection of 16 contemporary FX plugins for use with any DAW. Utilizing the very latest algorithms and coding techniques, the plugins feature extraordinary sound quality in an extremely efficient package, allowing the plugins to be used liberally across a wide range of native computer systems. Empower your creativity with the DAW Essentials Collection.

What's in the box:

  • DL32R 32-Channel Wireless Digital Live Sound Mixer
  • Power Cord
  • Pro Tools | First
  • Musician Collection (23 Plug-ins)
  • Waveform OEM
  • DAW Essentials Collection (16 FX Plug-ins)
  • Mackie 1 Year Limited Warranty
