Mackie DL Dante Expansion Card for DL32R Mixer
See all Mackie items

Mackie DL Dante Expansion Card for DL32R Mixer

SKU: MADLDNTEXPC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Mackie DL DANTE EXPANSION CARD Specifications

  • Compatibility

    Mackie DL32R Mixer

  • Dimensions (H x W x D)

    1.7 x 5.8 x 4.8" / 4.32 x 14.73 x 12.19cm

  • Weight

    1lbs / 0.45kg

  • UPC Code

    663961045840

About Mackie DL DANTE EXPANSION CARD

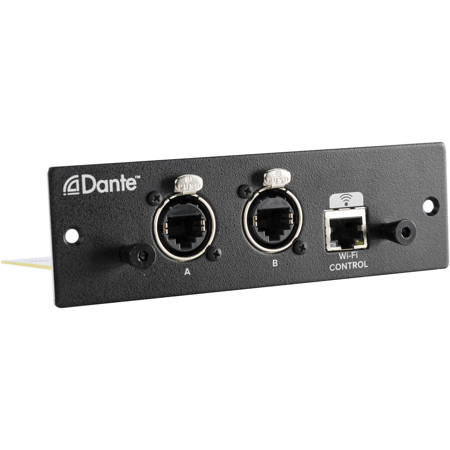

The Mackie DL Dante Expansion card connects the DL32R 32-Channel Digital Live Sound mixer to any Dante-enabled audio network. Dante is the de facto standard in digital audio networking, delivering unmatched audio quality, extremely flexible routing and offers significant cost savings compared to traditional analog cable runs.

With 32x32 channels of Dante I/O, the user can route Dante inputs like microphones and other sources to any channel on the DL32R. It's also perfect for sending any DL32R signal to Dante enabled loudspeaker systems and amplifiers. The card features dual Dante ports for daisy chaining or system redundancy and a dedicated Wi-Fi control port that eliminates the need for an Ethernet switch in many situations.

The DL Dante Expansion Card includes Dante Virtual Sound Card, which enables multi-tracking recording / playback between Dante and a Mac or PC. With flawless interoperation with hundreds of Dante-enabled products and a rock solid, glitch-free operation, the DL Dante Expansion Card truly expands the DL32R's functionality and application-flexibility in any professional environment.

Mackie DL DANTE EXPANSION CARD Features

  • 32x32 48 kHz digital audio interface connecting the Mackie DL32R to a Dante network using Cat5e
  • Route any signal to the Dante network from the DL32R using Master Fader control software
  • Dual Ethercon connectors for Dante daisy-chaining or redundant Dante mode
  • Dedicated Wi-Fi control port eliminates need for Ethernet switch in many applications
  • Automatic device discovery and custom channel naming with easy one click routing using Dante Controller software for Mac and PC
  • Extremely stable, glitch-free low-latency design
  • Includes Dante Virtual Soundcard for recording and playback of up to 64x64 channels via Mac or PC
  • Use simultaneously with DL32R USB I/O for total routing and recording control
  • Simple two-screw user installation
  • 1x RJ45 Gigabit Ethernet Wi-Fi Control Port
  • Supports Dante Redundant and Switch modes
  • Configuration via Dante Controller

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Use simultaneously

What's in the box:

  • Mackie DL Dante Expansion Card for DL32R Mixer
  • Dante Virtual Soundcard
  • Mackie 1 Year Limited Warranty
