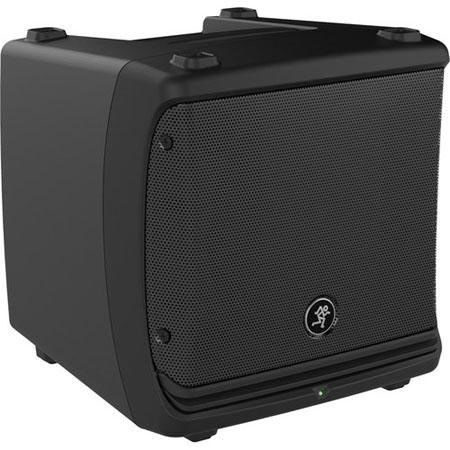

Mackie DLM8 Full-Range 8" Powered Loudspeaker, 1,000W RMS/2,000W Peak, 65 Hz to 20 kHz Frequency Response

SKU: MADLM8 MFR: DLM8
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this Mackie 8" powered loudspeaker, perfect for DJs.
  • Get crystal-clear audio with the DLM8's wide 65 Hz - 20 kHz frequency response.
  • This active PA speaker boasts 2000W peak power, ensuring your music is heard.
  • Easily connect instruments via Hi-Z input on this versatile Mackie PA speaker.
  • Customize your sound with the built-in digital mixer and EQ settings.
  • Durable and portable, this Mackie loudspeaker is ideal for gigs and events.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Mackie DLM8 Specifications

  • Active or Passive

    Active Class-D amplification

  • Power Output

    1,000W RMS
    2,000W peak

  • Low Frequency Driver

    8" (203 mm) woofer
    2" (51 mm) voice coil diameter
    Paper diaphragm
    Ferrite magnet

  • High Frequency Driver

    1.75" (44 mm) compression driver
    1" (25 mm) horn entry diameter
    Polyimide film diaphragm
    Ferrite magnet

  • Frequency Response

    65 Hz to 20 kHz (-10 dB)

  • Maximum Sound Pressure Level (SPL)

    125 dB at 1 m, calculated

  • Crossover

    1.6 kHz

  • Dispersion

    90deg. conical

  • Equalization

    Low shelving: +/-15 dB at 80 Hz
    Mid-peaking: +/-15 dB at 2.5 kHz
    High shelving: +/-15 dB at 12 kHz
    Increments: +/-3 dB

  • Amplifier Power: Low Freq. Amplifier

    500W RMS, 1,000W peak
    Rated THD: < 1%
    Cooling: multi-speed fan
    Class D design

  • Amplifier Power: High Freq. Amplifier

    500W RMS, 1,000W peak
    Rated THD: < 1%
    Cooling: multi-speed fan
    Class D design

  • Audio Inputs

    1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable)
    1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input)
    2 x RCA phono - Channel 2 (1 x L/R)

  • Input Impedances: Channel 1

    Mic: 3.3k Ohms balanced
    Line: 20k Ohms balanced, 10k Ohms unbalanced
    1/4" TRS: 16k Ohms balanced, 8k Ohms unbalanced

  • Input Impedances: Channel 2

    XLR Line: 20k Ohms balanced, 10k Ohms unbalanced
    1/4" TRS [Hi-Z instrument]: 1M Ohms unbalanced
    RCA: 25k Ohms unbalanced

  • Audio Output

    1 x XLR - Thru (switchable output, channel 1 or mix)

  • Mixer Section

    DL2 Digital Mixer System Processing:
    EQ: 6 speaker modes
    Alignment delay: 0 to 300 ms
    FX: 16 presets
    Multi-band feedback destroyer: On / Off / Clear / Hold
    Memory: 3 locations for instant venue setting recall and factory reset

  • Power Requirements

    100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W

  • AC Plug Style

    3-pin IEC 250VAC

  • Operating Temperature Range

    32 to 104deg.F (0 to 40deg.C), extended ambient temperature

  • Construction

    PC-ABS cabinet
    High durability black paint finish
    Top handle
    Powder-coated 20 gauge steel grille
    Three M10 x 17 mm fly points
    50deg. monitor angle (using integrated kickstand)

  • Mounting Options

    Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points

  • Dimensions (HxWxD)

    12.3x12.1x11.9" (312.4x307.3x302.3mm)

  • Weight

    22 lbs (10 kg)

  • UPC Code

    663961036251

1 Accessories for Mackie DLM8 Full-Range 8" Powered Loudspeaker, 1,000W RMS/2,000W Peak, 65 Hz to 20 kHz Frequency Response

  • All Accessories (1)
  • Brackets & Mounts (1)

About Mackie DLM8

Be immersed in the superior sound quality of the Mackie DLM8 Full-Range 8" Powered Loudspeaker, a high-performance audio device engineered to deliver 1,000 watts of RMS power and an impressive 2,000 watts of peak power. This compact and portable loudspeaker is designed with the innovative TruSource driver technology, seamlessly integrating an 8" low-frequency driver and a 1.75" compression driver into a common-magnet design for a robust and dynamic audio experience.

Experience the precision of the TruSource DSP, a feature that ensures crystal clear sound, consistent dispersion, and high fidelity audio across a frequency response range of 65 Hz to 20 kHz. The DLM8 is equipped with an integrated DL2 digital mixer, a 2-channel mixer that offers versatile connection options for a variety of audio sources.

Enhance your audio output with the DLM8's comprehensive sound control features, including a 3-band EQ, 16 effects presets, and a feedback destroyer. Choose from 6 speaker modes to suit your audio needs and rely on the Smart Protect technology for added device safety.

The DLM8 offers flexible mounting options for diverse usage scenarios. It can be pole or wall-mounted for stationary use, or utilize the integrated kickstand for use as a wedge-style monitor. For more complex audio setups, the DLM8's M10 mounting points allow for fly installations, making it an ideal choice for professional audio setups. Experience the power and versatility of the Mackie DLM8 Full-Range 8" Powered Loudspeaker, a reliable solution for your high-quality audio needs.

Mackie DLM8 Features

  • The DLM8 features the powerful, one-touch DL2 digital mixer. It has a bright OLED screen and two versatile input channels with effects. It handles mic, line and Hi-Z instrument signals on XLR, 1/4" TRS and RCA connectors
  • Multi-band feedback destroyer
  • Six speaker modes let you select the right voicing for your application
  • Alignment delay up to 300ms for delay stack, balcony, etc
  • Three memory locations for instant venue setting recall
  • Smart Protect DSP dynamically protects the amplifiers and drivers

Warranty Information

This product has a limited warranty of 36 months for parts and 12 months for labor.

Key Features

  • Experience powerful sound with this Mackie 8" powered loudspeaker, perfect for DJs.
  • Get crystal-clear audio with the DLM8's wide 65 Hz - 20 kHz frequency response.
  • This active PA speaker boasts 2000W peak power, ensuring your music is heard.
  • Easily connect instruments via Hi-Z input on this versatile Mackie PA speaker.
  • Customize your sound with the built-in digital mixer and EQ settings.
  • Durable and portable, this Mackie loudspeaker is ideal for gigs and events.
