Marani DPA2655QR 2 Input and 6 Output Speaker Management System with Matrix Mixer, 20Hz-20kHz Frequency Response

SKU: MADPA2655QR MFR: DPA2655QR
Earn VIP Reward Points

Key Features

  • Optimize sound with 2 inputs & 6 outputs on this speaker management system.
  • Achieve pristine audio with a frequency response of 20Hz-20kHz for studio use.
  • Enjoy matrix mixing for flexible audio routing in your recording setup today.
  • Utilize parametric equalization with 5 filters per input for precise sound shaping.
  • Control your sound remotely, making live adjustments a breeze for any audio engineer.
  • Ensure peak performance with RMS compressor & peak limiter for clear, crisp audio.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marani DPA2655QR Specifications

  • Analog Input

    2 x XLR electronically balanced

  • Analog Output

    6 x XLR electronically balanced

  • Digital Input

    1 SPDIF; Gain 0dBu

  • Minimum Load

    150 Ohms

  • THD+N

    0.001% at 1kHz 0dBu

  • S/N

    >110dBA

  • Frequency Response

    20Hz - 20kHz; -0.5dBu at 20Hz and 20kHz

  • AD & DA Converters

    1x AK5388 24bit, 3x AK4396 24bit

  • DSP Engine

    Dream SAM3716, 24bit (data) x 96 bit (coeff.)

  • DSP Resolution

    24x32 bit for filtering process 96 bits resolution on intermediate computation results

  • Parametric Equalization

    5 filters per input selected as Bell or Shelving
    7 filters per output selected as Bell or Shelving

  • Filter Type

    Bell, 1st /2nd Order Shelvings with -3dB at cutting Freq.; Symmetrical Shelving with variable Q; Low/High-Pass with variable Q, 1st /2nd Order; All-Pass (90 deg. /180 deg. Phase rotation at the cutting freq.), Band-Pass and Notch.

  • Filter Gain

    From -15dBu up to +15dBu by 0.5dBu resolution steps

  • Center Frequency

    Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz

  • Filter Q/BW

    Q from 0.5 up to 3 by 0.05 resolution steps

  • Crossover Section HPF/LPF

    Butterworth 6/12/18/24dB per octave
    Bessel, Linkwitz-Riley and custom 12/18/24/48dB per octave
    Filter resolution 1/24th of octave

  • RMS Compressor and Peak Limiter

    Threshold from 20dBu up to -10dBu
    Attack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to
    100ms and 20ms resolution up to 200ms)
    Release time from 0.1 sec up to 3 sec (0.1sec resolution)
    Ratio from 1:1 to 32:1 (Compressor only)
    Adjustable Soft or Hard Knee (Compressor only)

  • Delay

    848,998 ms 21us increment/decrement steps per channel

  • Device Presets

    64 User Presets

  • Front Panel

    2x24 character LCD display with green LED backlight
    7-LED meter per input channel -20dBu to +15dBu, clip
    7-LED meter per output channel -15dBu to +15dBu, clip or limiter mode
    Blue LED (Edit) and Red LED (Mute) per channel
    NAV/PM1 Rotary encoder push button switch
    PM2, PM3, ENTER, ESC, UTILITY push button switches
    EDIT/MUTE push button per channel
    USB type B connector

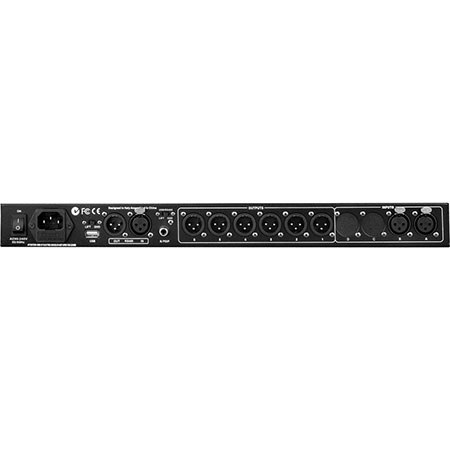

  • Rear Panel

    2 x XLR female connector (Input)
    6 x XLR male connector (Output)
    1 x RCA connector (SPDIF input)
    1 x RJ45 for Ethernet connection (10/100 TCP-IP)
    2 x Ground-lift toggle switchs (MAIN and USB-TCP/IP)
    IEC C13 16A connector; Power on/off switch

  • Main AC

    90-240VAC (50/60Hz) - 40W

  • Dimensions

    19 x 1.75 x 9" (482.6 x 44.45 x 228.6mm) 1RU

  • Weight

    7.71 lbs (3.49Kg)

  • UPC Code

    6954798526553

About Marani DPA2655QR

From live performances to sophisticated fixed installations, the Marani DPA2655QR Speaker Management System stands as a versatile and essential tool for audio professionals. Engineered for optimal flexibility, this advanced system delivers comprehensive processing and control capabilities to meet the demands of both dynamic live events and the precision required for fixed setups.

At the heart of the DPA2655QR lies a robust DSP Engine, ensuring seamless audio management across its 2 analog inputs, 6 analog outputs, and a digital S/PDIF input. High-fidelity sound is guaranteed with top-tier 24-bit AD/DA converters, achieving a pristine audio signal with a broad frequency response ranging from 20Hz to 20kHz.

Each input channel of the DPA2655QR is equipped with a 5-band Parametric EQ, allowing for meticulous sound shaping, alongside Gain control and configurable Delay to align audio perfectly in time and space. The output channels are equally impressive, each featuring up to 5 bands of parametric equalization. Users can sculpt the sound with precision, utilizing filter types such as Bell, Low/High Shelving, Low/High-Pass, All-Pass, Band-Pass, and Notch. The shelving and pass filters offer 1st and 2nd order selections with variable Q responses, catering to a wide range of acoustic environments.

Crossover configurations are made simple and effective with filters that provide slopes from a gentle 6dB/Octave to a steep 24dB/Octave. These include industry-standard Butterworth, Bessel, Linkwitz-Riley, and customizable filter topologies, ensuring compatibility with virtually any speaker setup.

Dynamic range control is expertly handled by each output's precision Peak Limiter and RMS Compressor, featuring selectable ratios and variable knees for smooth and transparent sound limiting. The system also allows for up to 850 ms of adjustable Delay on every input and output channel, providing the ability to correct phase issues and align sound across different speaker zones.

The DPA2655QR's full matrix mixing capabilities enable users to route and mix inputs to any output in any ratio, offering unparalleled flexibility in sound design. Remote configuration and control are made possible through both USB and Ethernet connections, with the accompanying PC software facilitating the management of up to 32 units simultaneously, setting parameters and monitoring real-time levels.

For on-site adjustments, the front panel boasts an interactive LCD display and 7-LED level meter indicators per channel, ensuring quick and easy access to system settings. The system also features up to 64 storable user presets for rapid setup recall, and a security lockout function to prevent unauthorized changes.

Whether it's for a concert hall, theater, house of worship, or conference center, the Marani DPA2655QR Speaker Management System with Matrix Mixer is engineered to deliver exceptional audio control with precision and ease, making it an indispensable asset for any professional audio setup.

Marani DPA2655QR Features

  • Advanced DSP Engine for superior audio management across 2 analog inputs and 6 outputs
  • High-resolution 24-bit AD/DA converters for exceptional audio clarity with 20Hz-20kHz frequency response
  • Comprehensive EQ control with 5-band Parametric EQ on both input and output channels
  • Versatile crossover filters with slopes from 6dB/Octave to 24dB/Octave, including Butterworth and Linkwitz-Riley
  • Precision dynamic range control with Peak Limiter and RMS Compressor on each output
  • Full matrix mixing capabilities for flexible input-to-output routing and mixing with up to 850 ms delay correction

Product Documents

User Manual

Key Features

  • Optimize sound with 2 inputs & 6 outputs on this speaker management system.
  • Achieve pristine audio with a frequency response of 20Hz-20kHz for studio use.
  • Enjoy matrix mixing for flexible audio routing in your recording setup today.
  • Utilize parametric equalization with 5 filters per input for precise sound shaping.
  • Control your sound remotely, making live adjustments a breeze for any audio engineer.
  • Ensure peak performance with RMS compressor & peak limiter for clear, crisp audio.

What's in the box:

  • Marani DPA2655QR 2 Input and 6 Output Speaker Management System with Matrix Mixer
  • Remote Control
  • Power Cable
  • Marani 1 Year Limited Warranty
