Marani DPA2655QR 3 Input and 6 Output Speaker Management System with Matrix Mixer, 20Hz-20kHz Frequency Response

SKU: MADPA3655QR MFR: DPA3655QR
Earn VIP Reward Points

Key Features

  • Optimize your sound with this 3x6 speaker management system, perfect for live audio setups.
  • Achieve pristine audio clarity with a frequency response of 20Hz-20kHz for studio-quality sound.
  • Customize your sound with 5-band parametric EQ on inputs and 7-band EQ on outputs.
  • Enjoy versatile connectivity with XLR inputs/outputs & SPDIF, ideal for any recording studio.
  • Precise control with RMS compressor & peak limiter, ensuring your audio dynamics are perfect.
  • Seamlessly manage audio with user-friendly front panel LCD & software control via Ethernet.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marani DPA2655QR Specifications

  • Analog Input

    3 x XLR electronically balanced

  • Analog Output

    6 x XLR electronically balanced

  • Digital Input

    1 SPDIF; Gain 0dBu

  • Minimum Load

    150 Ohms

  • THD+N

    0.001% at 1kHz 0dBu

  • S/N

    >110dBA

  • Frequency Response

    20Hz - 20kHz; -0.5dBu at 20Hz and 20kHz

  • AD & DA Converters

    1x AK5388 24bit, 3x AK4396 24bit

  • DSP Engine

    Dream SAM3716, 24bit (data) x 96 bit (coeff.)

  • DSP Resolution

    24x32 bit for filtering process 96 bits resolution on intermediate computation results

  • Parametric Equalization

    5 filters per input selected as Bell or Shelving
    7 filters per output selected as Bell or Shelving

  • Filter Type

    Bell, 1st /2nd Order Shelvings with -3dB at cutting Freq.; Symmetrical Shelving with variable Q; Low/High-Pass with variable Q, 1st /2nd Order; All-Pass (90 deg. /180 deg. Phase rotation at the cutting freq.), Band-Pass and Notch.

  • Filter Gain

    From -15dBu up to +15dBu by 0.5dBu resolution steps

  • Center Frequency

    Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz

  • Filter Q/BW

    Q from 0.5 up to 3 by 0.05 resolution steps

  • Crossover Section HPF/LPF

    Butterworth 6/12/18/24dB per octave
    Bessel, Linkwitz-Riley and custom 12/18/24/48dB per octave
    Filter resolution 1/24th of octave

  • RMS Compressor and Peak Limiter

    Threshold from 20dBu up to -10dBu
    Attack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to
    100ms and 20ms resolution up to 200ms)
    Release time from 0.1 sec up to 3 sec (0.1sec resolution)
    Ratio from 1:1 to 32:1 (Compressor only)
    Adjustable Soft or Hard Knee (Compressor only)

  • Delay

    848,998 ms 21us increment/decrement steps per channel

  • Device Presets

    64 User Presets

  • Front Panel

    2x24 character LCD display with green LED backlight
    7-LED meter per input channel -20dBu to +15dBu, clip
    7-LED meter per output channel -15dBu to +15dBu, clip or limiter mode
    Blue LED (Edit) and Red LED (Mute) per channel
    NAV/PM1 Rotary encoder push button switch
    PM2, PM3, ENTER, ESC, UTILITY push button switches
    EDIT/MUTE push button per channel
    USB type B connector

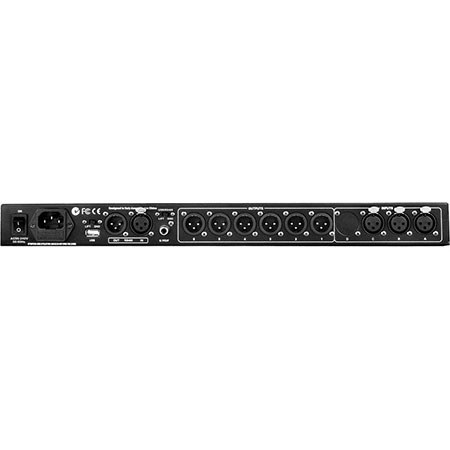

  • Rear Panel

    3 x XLR female connector (Input)
    6 x XLR male connector (Output)
    1 x RCA connector (SPDIF input)
    1 x RJ45 for Ethernet connection (10/100 TCP-IP)
    2 x Ground-lift toggle switchs (MAIN and USB-TCP/IP)
    IEC C13 16A connector; Power on/off switch

  • Main AC

    90-240VAC (50/60Hz) - 40W

  • Dimensions

    19 x 1.75 x 9" (482.6 x 44.45 x 228.6mm) 1RU

  • Weight

    7.71 lbs (3.49Kg)

  • UPC Code

    6954798536552

About Marani DPA2655QR

What sets the Marani DPA2655QR 3 Input and 6 Output Speaker Management System with Matrix Mixer apart is its advanced design and sophisticated technology, tailored for both live performances and fixed installations. This high-tech audio management system is equipped with a powerful DSP Engine and top-grade 24Bit AD/DA Converters, ensuring superior sound quality and performance.

The DPA2655QR features three analog inputs, six analog outputs, and a digital S/PDIF input, providing a comprehensive solution for any crossover configuration. Each input channel is equipped with a 5-band parametric equalizer, gain control, and configurable delay, offering precise control over your audio signals.

The system's six outputs also boast a 5-band parametric equalizer, along with crossover filters that provide slopes from 6dB/Octave up to 24dB/Octave. Each output path is further enhanced with an RMS Compressor, Peak Limiter, and configurable delay, ensuring optimal sound output.

One of the standout features of the DPA2655QR is its full matrix mixing mode, which allows for flexible routing and mixing of inputs to any output in any ratio. This innovative feature makes it an ideal choice for professional settings where multiple audio sources need to be managed simultaneously.

For remote configuration and control, the DPA2655QR offers both USB and Ethernet connectivity. The accompanying remote PC software enables simultaneous control of up to 32 units, providing real-time levels and parameter settings.

The front panel of the DPA2655QR is designed for easy access and configuration, featuring an interactive LCD display and 7-LED level meter indicators per channel. The system also supports up to 64 storable user presets and includes a security lockout feature for added safety.

In summary, the Marani DPA2655QR 3 Input and 6 Output Speaker Management System with Matrix Mixer is a professional, high-tech solution for managing and controlling multiple audio inputs and outputs, offering superior sound quality and performance across a wide frequency response range of 20Hz-20kHz.

Marani DPA2655QR Features

  • Advanced speaker management system with 3 inputs and 6 outputs for professional audio control
  • Full matrix mixer for flexible routing and mixing of multiple audio sources
  • High-performance DSP Engine and 24Bit AD/DA Converters for superior sound quality
  • Comprehensive equalization options with 5-band parametric equalizer per input and output channel
  • Remote configuration and control via USB or Ethernet connectivity
  • Interactive front panel LCD display and up to 64 storable user presets for easy customization

Product Documents

User Manual

Key Features

  • Optimize your sound with this 3x6 speaker management system, perfect for live audio setups.
  • Achieve pristine audio clarity with a frequency response of 20Hz-20kHz for studio-quality sound.
  • Customize your sound with 5-band parametric EQ on inputs and 7-band EQ on outputs.
  • Enjoy versatile connectivity with XLR inputs/outputs & SPDIF, ideal for any recording studio.
  • Precise control with RMS compressor & peak limiter, ensuring your audio dynamics are perfect.
  • Seamlessly manage audio with user-friendly front panel LCD & software control via Ethernet.

What's in the box:

  • Marani DPA2655QR 3 Input and 6 Output Speaker Management System with Matrix Mixer
  • Remote Control
  • Power Cable
  • Marani 1 Year Limited Warranty
