Marani DPA480 4 Input and 8 Output XLR Speaker Management System with Matrix Mixer, 20Hz-20kHz Frequency Response

SKU: MADPA480 MFR: DPA480
Earn VIP Reward Points

Key Features

  • Optimize sound with the Marani DPA480's 4-input, 8-output speaker management system.
  • Achieve pristine audio: XLR ensures low noise, high-quality connectivity for studio use.
  • Fine-tune frequencies with a 20Hz-20kHz response, perfect for detailed sound shaping.
  • Enjoy user-friendly control via the front panel LCD and intuitive interface design.
  • Create custom soundscapes with versatile parametric equalization and filter options.
  • Ensure durability and reliability with robust build quality for lasting performance.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marani DPA480 Specifications

  • Analog Input

    4 x XLR electronically balanced

  • Analog Output

    8 x XLR electronically balanced

  • Digital Input

    2 SPDIF; Gain 0dBu

  • Minimum Load

    150 Ohms

  • THD+N

    0.001% at 1kHz 0dBu

  • S/N

    >110dBA

  • Frequency Response

    20Hz - 20kHz; -0.5dBu at 20Hz and 20kHz

  • AD & DA Converters

    1x AK5388 24bit, 3x AK4396 24bit

  • DSP Engine

    Dream SAM3716, 24bit (data) x 96 bit (coeff.)

  • DSP Resolution

    24x32 bit for filtering process 96 bits resolution on intermediate computation results

  • Parametric Equalization

    5 filters per input selected as Bell or Shelving
    7 filters per output selected as Bell or Shelving

  • Filter Type

    Bell, 1st /2nd Order Shelvings with -3dB at cutting Freq.; Symmetrical Shelving with variable Q; Low/High-Pass with variable Q, 1st /2nd Order; All-Pass (90 deg. /180 deg. Phase rotation at the cutting freq.), Band-Pass and Notch.

  • Filter Gain

    From -15dBu up to +15dBu by 0.5dBu resolution steps

  • Center Frequency

    Selectable with a 1/24th of octave resolution step from 20Hz up to 20kHz

  • Filter Q/BW

    Q from 0.5 up to 3 by 0.05 resolution steps

  • Crossover Section HPF/LPF

    Butterworth 6/12/18/24dB per octave
    Bessel, Linkwitz-Riley and custom 12/18/24/48dB per octave
    Filter resolution 1/24th of octave

  • RMS Compressor and Peak Limiter

    Threshold from 20dBu up to -10dBu
    Attack time from 5ms up to 200ms (1ms resolution up to 20ms, 10ms resolution up to
    100ms and 20ms resolution up to 200ms)
    Release time from 0.1 sec up to 3 sec (0.1sec resolution)
    Ratio from 1:1 to 32:1 (Compressor only)
    Adjustable Soft or Hard Knee (Compressor only)

  • Delay

    848,998 ms 21us increment/decrement steps per channel

  • Device Presets

    8 User Presets + 8 Memory Card

  • Front Panel

    2x24 character LCD display with green LED backlight
    7-LED meter per input channel -20dBu to +15dBu, clip
    7-LED meter per output channel -15dBu to +15dBu, clip or limiter mode
    Blue LED (Edit) and Red LED (Mute) per channel
    NAV/PM1 Rotary encoder push button switch
    PM2, PM3, ENTER, ESC, UTILITY push button switches
    EDIT/MUTE push button per channel
    USB type B connector

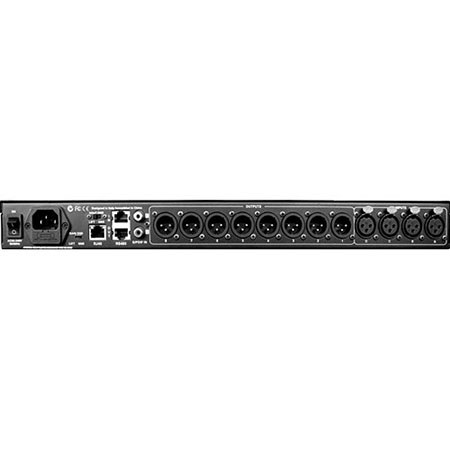

  • Rear Panel

    4 x XLR female connector (Input)
    8 x XLR male connector (Output)
    1 x RCA connector (SPDIF input)
    1 x RJ45 for Ethernet connection (10/100 TCP-IP)
    2 x Ground-lift toggle switchs (MAIN and USB-TCP/IP)
    IEC C13 16A connector; Power on/off switch

  • Main AC

    90-240VAC (50/60Hz) - 40W

  • Dimensions

    19 x 1.75 x 9" (482.6 x 44.45 x 228.6mm) 1RU

  • Weight

    7.71 lbs (3.49Kg)

  • UPC Code

    6954798504803

About Marani DPA480

Let the Marani DPA480 4 Input and 8 Output XLR Speaker Management System with Matrix Mixer elevate your audio experience. This versatile system is expertly designed for both live performances and fixed installations, offering a comprehensive suite of processing and control features.

The DPA480 is equipped with 4 analog inputs, 8 analog outputs, and 2 digital S/PDIF inputs, all managed by a top-grade DSP Engine. The system also boasts high-performance 24-bit AD/DA converters, ensuring outstanding sonic performance.

Each input channel of the DPA480 offers a 5-band parametric equalizer, noise gate function, gain control, and configurable delay. The system also includes a Pink/White noise internal generator, a useful tool for tuning sound reinforcement systems during installation.

The output channels are equally impressive, offering up to 7 bands of parametric equalization. The crossover filters provide slopes ranging from 6dB/Octave up to 48dB/Octave. Each output path features an RMS compressor, Peak Limiter, and configurable delay, providing you with complete control over your sound.

The DPA480's full matrix mixing mode allows inputs to be routed/mixed in any ratio to any output. For remote configuration and control, the system can be connected via Ethernet, USB, or RS485. The remote PC software enables simultaneous control of up to 32 units, setting all parameters and displaying real-time levels.

The front panel of the DPA480 features an interactive LCD display for local access and configuration, 7-LED level meter indicators per channel, and a Memory Card reader/writer for preset storage. The system also includes a security lockout feature for added protection.

Experience the superior sound quality and control of the Marani DPA480 4 Input and 8 Output XLR Speaker Management System with Matrix Mixer.

Marani DPA480 Features

  • Advanced 4x8 XLR Matrix Mixer for live and installation audio management
  • High-fidelity audio with 24-bit AD/DA converters and 48kHz sample rate
  • Comprehensive DSP Engine with 5-band EQ on inputs and 7-band EQ on outputs
  • Full matrix mixing capabilities for flexible input to output routing
  • Extensive dynamic range control with RMS compressor and Peak Limiter
  • Remote system control via Ethernet, USB, or RS485 with PC software support

Product Documents

User Manual

Key Features

  • Optimize sound with the Marani DPA480's 4-input, 8-output speaker management system.
  • Achieve pristine audio: XLR ensures low noise, high-quality connectivity for studio use.
  • Fine-tune frequencies with a 20Hz-20kHz response, perfect for detailed sound shaping.
  • Enjoy user-friendly control via the front panel LCD and intuitive interface design.
  • Create custom soundscapes with versatile parametric equalization and filter options.
  • Ensure durability and reliability with robust build quality for lasting performance.

What's in the box:

  • Marani DPA480 4 Input and 8 Output XLR Speaker Management System with Matrix Mixer
  • VAC Power Cord
  • Marani 1 Year Limited Warranty
