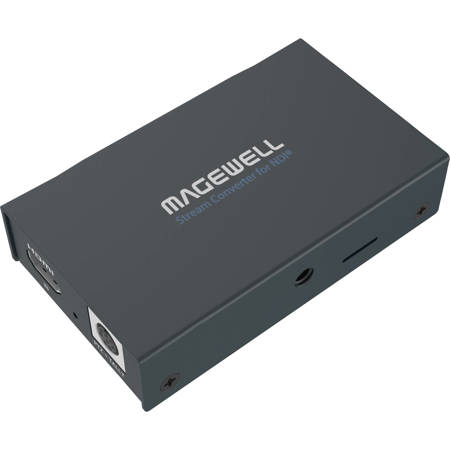

Magewell Pro Convert HDMI TX 1-Channel HDMI to NDI Encoder

SKU: MAG64050 MFR: 64050
Earn VIP Reward Points

Key Features

  • Effortlessly convert HDMI to NDI with this Magewell encoder for seamless video workflows.
  • Achieve high-quality, real-time transmission with stable connections using this HDMI to NDI converter.
  • Enjoy broad compatibility with NDI-enabled software like OBS and vMix for versatile video capture.
  • Remotely control PTZ cameras via NDI protocols, including VISCA and PELCO, for added flexibility.
  • This durable video format converter supports up to 2048x1200 resolution at 60fps for crisp video.
  • Easily manage configurations via WebUI or Control Hub, ensuring optimal video format conversion.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-04-04T12:30:14

Rated 4 out of 5

Easy to setup and use.

This is an excellent product - easy to set up and use. Appears well built and plan on getting more when budget allows. That's the only drawback at this time is the cost, but it appears everyone in this marketplace is priced the same.

ROSE S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Magewell Pro Convert Specifications

  • Color

    Black

  • Input Features

    Max video input: 2048x1200 60fps 4:4:4/4:2:2
    Input video at any format by custom EDID of input port
    Video formats: RGB, YUV BT.601/709/2020
    8-channel HDMI-embedded audio
    HDMI interface: HDMI 1.4, DVI-D

  • NDI Encoding Features

    Encoding Full NDI real-time stream at up to 2048x1200 60fps 4:2:2 8-bit

    Output the same resolution as input or any custom resolution. Typical outputs include:
    2048x1080p/1920x1080p 23.98/24/25/29.97/30/50/59.94/60
    1920x1080i 25/29.97/30/50/59.94/60

  • NDI Encoding Features (Contd.)

    1280x720p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
    720x480p/720x480i 59.94/60/119.88/120
    720x576p/720x576i 50/100

    Output frame rate same as the original, 1/2, 1/3 or 1/4 of input frame rate
    Encoding 2-channel NDI-embedded audio
    Support NDI 5.x

  • Configuration Management

    Register with Control Hub
    Remote control via WebUI and Control Hub
    Provide comprehensive information regarding the device and input signals in real-time
    Allow to configure how an input is processed and encoded, including deinterlacing, EDID, up/down scaling, frame rate, aspect ratio, as well as the network connection

  • Configuration Management (Contd.)

    Update firmware
    Support USB RNDIS/ECM
    Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
    Provide HTTP APIs

  • On-board Control Buttons

    16 Position Rotary DIP Switch: set board-index from 0 to F

  • PTZ Control

    Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI
    Mini-DIN-8 jack (shared with Tally light)

  • Network Interfaces

    10/100/1000Mbps Ethernet
    IEEE 802.3af PoE

  • USB Interface

    USB2.0 Type-B:
    5V/2.1A power supply
    USB RNDIS/ECM

  • Supported Products

    NDI Studio Monitor
    OBS
    vMix
    Any other NDI-enabled product

  • LED Indicators

    Status LEDs indicate:
    Power supply: on/off
    Input signal: locked/unlocked

  • Screw Mounting Hole

    1/4-20 threaded hole

  • Power Consumption

    5V max current: -1.5A
    Max power consumption: -6W

  • Working Environment

    Operating temperature: 32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
    Storage temperature: -4 Degree F to 158 Degree F (-20 Degree C to 70 Degree C)
    Relative humidity: 5% to 90% non-condensing

  • Dimensions (L x W x H)

    3.97 x 2.37 x 0.92" (10.09 x 6.02 x 2.33cm)

About Magewell Pro Convert

Pro Convert HDMI TX of NDI encoders, built on NewTek's extremely popular NDI media-over-IP technology, help users reliably bring traditional video signals into IP-based live production and AV infrastructures. 2048x1200 60fps configurations with a choice of input interfaces, the converters enable users to easily and cost-effectively connect their existing equipment into NDI enabled networks

The ultra-compact Pro Convert HDMI TX is ideal for both in-studio and portable field use. Value-added features for live production applications include a 1/4"-20 thread for standard camera-mounting accessories, preview and program tally lights, and NDI-based PTZ camera control. The units can be powered by the included AC adapter or via Power over Ethernet (PoE) for further deployment simplicity.

Magewell Pro Convert Features

  • Supports up to 2048x1200 60fps input signals
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Effortlessly convert HDMI to NDI with this Magewell encoder for seamless video workflows.
  • Achieve high-quality, real-time transmission with stable connections using this HDMI to NDI converter.
  • Enjoy broad compatibility with NDI-enabled software like OBS and vMix for versatile video capture.
  • Remotely control PTZ cameras via NDI protocols, including VISCA and PELCO, for added flexibility.
  • This durable video format converter supports up to 2048x1200 resolution at 60fps for crisp video.
  • Easily manage configurations via WebUI or Control Hub, ensuring optimal video format conversion.

What's in the box:

  • Magewell Pro Convert HDMI TX 1-Channel HDMI to NDI Encoder
  • 5V/2.1A Power Adapter
  • USB Type-A to Type-B Cable
  • Mini-DIN8 to DIN8 + DB9 Cable
  • Tally Light
  • L Bracket
  • Magewell 2 Year Limited Warranty
