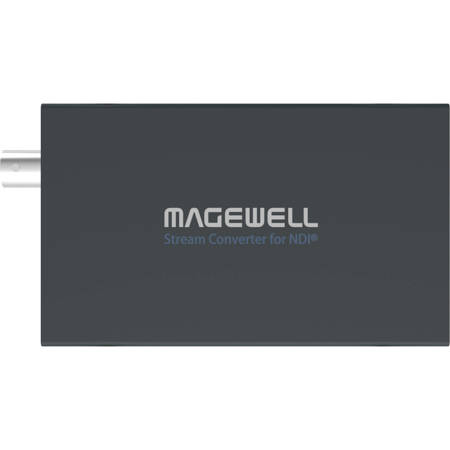

Magewell Pro Convert SDI TX 1-Channel 3G-SDI to NDI Encoder

SKU: MAG64060 MFR: 64060
Earn VIP Reward Points

Key Features

  • Effortlessly convert 3G-SDI to NDI with this video format converter for seamless streaming.
  • Enjoy high-resolution video output up to DCI 2K at 60fps with stable, reliable performance.
  • This easy to use Magewell encoder supports embedded audio with 16 channels for pristine sound.
  • This video capture device is compatible with Windows & macOS, offering great format compatibility.
  • Use the Pro Convert SDI TX for fast conversion, with PoE support for flexible power options.
  • Get good value with this SDI to NDI encoder, complete with tally light and mounting bracket.
See More Product Details
Special Order?Estimated to Ship: 10/29/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2021-04-04T12:30:14

Rated 4 out of 5

Easy to setup and use.

This is an excellent product - easy to set up and use. Appears well built and plan on getting more when budget allows. That's the only drawback at this time is the cost, but it appears everyone in this marketplace is priced the same.

ROSE S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Magewell Pro Convert Specifications

Inputs / Outputs

Inputs / Outputs

Jump to...
  • Video Inputs

    1x BNC (3G-SDI)

  • Video Outputs

    1x RJ45 (NDI)

  • Other I/O

    1x Mini-DIN 8-Pin PTZ, Tally (Shared)
    1x USB-B ECM, RNDIS Input (Shared Power USB-B)

Format Support

Jump to...
  • Input Video Format

    SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC): DCI 2K at 60 fps

  • Output Video Format

    RJ45 (8-Bit 4:2:2): DCI 2K at 60 fps

  • Embedded Audio

    SDI Input: 16-Channel
    NDI Output: 16-Channel

Standards

Jump to...
  • Video Standard Compliance

    SMPTE 259M/292M/425M

  • EDID Support

    Manual Control

Hardware

Jump to...
  • OS Compatibility

    Windows
    macOS

  • Power I/O

    1x USB-B (5 VDC at 2.1 A) Input

  • PoE Support

    PoE 802.3af

  • Power Consumption

    Device: 7 W

Environmental

Jump to...
  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Operating Humidity

    5 to 90%

General

Jump to...
  • Dimensions

    3.98 x 2.36 x 0.91" (10.1 x 6 x 2.3cm)

  • UPC Code

    0814395021201

About Magewell Pro Convert

Experience the power and efficiency of the Pro Convert SDI TX 1-Channel 3G-SDI to NDI Encoder, a state-of-the-art device designed to transform a single channel of 3G-SDI input signal into Full NDI Input. This advanced encoder supports up to 2048x1080 60fps input, ensuring high-resolution, smooth video transmission for professional applications.

The Pro Convert SDI TX Encoder is equipped with a 3G-SDI input and can handle up to 16 mono audio channels, providing a comprehensive solution for your audio-visual needs. Its NDI format supports up to 2048x1080 60fps 4:2:2 8-bit NDI encoding, enabling you to send NDI streams across network segments with ease.

One of the standout features of this encoder is its ability to remotely control PTZ cameras via NDI, offering you greater flexibility and control in your production setup. It also supports the latest NDI 5.x features, keeping you ahead of the technological curve.

The Pro Convert SDI TX Encoder boasts very low latency, ensuring real-time, seamless streaming. Its advanced configuration and device status can be easily managed through an intuitive Web GUI, simplifying the user experience. For live production applications, the encoder comes with tally lights and camera mounting options.

Furthermore, the encoder offers HTTP-based APIs for custom integration, making it a versatile addition to any professional audio-visual setup. Experience the difference with the Pro Convert SDI TX 1-Channel 3G-SDI to NDI Encoder, your solution for high-quality, efficient video encoding.

Magewell Pro Convert Features

  • Supports up to 2048x1080 60fps input signals
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Key Features

  • Effortlessly convert 3G-SDI to NDI with this video format converter for seamless streaming.
  • Enjoy high-resolution video output up to DCI 2K at 60fps with stable, reliable performance.
  • This easy to use Magewell encoder supports embedded audio with 16 channels for pristine sound.
  • This video capture device is compatible with Windows & macOS, offering great format compatibility.
  • Use the Pro Convert SDI TX for fast conversion, with PoE support for flexible power options.
  • Get good value with this SDI to NDI encoder, complete with tally light and mounting bracket.

What's in the box:

  • Magewell Pro Convert SDI TX 1-Channel 3G-SDI to NDI Encoder
  • 5V/2.1A Power Adapter
  • USB Type A to Type B Cable
  • Mini-DIN8 to DIN8 + DB9 Cable
  • Tally Light
  • L Bracket
  • Magewell 2 Year Limited Warranty
