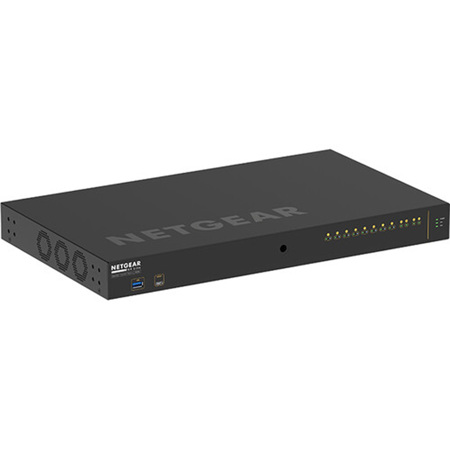

Marshall Electronics Netgear AV Line M4250-10G2XF-PoE++ 8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch

SKU: MAGSM4212UX

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics M4250-10G2XF-PoE++ Specifications

Interfaces

Interfaces

Jump to...
  • Ports

    8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 4)
    2x 10Gb SFP+
    2x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)
    2x USB Type-C (Console)
    1x USB Type-A

Protocols

Jump to...
  • Layer Services Supported

    Layer 2 Support, Layer 3 Support

  • Supported Protocols

    DHCP Server
    IGMP Snooping
    IPv4
    IPv6
    Link Aggregation
    Port Mirroring
    SNMPv1
    SNMPv2c
    SNMPv3

  • Jumbo Frames Support

    12,000 Bytes

  • MAC Address Table Size

    16K

  • VLAN Groups

    4093

Security

Jump to...
  • Security Features

    DHCP Snooping
    DoS Attack Prevention
    RADIUS Authentication
    Storm

  • Access Control List

    1024

  • SNMP Support

    1, 2, 3

Standards

Jump to...
  • Supported IEEE Standards

    802.1ab, 802.1ak, 802.1as, 802.1d, 802.1p, 802.1q, 802.1qat, 802.1qav, 802.1s, 802.1v, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ac, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3u

Performance

Jump to...
  • Latency

    0.8 to 1.8 micros

  • Forwarding Rate

    44.64 Mpps

  • Switching Bandwidth

    60 Gb/s

  • Packet Buffer

    16 Mb

Computer

Jump to...
  • Processor

    1.25 GHz ARM A9

  • Memory

    2 GB

Electrical

Jump to...
  • Power Draw

    837.7 W (Max)
    26.3 W (Idle)
    18.00 W (Standby)

  • PoE Power Budget

    720 W

  • PoE per Port

    90 W

  • Power Supply Type

    Internal

Environmental

Jump to...
  • Operating Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Operating Humidity

    90%

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Storage Humidity

    95%

  • Operating Altitude

    10,000' (3048m)

  • Storage Altitude

    10,000' (3048m)

  • Noise Level

    50.5 dB (Active)

General

Jump to...
  • Cooling System

    Fan/Passive Combo

  • Indicator Lights

    Link/Activity/Speed, PoE

  • Rack Form Factor

    1 RU

  • Dimensions

    17.3 x 7.9 x 1.7" (440 x 200 x 43.2mm)

  • Weight

    8.44 lbs (3.83kg)

  • UPC Code

    801813229158

About Marshall Electronics M4250-10G2XF-PoE++

When seeking a high-tech, sophisticated solution for your networking needs, consider the Netgear AV Line M4250-10G2XF-PoE++ 8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch. This advanced managed switch is engineered specifically for 1G AV over IP, featuring rear-facing ports for a seamless integration into AV racks.

This powerful switch comes pre-configured for immediate functionality, reducing the need for extensive engineering time. The innovative AV GUI, a unique, AV-oriented, web-based interface, simplifies configuration by allowing factory or user-specified profiles to be assigned to individual ports as needed.

Designed for use in noise-sensitive environments, the switch features adjustable fans that can be turned off under certain conditions. Even in its default Quiet mode, it operates more silently than most other switches on the market.

The Netgear AV Line M4250-10G2XF-PoE++ managed switch is equipped with the NETGEAR IGMP Plus feature, enabling instant multicast functionality for most AV over IP installations. It supports multiple mounting options, including threaded mounting holes for mounting behind a display or clamping to a truss.

This efficient switch is built for AV Over IP and comes with profiles for common audio protocols, such as Dante, AES67, and AVB audio configurations. It also includes special video profiles for NVX, SVSI, Q-SYS, and Dante, which can be easily assigned to ports as needed.

The switch boasts advanced features like multi-switch audio or single-switch video deployments, 8x1G Ultra90 PoE++ 802.3bt with a 720W PoE budget, 2x1G additional ports, and 2xSFP+ 10G fiber uplinks. It offers Layer 2/Layer 3 Switching and a variety of control methods, including a built-in IT web GUI, console, telnet, and SSH.

With its rackmount versatility, adjustable fan functionality, and universal mounting availability, the Netgear AV Line M4250-10G2XF-PoE++ managed switch is a powerful, efficient solution for your networking needs.

Marshall Electronics M4250-10G2XF-PoE++ Features

  • 8-port 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 720W PoE budget
  • 2-port 10/100/1000BASE-T (RJ45)
  • 2-port 1000/10GBASE-X (SFP+)
  • Compatible 802.3af (15.4W), 802.3at (30W), 802.3bt (60, 75 and 90W)
  • 60 Gbps non-blocking fabric across 12 ports
  • Out-of-band 1G Ethernet management port
  • USB-C and RJ45 RS232 console ports and USB-A storage port
  • Front black display panel and all ports in the back
  • Possible reversed mounting with ports in the front
  • Rack-mounting standard brackets
  • Longer brackets for recessed mounting (2 inches / 5 cm)
  • Threaded hole in front (1xM10) for clamps
  • Threaded holes on the bottom (4xM5) for 50x100mm VESA plates
  • Selectable fan modes for fanless, quiet, or cool operation

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • This managed switch offers 8x1G Ultra90 PoE++ ports, perfect for powering demanding devices.
  • With 2x1G and 2xSFP+ ports, this managed switch provides flexible, high-speed network connections.
  • The 720W PoE budget supports multiple high-power devices, simplifying your network setup easily.
  • Advanced Layer 2/3 features in this managed switch enhance network performance and security protocols.
  • Enjoy a reliable network with a 60 Gbps switching capacity for seamless data transfer and delivery.
  • Compact 1 RU form factor makes this managed switch ideal for rack mounting in space-constrained areas.

What's in the box:

  • Marshall Electronics Netgear AV Line M4250-10G2XF-PoE++ 8x1G Ultra90 PoE++ 802.3bt 720W 2x1G and 2xSFP+ Managed Switch
  • Power Cord
  • Console USB Type-C and RJ45-DB9 Cables
  • 2x Rack-Mounting Standard Brackets and Screws
  • 2x Recessed Mounting Brackets and Screws
  • Rubber Footpads for Tabletop Installation
  • Marshall Electronics Lifetime Limited Warranty
