-100dBu (All outputs, master levels and channel levels off ) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
-90dBu (All outputs, master levels unity, all channel levels off) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
-85dBu (All outputs, master levels unity, 1 channel level unity) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
Mic Input to Main Output: <0.25% at +4dBu output (20Hz-30kHz bandwidth)
Inputs to Outputs at 1kHz: -85dB (20Hz-20kHz bandwidth)
Main Mix Off at 1kHz: -75dB (20Hz-20kHz bandwidth)
Mic input to any output (gain at unity): +0, -1dB, 20Hz to 30kHz
150Ohms termination (Mic in to Insert Send out, max gain.): -125dBu
1kHz (Mic in to Insert Send out, max gain.): better than -70dB
+19dBu
+16dBu
+21dBu
+21dBu
3.8kOhms
10kOhms or greater
1kOhms
22Ohms
120Ohms unbalanced
240Ohms balanced
+/-15dB at 12kHz
+/-15dB at 2.5kHz
+/-15dB at 80Hz
18dB/octave, -3dB at 80Hz
2-pin DC connector
120V AC, 60Hz
18V AC, 600mA
32 to 104 deg. F (0 to 40 deg. C)
2.1 x 7.8 x 9.6" (53.34 x 198.12 x 243.84mm)
2.5 lbs (1.13kg)
192223276154, 192223075498, 663961044904, 192223227576

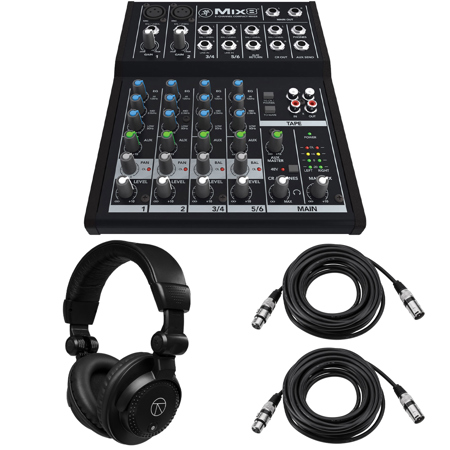

For audio professionals and enthusiasts seeking a compact solution without compromising on sound quality, the Mackie Mix8 8-Channel Compact Mixer stands out as a top choice. Engineered by the world-renowned leader in compact mixer design, this mixer is built to deliver exceptional audio performance with its high-headroom, low-noise preamps, ensuring pristine sound quality from any source.
The Mix8 is not only durable but also boasts a high-quality construction with a rugged metal chassis and premium components, making it a reliable piece of equipment for any setting. Its versatility is unmatched, with a broad frequency response ranging from 20Hz to 30kHz, which caters to a wide spectrum of audio signals for clear and high-fidelity sound reproduction.
This professional-grade mixer is equipped with a variety of input and output options to accommodate a diverse array of audio devices. With 3.8kOhms Mic-In for connecting microphones, 1kOhms Tape Out for recording devices, and 22Ohms Phones Out for monitoring, the Mix8 ensures seamless integration into your audio setup. The inclusion of a 2-Pin DC Connector further enhances its connectivity capabilities.
The Mix8's intuitive design features a multi-band EQ for precise tone shaping, pan and level controls, and overload indication for optimal sound control. Phantom power is available for studio condenser mics, adding to the mixer's professional capabilities. Additionally, one aux send with stereo 1/4" returns, dedicated stereo RCA inputs/outputs, main L/R outputs, a headphone output, and stereo control room outputs round out its comprehensive feature set.
This mixer is not only a steadfast ally in live sound mixing scenarios but also excels in rehearsal spaces, gymnasiums, banquet halls, conference rooms, and boardrooms. Its compact and portable design makes it equally suitable for studio and field recording, multimedia applications, and more.
In summary, the Mackie Mix8 8-Channel Compact Mixer is an amazing value, offering a straightforward feature set that's easy to use, combined with the sound quality and reliability required for professional audio mixing. Whether you're mixing live sound, recording in the studio, or handling audio for multimedia projects, the Mix8 is designed to exceed expectations and last through the rigors of frequent use.
