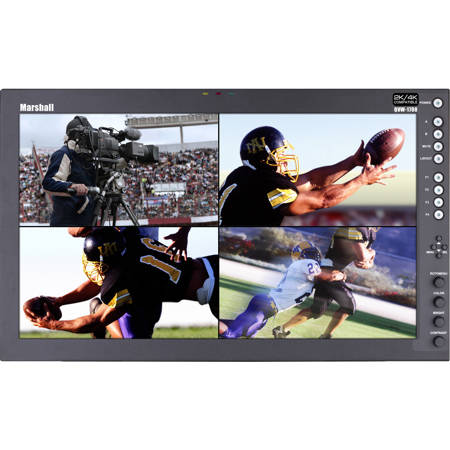

Marshall Electronics QVW-1708-3G 6RU 17" 3G-SDI Quad View LED Desktop Monitor
See all Marshall Electronics items

Marshall Electronics QVW-1708-3G 6RU 17" Full HD 3G-SDI Quad View Rack-Mountable LED Desktop Monitor, 1920x1080 (Supports 4K Input)

SKU: MAQVW17083G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Marshall Electronics Desktop Quad View 17" Native Resolution Monitor, 3G-SDI
$4,411.00
$2,999.99
undefined undefined: Picture 1 regular
Marshall Electronics V-LCD173HR 17.3" Full HD LCD Monitor with Rack Mount
$1,137.90
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the Quad Viewer feature on the QVW-1708-3G monitor?

The Quad Viewer feature allows you to view four separate input sources on the screen simultaneously. Each input source is scaled and positioned in real-time, and there are four layout options, including Full Screen.

What is the maximum input resolution supported by the QVW-1708-3G monitor?

The QVW-1708-3G monitor supports input resolutions up to 4096 x 2160, making it capable of displaying high-resolution 4K video footage.

Can the QVW-1708-3G monitor be mounted in a rack?

Yes, the QVW-1708-3G monitor is designed for easy installation in any standard EIA 19-inch equipment rack. It comes with attached rack ears that can be angled to adjust the viewing angle.

What control options does the QVW-1708-3G monitor offer?

The QVW-1708-3G monitor provides convenient, intuitive front panel controls and also allows for network control via Ethernet. It also supports IMD control via Ethernet or RS-485 serial data.

What are the IMD functions available on the QVW-1708-3G monitor?

The In Monitor Display (IMD) functions on the QVW-1708-3G monitor include area markers, hard tally and soft tally, presence indicators for TC, CC (608/708), Audio, and a bar display for embedded audio and timecode display.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Marshall Electronics QVW-1708-3G Specifications

  • Number of Panels

    1

  • Panel Size

    17.3"

  • Panel: Resolution

    1920 x RGB x 1080

  • Panel: Aspect Ratio

    16:9

  • Panel: Active Area

    381.888 x 214.812 mm

  • Panel: Type

    LCD Panel

  • Panel: Brightness

    400 cd/m2

  • Panel: Contrast

    600:1

  • Panel: Color Gamut

    YUV, RGB

  • Panel: Viewing Angles (CR>=10)

    160 x 160 deg.

  • Panel: Backlight type

    LED

  • Video Formats

    1080p/1080i/720p/625i/525i

  • Loss of Input Curtain

    Yes

  • Color Temperature

    D65, D55 and D93

  • Headphone Jack

    Yes

  • Audio Bars

    Yes

  • IMD Functions

    Yes

  • Tally OSD

    Yes

  • Blue-Only Mode

    Yes

  • Closed Caption

    Yes

  • Pixel to Pixel

    Yes

  • Pre-set Gamma points

    Yes

  • Self-Sensing

    Yes

  • Modular Input Slot

    2

  • Re-clocked/Re-Shaped

    Yes

  • Video Inputs: 4K Formats

    4096 x 2160, 3840 x 2160

  • Video Inputs: HD-SDI

    Yes

  • Video Inputs: 3G-SDI

    Yes

  • Video Inputs: 3GSDI x4

    Yes (With active loop-through)

  • Video Outputs: SD-SDI

    Yes

  • Video Outputs: HD-SDI

    Yes

  • Video Outputs: 3G-SDI

    Yes

  • Tally / GPI

    Tally

  • RS-485/422 with Loop Through

    Yes

  • Ethernet

    Yes

  • Controls on front Panel

    Yes

  • User-Defined Function Buttons

    Yes

  • RotoMenu Control

    Yes

  • Pivot Angle

    Yes

  • Handles/Rack Ears

    Yes

  • Voltage

    12 VDC

  • Consumption

    5 AMP at 12VDC 60W Max

  • Power Switch

    Yes

  • Connecter

    4-Pin XLR

  • Compliance

    CE approved

  • Operating Temperature

    0 to 35 deg. C / 32 to 95 deg. F

  • Storage Temperature

    -10 to 50 deg. C / 14 to 122 deg. F

  • Vesa Mount Pattern

    75mm / 2.95"

  • Dimensions (W x H x D)

    Rack Unit: 17.15 x 10.45 x 1.44" / 435.61 x 265.43 x 36.58mm

  • Weight

    Main Body: 9.35lbs / 4.24kg

2 Accessories for Marshall Electronics QVW-1708-3G 6RU 17" Full HD 3G-SDI Quad View Rack-Mountable LED Desktop Monitor, 1920x1080 (Supports 4K Input)

  • All Accessories (2)
  • Cables & Adapters (2)
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
$11.99
Recommended
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
$29.92

About Marshall Electronics QVW-1708-3G

The QVW-1708-3G is a high-quality, rack-mountable LED desktop monitor from Marshall Electronics' esteemed Quad Viewer series. This innovative monitor is designed to offer exceptional versatility, capable of functioning as a single display supporting inputs up to 4K, or as four separate displays in Quad View mode, each supporting inputs up to 1920 x 1080.

This durable and efficient monitor is equipped with convenient, intuitive front panel controls and network control capabilities, making it a reliable choice for professional video monitoring and production. It features Quad 3GSDI inputs with active loop-through and automatic format detection, ensuring seamless operation in various settings, including broadcast, post-production, and live events.

The QVW-1708-3G is designed for easy installation in any standard EIA 19-inch equipment rack, with attached rack ears that can be angled to adjust the viewing angle. It also features a VESA standard 75mm hole pattern for custom mounting installations.

With a native display resolution of 1920 x 1080 (16 x 9), this monitor accepts input resolutions up to 4096 x 2160, making it capable of displaying high-resolution 4K video footage. It also includes In Monitor Display (IMD) functions, area markers, hard tally and soft tally, and network control via Ethernet.

Additional features include presence indicators for TC, CC (608/708), Audio, a bar display for embedded audio and timecode display, and RS-485 in/out/host ports for daisy-chaining IMD and display functions. The monitor is compatible with CalMAN 5 Calibration Technology and allows IMD control via Ethernet or RS-485 serial data.

The Quad-Viewer feature of the QVW-1708-3G allows simultaneous viewing of 4 inputs on the screen, with each input source scaled and positioned in real-time. Beyond the standard Quad layout, the monitor offers three additional layouts, including Full Screen. This feature-rich, rack-mountable LED desktop monitor is a superior choice for professionals seeking reliable, high-quality video monitoring solutions.

Marshall Electronics QVW-1708-3G Features

  • High-quality, rack-mountable LED desktop monitor from Marshall Electronics' Quad Viewer series
  • Supports single display inputs up to 4K or four separate displays in Quad View mode
  • Equipped with Quad 3GSDI inputs with active loop-through and automatic format detection
  • Features a native display resolution of 1920 x 1080 & accepts input resolutions up to 4096 x 2160
  • Includes In Monitor Display (IMD) functions, area markers, hard tally and soft tally, and network control via Ethernet
  • Quad-Viewer feature allows simultaneous viewing of 4 inputs on the screen, each scaled and positioned in real-time

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with the 17" Marshall monitor's Full HD 1920x1080 resolution.
  • Quad View feature supports 4K input, enhancing your video production monitor workflow.
  • Enjoy versatile connectivity with 3G-SDI inputs/outputs for professional video monitoring.
  • Rack-mountable design fits seamlessly into any studio or broadcast environment setup.
  • Achieve accurate color representation with YUV and RGB color gamut for precise editing.
  • Wide viewing angles (160x160 deg.) on this LED desktop monitor ensure consistent visuals.

What's in the box:

  • Marshall Electronics QVW-1708-3G 6RU 17 " Full HD 3G-SDI Quad View Rack-Mountable LED Desktop Monito
  • V-PS12V-5A-XLR Power Supply
  • Operating Instructions
  • Marshall Electronics 3 Year Limited Warranty (1 Year + 2 Year with Online Registration)
