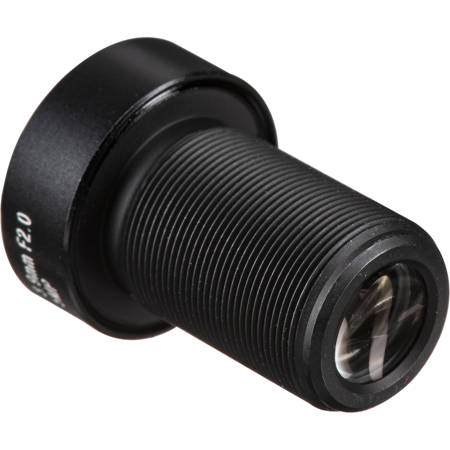

Marshall Electronics V-5500 Series 1/2" 5MP 3.9mm f/2 M12-Mount Visible/IR Corrected Lens

SKU: MAR5539IRM12 MFR: V-553.9-5MP-VIS-IRM12
$54.99
Earn VIP Reward Points

Key Features

  • Capture clear footage with this 3.9mm lens, perfect for detailed surveillance.
  • Enjoy wide compatibility; this M12-Mount lens works seamlessly with many cameras.
  • Get exceptional image quality with our 5MP lens, ensuring every detail is sharp.
  • This visible/IR corrected lens provides excellent performance in varied lighting.
  • Achieve a broad view with a 127.2-degree diagonal field, ideal for large areas.
  • Durable build ensures this lens stands up to regular use for reliable security.
See More Product Details
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$9.49

3 Year

$14.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Marshall Electronics 3.9mm f/2 Specifications

Basic System Parameters

Basic System Parameters

Jump to...
  • Effective Focal Length

    3.9mm +/- 0.1mm

  • Back Focal Length

    Distance from the rear lens: 6.1mm +/- 5%

  • Flange Back Length

    Distance from the rear barrel: 6.0mm +/- 0.3mm

  • Full field of View

    Diagonal FOV: 127.2 deg.
    Horizontal FOV: 96.1 deg.
    Vertical FOV: 70.0 deg.

  • F-number (F/#)

    2 +/- 5% (at, Infinite)

  • Sensor Model Number

    Sony IMX178LQJ (5M 4:3)

  • Sensor Type

    Sensing area 1/2" CMOS

  • Visible & IR Wavelengths

    486.1nm to 656.3nm / 780nm, 850nm

  • M12 Total Track Length

    From front surface to image plane: 30.0mm (1.18")

  • M12 Over All Length

    Lens Assembly Length: 24.1mm (0.95")

  • Barrel Thread / Mount Format

    M12 X P0.5

Lens System

Jump to...
  • Lens Number of Elements

    All Glass: Components 8 elements

  • Coating MgF2

    Element 1 to 8 (SLAR Coating)
    SLR Coated Spec: Reflectivity <1% (400nm to 700nm)

  • Image Circle Error

    Image Circle Diameter: >=8.0mm

  • M12 Out diameter

    Dia. 17.0

Optical Performance

Jump to...
  • Relative Illumination

    At full field angle: 48.6%

  • MTF as a function of line pairs/mm

    At center field: MTF>=0.755 at 100 (LP/mm)
    At full field: MTF(T)>=0.657 at 100 (LP/mm)
    At full field: MTF(S)>=0.694 at 100 (LP/mm)

  • Optical Distortion

    At full field: < -51.0%

General

Jump to...
  • Dimensions (DxHxV)

    Sensor: 7.78 x 6.22 x 4.67mm (0.31 x 0.24 x 0.18")

  • UPC Code

    801813193114

About Marshall Electronics 3.9mm f/2

A high-performance lens, the V-5500 Series 1/2" 5MP 3.9mm f/2 M12-Mount Visible/IR Corrected Lens is designed to deliver superior image quality across a range of applications. With a 3.9mm focal length and Visible - IR Corrected performance, this lens is engineered to provide exceptional clarity in both visible and near-zero light conditions.

The lens features a 5MP 1/2 sensor optical design, ensuring high-resolution image capture for applications such as broadcasting, OEM, machine vision, security, and medical processes. The high-performance MTF of > 70% at the center field and > 63% at the full field ensures sharp, distortion-free images across the entire frame.

Experienced observers have praised the lens for its superior image quality, noting its sharpness right to the corners and minimal visual distortion. The lens is equipped with an M12 Mount, making it compatible with a wide range of camera bodies.

Constructed with high-quality glass optics housed in anodized aluminum, the V-5500 Series 1/2" 5MP 3.9mm f/2 M12-Mount Visible/IR Corrected Lens is not only durable but also ensures optimal light transmission for clear, sharp images. The lens is also RoHS compliant, adhering to the highest standards of environmental safety.

In summary, the V-5500 Series 1/2" 5MP 3.9mm f/2 M12-Mount Visible/IR Corrected Lens is a high-performance lens designed to deliver superior image quality across a range of lighting conditions and applications.

Marshall Electronics 3.9mm f/2 Features

  • High-performance V-5500 Series 1/2" 5MP 3.9mm f/2 M12-Mount Visible/IR Corrected Lens for exceptional image clarity
  • 5MP 1/2 sensor optical design for high-resolution image capture in a range of applications
  • Superior image quality with minimal distortion, praised by experienced observers
  • Compatible with M12 Mount for wide-ranging camera body compatibility
  • Durable construction with high-quality glass optics housed in anodized aluminum
  • RoHS compliant, adhering to the highest standards of environmental safety

Warranty Information

This product has a limited warranty of 12 months.
