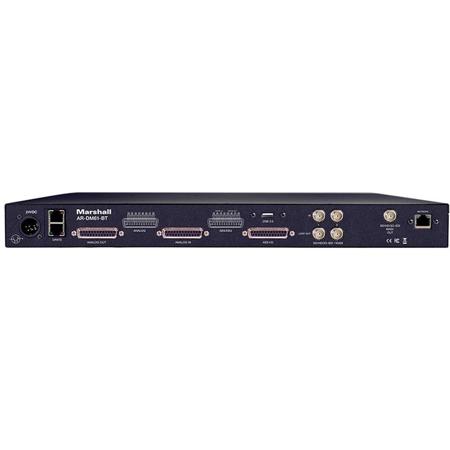

Marshall Electronics AR-DM61-BT-64DT 64-Channel Rackmount Digital Audio Monitor with Built-In Live Video Preview Confidence Screen

Experience versatile audio analysis functions, flexible matrix routing and format conversion tools, and a pair of powerful speakers packed into 1 RU with the new Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor. The AR-DM61-BT is a powerful audio/video QC solution designed specifically for TV stations, broadcast trucks, transfer stations and house of worship facilities.

Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Additional features include support for the latest Dolby formats, Dante networked audio technology and a built-in web server for channel mixes, system settings and updates.

The Marshall AR-DM61 audio monitor rack has an advanced design with the ability to adapt to future needs. Its sonic performance is impressive, exceeding the capabilities of many larger 2RU designs. In addition, the convenient front panel touch screen is the first in the industry capable of providing high resolution 96-step audio metering or 64 channel side-by-side audio bars in the same unit. This breakthrough design removes many limitations found in other products. Built-in support for most common input types. Easy upgrades for Dolby, Dante / AES-67 options.

Features:
Touch Screen Convenience and Flexibility
• Eliminates most mechanical components
• Quickly switch display modes between multi-channel and high-precision
• Layout design not "frozen"

Integrated Video Display
• Provides visual confirmation of selected SDI input
• Displays selected audio channel numbers and video format

High Performance Audio - Punches Above Its Weight
• Matches or exceeds most 2RU designs
• Enough "punch" for the noisiest server rooms

One Model Supports Multiple Input Types
• Two 3G SDI / MADI (auto-detection) Inputs - Standard
• 8 Channels AES / EBU Digital - Standard
• 8 Channels Analog Balanced - Standard
• Up to 64 Dante / AES-67 Channels - Option
• Dolby Decode - Option Plug-in Card

Network Control
• Web Browser Configuration

Compact 1RU Design Saves Rack Space
