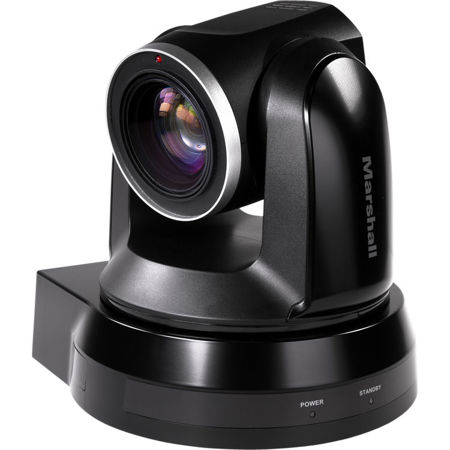

Marshall Electronics CV612HT-4K 9MP 4K UHD HDBaseT HDMI PTZ Camera
See all Marshall Electronics items

Marshall Electronics CV612HT-4K 9MP 4K UHD HDBaseT HDMI PTZ Camera, 12x Optical Zoom, 3840x2160, 25fps, PoE

SKU: MARCV612HT4K

This item is no longer available.

Recommended Alternatives

Marshall Electronics CV605: Picture 1 regular
Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, Black
$885.94$641.25
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the CV612HT-4K 9MP 4K UHD HDBaseT HDMI PTZ Camera?

The camera delivers a high-resolution 4K UHD (3840x2160) output, which ensures exceptional image clarity.

What is the zoom capability of this camera?

The CV612HT-4K PTZ Camera boasts a powerful 12x optical zoom, allowing for flexible shot framing and the ability to capture distant subjects without compromising image quality.

What is the Power over Ethernet (PoE) feature?

The Power over Ethernet (PoE) feature allows the camera to receive both power supply and data transfer through a single Cat5e/6 cable. This simplifies the setup process and reduces cable clutter.

What is the benefit of the built-in HDBaseT HDMI interface?

The built-in HDBaseT HDMI interface allows for long-distance transmission of high-fidelity video and audio signals without degradation, ensuring optimal performance even over extended ranges.

Is the camera compatible with common control systems?

Yes, the camera is compatible with common RS232/RS422 protocols, ensuring seamless integration with most control systems.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Marshall Electronics CV612HT-4K Specifications

  • Sensor

    1/2.3" 9MP CMOS

  • Video Output

    3840 x 2160p at 29.97 / 25 fps
    1920 x 1080p at 59.94 / 50 fps
    1920 x 1080i at 59.94 / 50 fps
    1280 x 720p at 59.94 / 50 fps
    NTSC / PAL

  • Optical Zoom

    12x

  • Clear Image Zoom

    1.67x (4K:20x)
    2.0x (1080P:24x)

  • Digital Zoom

    12x

  • Video Output Interface

    HDBaseT, HDMI simultaneous

  • Horizontal Viewing Angle

    74deg. at widest

  • Panning Angle

    -170deg. to +170deg.

  • Tilting Angle

    -30deg. to +90deg.

  • Preset Positions

    128 savable

  • Panning Speed

    300deg./sec

  • Tilting Speed

    300deg./sec

  • Video S/N Ratio

    > 50dB

  • Shutter Speed

    1/1 to 1/10,000 sec

  • Focal Length

    F = 3.9mm-46.8mm

  • Aperture

    F1.8-F2.0

  • Tally Light

    Yes

  • PoH (PoE over Cat6e)

    Yes (IEEE802.3af)

  • Camera Control Interface

    RS-232/ RS-422

  • Camera Control Protocol

    VISCA, PELCO D

  • Minimum Illumination

    3.0 lux (F1.8, 50 IRE, 30 fps)

  • Minimum Object Distance (MOD)

    10mm (Wide) to 1500 mm (Tele)

  • Gain Control

    Auto, Manual

  • White Balance

    Auto, Indoor, Outdoor, One-Push, Manual

  • Exposure Control

    Auto, Manual

  • Focus System

    Auto, Manual

  • Image Flip / Joystick Flip

    Yes

  • 3D NR

    Yes

  • Applications

    Corporate
    Courtroom
    Education
    Worship
    Healthcare
    Medical
    Government
    Entertainment
    Music and a variety of Broadcast studio work-flows

  • Dimensions (HxW)

    186.8 x 174.0mm (7.35 x 6.85")

  • Weight

    2.0kg (4.41 lbs)

  • UPC Code

    801813184013

About Marshall Electronics CV612HT-4K

Marshall Electronics ProAV PTZ HDBaseT/HDMI Camera is built around a 4K UHD 9 Megapixel 1/2.8-inch sensor with durable and smooth simultaneous Pan-Tilt-Zoom operation. One Cat5e/6 cable will carry PoE, uncompressed 4K(UHD) video and command control to camera. Remote operation and control via RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain and other operational adjustments create tremendous flexibility of use.

Marshall Electronics CV612HT-4K Features

  • 4K & HD: 3840x2160p29.97/25, 1920x1080p59.94/50, 1920x1080i59/50, 1280x720p59/50
  • High Speed: 60, 59.94, 50, 30, 29.97, 25fps (NTSC/PAL)
  • Clear Image Zoom: 1.67x (4K:20x), 2.0x (1080p24x), 12x optical - 12x digital
  • Wide Angle-of-View at 3.9mm - 74deg. Panoramic AOV
  • Pan Range: -170deg. to +170deg., Tilt Range: -30deg. to +90deg.
  • 128 preset locations with variable transition speeds
  • Quiet, smooth, durable PAN-TILT-ZOOM motor allows for quality transitions
  • HDBaseT (uncompressed), HDMI outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Mountable via table/wall/ceiling (ceiling mounts included) with flippable images
  • Compatible with integrated video conferencing systems (VISCA/PELCO)
  • PoE (IEEE802.3af) over HDBaseT (Cat5e/6) - one Cat5e/6 hookup to camera
  • Tally Light on front camera panel

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics CV612HT-4K 9MP 4K UHD HDBaseT HDMI PTZ Camera
  • AC Power Adapter
  • Remote Control
  • RS-422 Connector
  • Metal Plate A
  • Metal Plate B
  • 4x M3 Screws
  • Marshall Electronics 1 Year Limited Warranty
