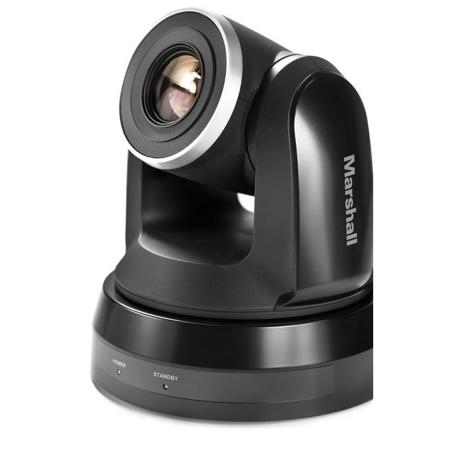

Marshall Electronics CV620 2MP Broadcast Pro AV Full HD PTZ Camera, Black
See all Marshall Electronics items

Marshall Electronics CV620 2MP Broadcast Pro AV Full HD PTZ Camera, 20x Optical Zoom, 1920x1080, 60 fps, Black

SKU: MARCV620BK2
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Marshall Electronics CV605: Picture 1 regular
Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, Black
$885.94$708.75
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Marshall Electronics CV620 Specifications

  • Applications

    Broadcast Multimedia
    Teleconference
    Corporate Boardroom
    House of Worship
    Courtroom
    Healthcare
    Government
    Concert & Studio Music Video

  • Sensor

    2MP 1/2.8" CMOS

  • Resolution

    1080p: 60/59.94/50/30/29.97/25
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25

  • Inputs/Outputs

    3G/HD-SDI: 1x BNC output
    DVI: 1x 24-pin output
    RS-232: 1x 8-pin input, 1x 8-pin output (loop through)
    RS-422: 1x terminal block communication port

  • Lens

    4.7-94mm focal length
    f/1.6 to 3.5 aperture
    20x optical zoom
    12x digital zoom

  • Pan/Tilt

    340 deg. horizontal pan
    120 deg. vertical tilt

  • Power Input

    12 VDC barrel connector

  • Security Lock Support

    Kensington lock port

  • Dimensions

    6.9 x 7.3 x 7.3" (17.53 x 18.54 x 18.54cm)

  • Weight

    4.4 lbs (2.00kg)

  • UPC Code

    801813188882

About Marshall Electronics CV620

Marshall Electronics' Broadcast Pro AV High-Definition PTZ Camera is built around a professional-grade, 2-Megapixel 1/2.8-inch sensor, with a smooth 20x Optical Zoom (4.7~94mm) block. The camera can be controlled remotely via RS-232 over Ethernet cable or RS-422 over twisted pair and uses common protocols to make it compatible with most integrated control systems. It has versatile outputs such as HD-SDI (3G) and HDMI (DVI) and includes a number of broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Black Level and more for tremendous flexibility of use. Applications served include corporate, Pro AV, education, worship, healthcare, medical, government, courtroom, entertainment, music and a variety of broadcast studio workflows.

Marshall Electronics CV620 Features

  • 2 Megapixel 1/2.8-inch HD sensor
  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p
  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
  • 20x Optical Zoom 4.7 to 94mm (F1.6 to 3.5) with 12x Digital
  • Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
  • Quiet, smooth, stable PAN, TILT, ZOOM motor allows for quality transitions
  • Simultaneous 4D Control for Pan, Tilt, Zoom and Focus
  • Variable Transition Speeds: 5 to 300 deg. per second with optional Motionless Transition
  • HD-SDI/3G-SDI (BNC) and DVI video outputs
  • RS232/RS422 Remote Control Interface at High Comm Speeds
  • Mountable via table, wall, ceiling mounts included with flip-able images
  • Compatible with most integrated video management systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Marshall Electronics CV620 2MP Broadcast Pro AV Full HD PTZ Camera
  • Remote Control
  • Power Cord
  • Power Adapter
  • RS-422 Connector (Removable)
  • Metal Installation Plate A
  • Metal Installation Plate B
  • Set of M3 Screws
  • Marshall Electronics 1 Year Warranty
