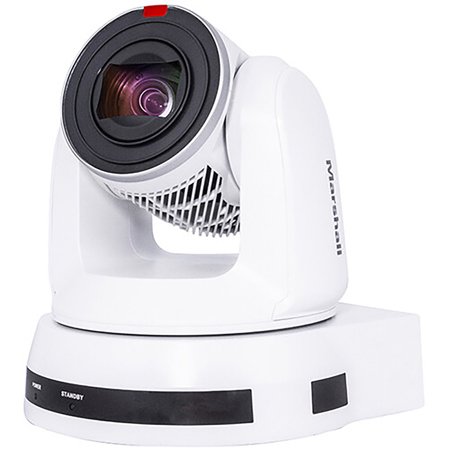

Marshall Electronics CV630-WI 8MP 4K UHD 3G-SDI/HDMI/USB/IP 25x PTZ Camera,White
See all Marshall Electronics items

Marshall Electronics CV630-WI 8MP 4K Ultra HD 3G-SDI/HDMI/USB/IP 25x PTZ Camera, White

SKU: MARCV630WI

This item is no longer available.

Recommended Alternatives

Marshall Electronics CV605: Picture 1 regular
Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, Black
$885.94$641.25
Marshall Electronics CV605-U3: Picture 1 regular
Marshall Electronics CV605-U3 2MP Full HD USB-C/HDMI/IP 5x PTZ Camera, White
$885.94$708.75
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Marshall Electronics CV630-I Specifications

  • Color

    White

  • Sensor

    1/2.5" CMOS, 8MP

  • Video Format

    2160p: 59.94 / 50 / 29.97 / 25
    1080p: 59.94 / 50 / 29.97 / 25
    720p: 59.94 / 50 / 29.97 / 25
    1080i: 59.94 / 50

  • Video Output (HD) Interface

    3G-SDI, HDMI, Ethernet, USB 3.0

  • Optical Zoom

    25x

  • Horizontal Viewing Angle

    68 Degree

  • Aperture

    f/1.6-18

  • Focal Length

    4.8-120.5mm

  • Shutter Speed

    1/1 - 1/10,000 sec

  • Minimum Object Distance

    <= 4.92' (1.5m)

  • Focus System

    Auto, Manual, Smart AF

  • Gain Control

    Auto, manual

  • White Balance

    Auto, manual

  • Exposure Control

    Auto, manual

  • WDR

    Yes

  • 3D NR

    Yes

  • Image Flip

    Yes

  • Preset Positions

    256

  • Control Interface

    RS-232 / RS-422 / Ethernet / USB 3.0

  • Control Protocol

    VISCA / VISCA IP / PELCO D / ONVIF / UVC / CGI

  • Tally Light

    Yes

  • IP Protocol

    RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X

  • IP Streaming Output

    Main: HEVC up to 2160p 59.94/50fps
    Second: H.264 up to 1080p 59.94/50fps
    Third: H.264 640x360 29.97fps
    Webpage Preview: 640x360 15fps

  • PoE

    PoE+ (IEEE802.3at)

  • Video Compression

    H.265/H.264/MJPEG

  • Audio Input

    Line In/MIC In, 1x Phone Jack 3.5mm

  • Audio Output

    Ethernet / 3G-SDI / HDMI / USB 3.0

  • IR Receiver

    Yes

  • IR Remote Control

    Yes

  • Power Consumption

    PoE: 18W, DC In : 16W

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Dimensions

    6.85 x 7.32 x 7.48" (174 x 186 x 190mm)

  • Weight

    4.18 lbs (1.9kg)

  • UPC Code

    801813232103

About Marshall Electronics CV630-I

The Marshall CV630-WI Camera capture a crisp UHD video combined with smooth PTZ camera positioning and 25X optical zoom for a versatile networked video solution.

High Performance Video Output
At its core, the CV630-WI packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i.

Versatile Camera Positioning
The CV630-WI is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options
The CV630-WI offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-WI is compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.

Applications
The CV630 cameras are suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications.

Marshall Electronics CV630-I Features

  • 8MP 1/2.5" sensor
  • 25x Optical Zoom (4.6-120.5mm) near 68-degrees AOV at widest
  • 3G-SDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i resolution
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340 Degree pan, 120 Degree tilt, and 25X zoom range
  • Front tally light
  • Free-D protocol support and CGI protocol commands

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture stunning visuals with the Marshall CV630-WI's 8MP 4K Ultra HD resolution.
  • Experience versatile connectivity with 3G-SDI, HDMI, USB, and IP outputs on this PTZ camera.
  • Achieve smooth, precise shots with the 25x optical zoom, perfect for live events and broadcasts.
  • Remotely control pan, tilt, and zoom functions for dynamic video production setups effortlessly.
  • Enjoy flexible control via RS-232, RS-422, Ethernet, or USB 3.0 for seamless integration.
  • Streamline your workflow with multiple IP protocols, including RTSP, RTMP, and SRT support.

What's in the box:

  • Marshall Electronics CV630-WI 8MP 4K Ultra HD 3G-SDI/HDMI/USB/IP 25x PTZ Camera (White)
  • Remote Control
  • AC Power Cord
  • Power Adapter
  • RS-422 Connector
  • Metal Plate A
  • Metal Plate B
  • 8x Silver M3 Screw
  • 2x Black M3 Screw
  • Marshall Electronics 3 Year Limited Warranty
