Marshall Electronics ML-702-V2 Dual 7" FHD 3RU Broadcast Monitor, HDMI & 3G-SDI
See all Marshall Electronics items

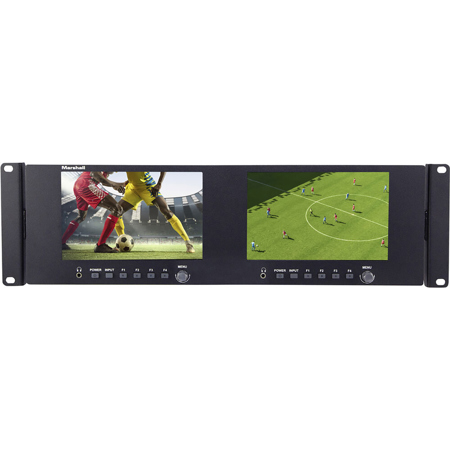

Marshall Electronics ML-702-V2 Dual 7" Full HD 3RU Broadcast Monitor, Supports HDMI & 3G-SDI, Black

SKU: MARML702V2

This item is no longer available.

Recommended Alternatives

Marshall Electronics QVW-1708: Picture 1 regular
Marshall Electronics Desktop Quad View 17" Native Resolution Monitor, 3G-SDI
$4,411.00$2,999.99
Marshall Electronics : Picture 1 regular
Marshall Electronics 15.1" Rack Mountable NTSC System Video Monitor
$2,699.00$2,239.95
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Marshall Electronics ML-702-V2 Specifications

  • Number of Panels

    2

  • Panel Size

    Dual 7" (17.78cm) Diagonal, 3RU high

  • Resolution (Pixels)

    1920 x 1200

  • Aspect Ratio

    16:10

  • Viewing Angle (H/V)

    160 Degree / 160 Degree

  • Brightness

    420 cd/sq. m

  • Contrast Ratio

    1200:1

  • Digital Video Inputs

    3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M), HDMI 2.0 with loop out

  • Analog Video Inputs

    CVBS (Composite) with loop out (RCA-type), Analog Stereo Audio (RCA-type)

  • Compatible Input Formats

    SDI / HDSI / 3G-SDI:
    525i 59.94 / 625i 50
    720p 24, 25, 29.97, 30, 50, 59.94, 60
    1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60

    HDMI:
    480i, 480p 59.94 / 576i, 576p 50
    720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60
    1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    3840/4096 23.98, 24, 25, 29.97, 30p

    CVBS:
    480i 59.94 / 576i 50

  • Control Inputs

    RJ-45 for Ethernet Control, 9-pin D-Sub for GPI Tally Control, Mini USB Service Port

  • Power

    12 Volts DC @ 1.6 Amps (12-24VDC range) via XLR 4-pin or 0.22 x 0.08" (5.5 x 2.1mm) push-in coaxial jack

  • Dimensions (W x H x D)

    19 x 5.26 x 2.1" (48.26 x 13.36 x 5.33cm)

  • Weight

    5 lbs (2.27kg)

  • UPC Code

    801813234022

About Marshall Electronics ML-702-V2

The ML-702-V2 is a Dual 7" 3RU LCD professional broadcast monitor with a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms, and countless other video system applications. Looping video inputs set this product apart from similar-looking products. Standard power and tally connections and a logical menu structure make this display an easy choice for flexible system designs.

Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.

Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.

Marshall Electronics ML-702-V2 Features

  • Dual 7" with 1920 x 1200 resolution, typical brightness 420 cd/sq. m and contrast 1200:1
  • Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
  • SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30
  • Two bar audio overlay
  • Compact size
  • Tilting rack mount
  • Dual power inputs
  • Front panel control plus Ethernet control
  • Bright displays with very good viewing angle
  • Four User-defined function buttons
  • Front panel headphone jacks
  • On-screen Tally borders
  • Histogram, marker, focus peaking and more

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with the Marshall Full HD broadcast monitor's 1920x1200 resolution.
  • Dual 7" LCD screens offer extensive monitoring, perfect for broadcast and production setups.
  • Supports HDMI and 3G-SDI inputs, ensuring compatibility with a wide range of video sources.
  • The ML-702-V2 broadcast monitor features a compact 3RU design, ideal for rack mounting.
  • Enjoy accurate color reproduction with a 1200:1 contrast ratio for critical viewing tasks.
  • Utilize comprehensive tally control via GPI for seamless integration in live production environments.

What's in the box:

  • Marshall Electronics ML-702-V2 Dual 7" Full HD 3RU Broadcast Monitor (Black)
  • Power Adapter
  • Adapts 15-Pin Tally Connector to Solderless Terminal Block
  • Marshall Electronics 1 Year Limited Warranty
