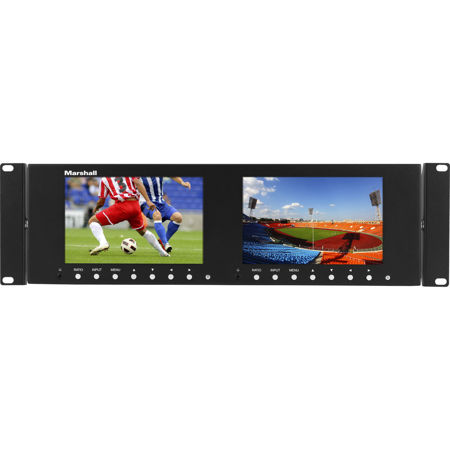

Marshall Electronics M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display
See all Marshall Electronics items

Marshall Electronics M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display

SKU: MARMLYN702V3
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display stand out from similar products?

The M-LYNX-702 V.3 stands out with its dual looping video inputs, high resolution of 1280x800, and logical menu structure. It provides enhanced flexibility and connectivity compared to similar products that may limit you to a single SDI connector.

What kind of settings is the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display suitable for?

This high-quality display is ideal for diverse professional settings such as fly-packs, control rooms, routing rooms, studios, and live events.

Who is the manufacturer of the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display?

The M-LYNX-702 V.3 is manufactured by Marshall Electronics, a reputable brand in the professional audio and video industry.

What is the screen size and resolution of the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display?

The M-LYNX-702 V.3 features a 7-inch screen size and boasts a high resolution of 1280x800, delivering clear and detailed images.

What kind of connections does the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display have?

The M-LYNX-702 V.3 is equipped with standard power and tally connections, offering enhanced usability and flexibility.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Marshall Electronics M-LYNX-702 V.3 Specifications

  • Number of Panels

    2

  • Panel Size

    7" rack mount, 3RU High

  • Resolution

    1280x800 (Pixels)

  • Aspect Ratio

    16:10

  • Active Area (WxV)

    149.26 x 93.6mm (5.88 x 3.69")

  • Backlight

    LED

  • Viewing Angle

    178 deg.

  • Brightness

    250cd/m2

  • Contrast Ratio

    800:1

  • Digital Video Inputs

    1x 3GSDI (conforms to SMPTE-292M, 259M, 424M)
    1x HDMI (with loop-out)

  • Compatible Input Formats

    SDI / HDSDI:
    SDI input formats
    SD: 480i 59.94 / 576i 50
    HD: 720p 25, 29.97, 30, 50, 59.94, 60 / 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30/ 1080i 50, 59.94, 60
    3G-Level A: 1080p 50, 59.94, 60

    HDMI input formats
    SD: 480i 59.94/480p 59.94/576i 50/576p 50
    HD: 720p 25, 29.97, 30, 50, 59.94, 60
    1080i 50, 59.94, 60

  • Compliance

    FCC-Class A, CE, RoHS

  • Audio Inputs

    Accepts HDMI and SDI embedded audio

  • Audio Outputs

    Front panel 3.5mm stereo headphone jack

  • Control Inputs

    Ethernet remote control port
    Tally 9-pin D-Sub port for GPI input
    Mini USB Service Port

  • Power Consumption

    11 to 17 volts DC, 12-volts typical via 5.5mm jack or 4-pin XLR

  • Dimensions (WxHxD)

    19 x 5.2 x 1" (482.60 x 132.08 x 25.40mm)

  • Weight

    4 lbs (1.81kg) (Approx.)

About Marshall Electronics M-LYNX-702 V.3

Bring your professional video system applications to life with the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display. This high-quality, durable display is an efficient and reliable solution for diverse settings such as fly-packs, control rooms, routing rooms, and live events.

Uniquely designed with dual looping video inputs, the M-LYNX-702 V.3 stands out from similar products in the market. Unlike competitor models that limit you to a single SDI connector, this rackmount LED display offers enhanced flexibility and connectivity.

Boasting a high resolution of 1280x800, this user-friendly display delivers clear, detailed images, ensuring an optimal viewing experience. The 7-inch screen size is perfect for displaying high-quality video or images, making it an indispensable tool in any professional setting.

The M-LYNX-702 V.3 is equipped with standard power and tally connections, further enhancing its usability. Its logical menu structure simplifies operation, making it an easy choice for flexible system designs.

Crafted by Marshall Electronics, a reputable brand in the professional audio and video industry, the M-LYNX-702 V.3 Dual 7" 1280x800 Rackmount LED Display is a testament to superior craftsmanship and innovative design. Experience the difference with this efficient, reliable, and high-quality rackmount LED display.

Marshall Electronics M-LYNX-702 V.3 Features

  • High resolution 1280 x 800, bright, colorful display with no-compromise input selections for each screen
  • Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)
  • Special features: Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, View individual colors
  • Audio de-embedding and monitoring via front panel headphone jacks
  • Red, Green, Yellow in-screen Tally borders
  • Slim design and 3RU size
  • Power via 4-pin XLR jack or use included 12-volt universal supply
  • Selectable English and Spanish on-screen displays

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-resolution 7" rackmount LED display ideal for professional video system applications
  • Dual looping video inputs for enhanced flexibility and connectivity
  • Delivers clear, detailed images with a resolution of 1280x800
  • User-friendly design with standard power and tally connections
  • Logical menu structure for easy operation and flexible system design
  • Manufactured by Marshall Electronics, a trusted brand in the professional audio and video industry

What's in the box:

  • Marshall Electronics M-LYNX-702 V.3 Dual 7 " 1280x800 Rackmount LED Display
  • Universal AC Power Adapter
  • Power Cord
  • Marshall Electronics 2 Year Limited Warranty (1 Year + 1 Year with Registration)
