Marshall Electronics Dual 7" Rackmountable Monitor with HDMI

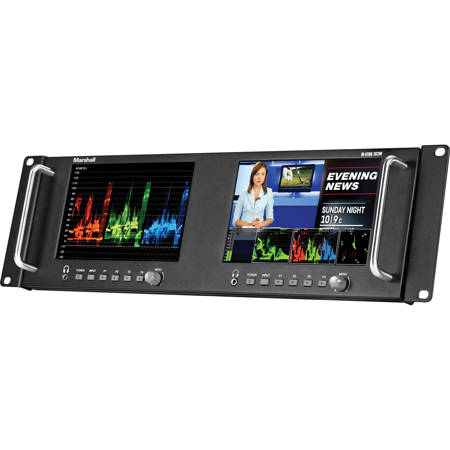

Marshall Electronics once again blends innovation with practicality with the new M-LYNX-702W Dual 7" High Resolution Waveform Rack Mount Display. The new monitor offers analog and digital inputs to suit multiple broadcast environments, plus Marshall's user-friendly waveform feature to monitor luminance and exposure. Marshall Director of Sales and Marketing Devan Cress says, The M-LYNX-702, their original LYNX dual 7" display, filled a need in the broadcast industry for multiple inputs and intuitive design. Building on consumer feedback, they have developed the M-LYNX-702W with waveform to offer professionals more control over the image.

The M-LYNX-702W provides the functionality of a go-to utility monitor and the advanced features of a high end reference monitor in one economical unit." The M-LYNX-702W was designed with the user in mind. It features both HDMI and 3GSDI (auto selects HDSDI/SDI) with loop-through inputs. Analog inputs include component and composite, also with loop-through. Having digital and analog inputs for each screen provides superior flexibility. The M-LYNX-702W offers direct access to all functions through professional front panel controls. Standard power and tally connections as well as a logical menu structure make this display an easy choice for custom system designs. 2 The M-LYNX-702W has two 7" monitors, 3RU high, each with 16:9 aspect ratio, a screen resolution of 1280x800 and a viewing angle of 150 degrees.

The monitors come complete with audio de-embedding and monitoring via front panel headphone jacks and built-in LED tally indicators (Red, Green, Yellow). Special features include: waveform, vector, selectable markers, 1:1 pixel mapping, over scan and H/V delay modes, P-P and ability to view individual colors. The new M-LYNX-702W meets professionals' current and future needs with remote operation via an RJ-45 Ethernet port.
