Marshall Electronics V-LCD173HR Specifications

Connectors

Connectors

Jump to...
  • Inputs

    SDI BNC x 1 with Loop Out
    HDMI x 1 with Loop Out
    Composite BNC x 1 with Loop Out
    Audio L/R RCA x 2 Line Level
    Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth
    USB 3.0 USB-A x 1 (Firmware Updates)
    XLR-12V 4 pin x 1

  • Outputs

    3.5 mm Front Panel Stereo Headphone Jack

Panel Information

Jump to...
  • Native Resolution

    1920 x 1080 pixels

  • Contrast Ratio

    700:1

  • Luminance

    300 nits

  • Display colors

    16 million colors

  • Viewing Angle

    178-degrees H & V

Supported Formats/Frame Rates

Jump to...
  • Composite Input

    NTSC
    PAL

  • SD-SDI Input

    480i 59.94Hz
    576i 50Hz

  • HD-SDI

    720p 25, 29.97, 30, 50, 59.94, 60 Hz
    1080i 50, 59.94, 60 Hz
    1080psf 23.98, 24.00 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

  • 3G-SDI Level A

    1080p 50, 59.94, 60 Hz
    10800i 50, 59, 60 Hz
    1080psf 23, 24, 25, 29.97, 30 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

  • SD - HDMI

    480i 59.94, 60 Hz
    576i 50 Hz
    480p 59.94, 60 Hz
    576p 50Hz

  • HD - HDMI

    720p 25, 29.97, 30, 50, 59.94, 60 Hz
    1080i 50, 59.94, 60 Hz
    1080psf 23.98, 24 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

General

Jump to...
  • Role of Usage

    17.3" LCD Monitor

  • Application

    Broadcast, live streaming, production, cinema, film, control rooms, field monitors

  • Hardware

    Back Panel Supports VESA 100x100mm and 75x75mm mounting systems

  • Dimension (D x L x W)

    1.29 x 17.7 x 10.5" (3.28 x 45 x 26.7cm)

  • Weight

    7.9 lbs (3.6kg)

  • UPC Code

    801813182378

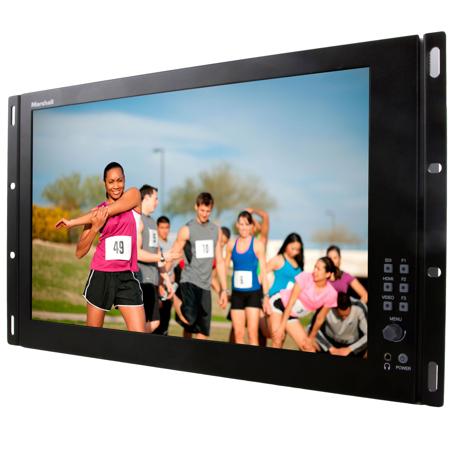

About Marshall Electronics V-LCD173HR

Explore the world of high-definition visuals with the Marshall V-LCD173HR 17.3" Full HD Professional LCD Monitor with Rack Mount. Boasting a native resolution of 1920 x 1080, this innovative monitor delivers clear, detailed images that enhance your viewing experience.

Designed for professionals, this high-quality LCD monitor comes equipped with a plethora of advanced adjustment settings. From broadcasting to post-production and live events, the V-LCD173HR is a reliable choice for all your professional needs.

The monitor features convenient HDMI and HDSDI inputs and outputs, allowing for seamless connectivity with your other devices. With built-in histogram, peaking, false color, and exposure features, this monitor ensures accurate color representation and image quality.

The V-LCD173HR also includes adjustable safety markers, enhancing your ability to monitor and adjust your visuals as needed. Additionally, this monitor can monitor up to two audio channels, providing a comprehensive audio-visual solution for your professional setup.

One of the standout features of the V-LCD173HR is its versatile 6RU frame. This durable frame can be rack-mounted or used on a desktop, offering flexibility in installation and use. Plus, the monitor has the capability to convert between HDMI and SDI signals, further enhancing its versatility.

In summary, the Marshall V-LCD173HR 17.3" Full HD Professional LCD Monitor with Rack Mount is a high-quality, professional, and reliable choice for those seeking a superior visual experience. Its innovative features and durable design make it a valuable addition to any professional setup.

Marshall Electronics V-LCD173HR Features

  • Rec 709 compliant
  • LED Tally lights
  • HDMI/HDSDI inputs and outputs with conversion ability
  • Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
  • Rack ears or VESA mount options
  • BNC connectors
  • Two-channel audio monitoring
  • Image flip ability
  • Headphone jack

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior clarity with this 17.3" Full HD professional LCD monitor.
  • Achieve accurate colors with the V-LCD173HR, perfect for broadcast and film use.
  • Enjoy versatile connectivity with HDMI, SDI, and composite inputs and loop outs.
  • Easily mount this production monitor with its VESA 100x100mm and 75x75mm support.
  • Use this monitor in control rooms or for live streaming with tally connector.
  • Get pristine image quality with a 1920 x 1080 native resolution display.

What's in the box:

  • V-LCD173HR 17.3 " Full HD Professional LCD Monitor
  • 2x Rack Ears
  • DC Adapter
  • TALLY Connector
  • Marshall Electronics 1 Year Limited Warranty
