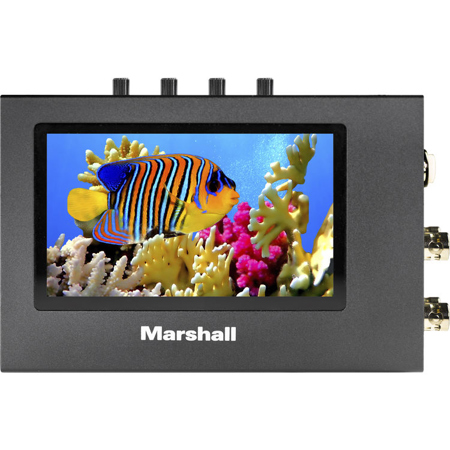

Marshall Electronics 4.3" Color TFT LCD Monitor with Dual Composite Video Inputs and Active Loop-Through

SKU: MARVLCD43PR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the LCD4.3-PRO-R monitor?

The LCD4.3-PRO-R monitor features a high-resolution, high-brightness LCD panel that delivers broadcast-quality images for both color and black and white video applications.

Can I connect multiple video sources to the LCD4.3-PRO-R?

Yes, the LCD4.3-PRO-R monitor has dual composite video inputs with NTSC/PAL auto recognition, allowing you to connect two video sources simultaneously.

What is the weight and thickness of the LCD4.3-PRO-R monitor?

The LCD4.3-PRO-R monitor is lightweight and slim, weighing just 0.8 lb and measuring 1.8" in thickness, making it ideal for both mobile and fixed monitoring applications.

What is the purpose of the active video loop-through in the LCD4.3-PRO-R monitor?

The active video loop-through in the LCD4.3-PRO-R monitor uses professional-grade BNC connectors to ensure a stable and high-quality video signal.

Is the LCD4.3-PRO-R monitor easy to install?

Yes, the LCD4.3-PRO-R monitor is equipped with a 1/4" mount on the case bottom, making it easy to set up in various environments.

Shopper : Why Did You Choose This?WALTER J : Replacement

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Marshall Electronics V-LCD4.3-PRO-R Specifications

  • Inputs

    Dual Composite Video Inputs

  • Display (Viewing Area)

    4.3" Active Matrix LCD

  • Resolution (Pixels)

    480 x 3 RGB x 272

  • Brightness

    500 cd/m2

  • Contrast

    500

  • Viewing Angles [CR>=10]

    70/70/50/70 [L/R/T/B]

  • Backlight Life

    20,000 hrs

  • Operating Temp

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Storage Temp

    -30 to 60 deg. C (-22 to 140 deg. F)

  • System

    NTSC/PAL Auto Detect

  • Power Consumption

    12VDC, 350mA

  • Dimensions (WxHxD)

    5.51 x 3.62 x 1.81" (14.00 x 9.19 x 4.60cm)

  • Weight

    0.8 lbs (0.36kg)

  • UPC Code

    801813182002

About Marshall Electronics V-LCD4.3-PRO-R

Take your video monitoring to the next level with the LCD4.3-PRO-R, a high-quality 4.3" TFT LCD monitor, designed to deliver broadcast-quality images for both color and black and white video applications. This stylish and reliable monitor features a new high-resolution, high-brightness LCD panel that ensures a superior quality picture, even under diverse lighting conditions.

Crafted from durable black anodized aluminum, the monitor's case is designed to withstand the rigors of both mobile and fixed monitoring applications. A protective anti-glare glass in front of the LCD panel safeguards your screen while enhancing visibility. With its slim 1.8" profile and lightweight 0.8 lb design, this monitor is as portable as it is practical.

The LCD4.3-PRO-R stands out with its dual composite video inputs, complete with NTSC/PAL auto recognition. This feature allows you to connect two video sources simultaneously, offering more flexibility and viewing options. The built-in active video loop-through uses professional-grade BNC connectors, ensuring a stable and high-quality video signal.

Additionally, the monitor is equipped with a 1/4" mount on the case bottom, making it easy to set up in various environments. As a product of Marshall Electronics, a leader in professional audio and video equipment, the LCD4.3-PRO-R is RoHS compliant, reflecting our commitment to environmental responsibility. Experience the difference of superior video monitoring with this user-friendly, durable TFT LCD monitor.

Marshall Electronics V-LCD4.3-PRO-R Features

  • Heavy Duty compact metal cabinet with black anodize finish, 1/4" mount for ease of installation
  • Switchable dual video BNC inputs
  • Color, tint, contrast, brightness controls
  • Active Loop-Through for both Video Inputs
  • Fast response - no streaking
  • NTSC/PAL auto recognition
  • RoHS compliant

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience vivid clarity on the 4.3" LCD monitor with a sharp 480x272 resolution.
  • Enjoy accurate colors and clear video with dual composite inputs & active loop-through.
  • This production monitor offers reliable performance in temperatures from -4 to 122°F.
  • The Marshall Electronics monitor's compact size fits seamlessly into any production setup.
  • Benefit from a bright 500 cd/m2 display, ensuring clear visibility in various lighting.
  • This TFT LCD monitor has a backlight life of 20,000 hours, providing long-term reliability.
