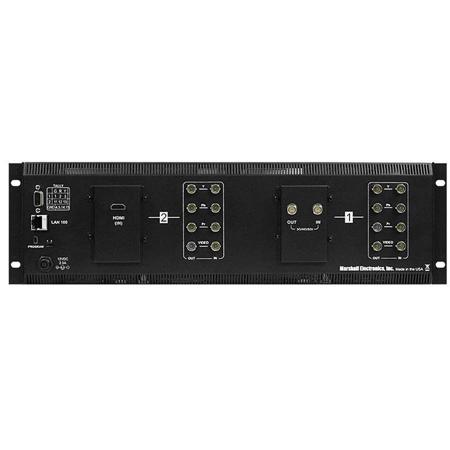

Marshall Electronics V-MD702 Dual 7" LCD Rack Mount Monitor with Modular Input and Output

The Marshall Electronics V-MD702 Dual High Resolution LCD Rack Mount Monitor (7"), with 2 LED-backlit LCDs and modular input and output, delivers high quality images at a resolution of up to 800 x 480. It offers a contrast ratio of 600:1, a brightness rating of 450 cd/m2 and a wide viewing angle of 85 x 85Deg. (h X V) that allows you to view the images clearly even from room corners or when the display is mounted at a height.

Featured freeze function enables you to bring an image to a still position. The V-MD702 LCD Monitor has an aspect ratio of 16:9 and can automatically adapt to the input resolution of the incoming video signal. The distance between the dots of the same color inside the display screen is described with the help of 0.1905 x 0.1905 mm pixel pitch. With RGB bias and gain function, the LCD monitor allows for fine tuning of color balance levels and facilitates color matching with other types of monitors. The false color filter function allows you to set the correct camera exposure levels.

Equipped with pixel-to-pixel mode, the LCD monitor displays images in their native resolution by avoiding the monitor's internal scaling function. The check field mode allows you to analyze the individual color components of a picture. The monochrome mode displays only grayscale image by disabling all colors and in blue, green and red check field modes only the selected color is displayed.

With marker settings, you can control all on-screen markers and this is also applicable for center marker, full screen markers, 16:9 markers and 4:3 markers. Featured mosquito filter removes mosquito noise (distortion that appears near crisp edges of objects) that arises due to compression of video. The ratio settings allows for switching between full screen, 4:3 and 16:3 aspect ratios. The Blue only feature switches red and green scan guns to produce an image made only from a blue scan gun.

The V-MD702 Dual High Resolution LCD Rack Mount Monitor incorporates user-programmable F1, F2, F3 and F4 to assign various functions like ratio, check field, mosquito filter, false colors, freeze input, aspect markers, center marker, marker enable, pixel-to-pixel as required. It features an Ethernet port on the back to provide complete access to all the settings.
