Marshall Electronics V-R185-IMD-3GTE 18.5" Rack Mount LCD Monitor with 3G-SDI and IMD, 1366x768 Resolution, On-Screen Audio Presence Indicator

The Marshall V-R185-IMD-3GTE 18.5" Rack Mount LCD Monitor with 3G-SDI and IMD features on-screen tri-color tally displays, eliminating the need for external displays. Also on-screen are an audio presence indicator and video time code, both detected from SDI auxiliary data stream. Moreover, tri-color hard tally LEDs are available and can be controlled via the RS-422 / 485 ports or DB-15 connector. The monitor easily integrates with existing tally systems and controllers, including Image Video, NVISION, TSL and MEI protocols.

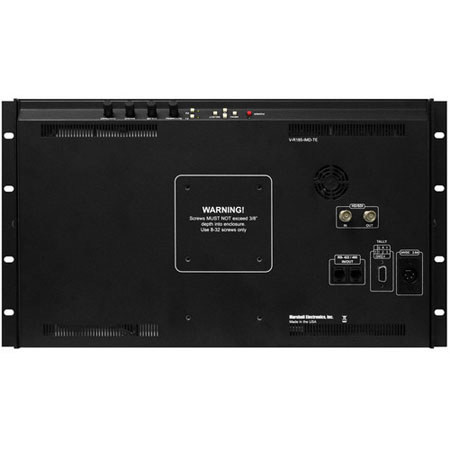

Connections include a 3G/HD-SDI input and output. Rack size is 6RU. The monitor comes equipped with removable rack ears and ships ready to rack mount, but it can also be wall or ceiling-mounted with an optional VESA adapter (the viewing angle is ultra wide 178deg.).
